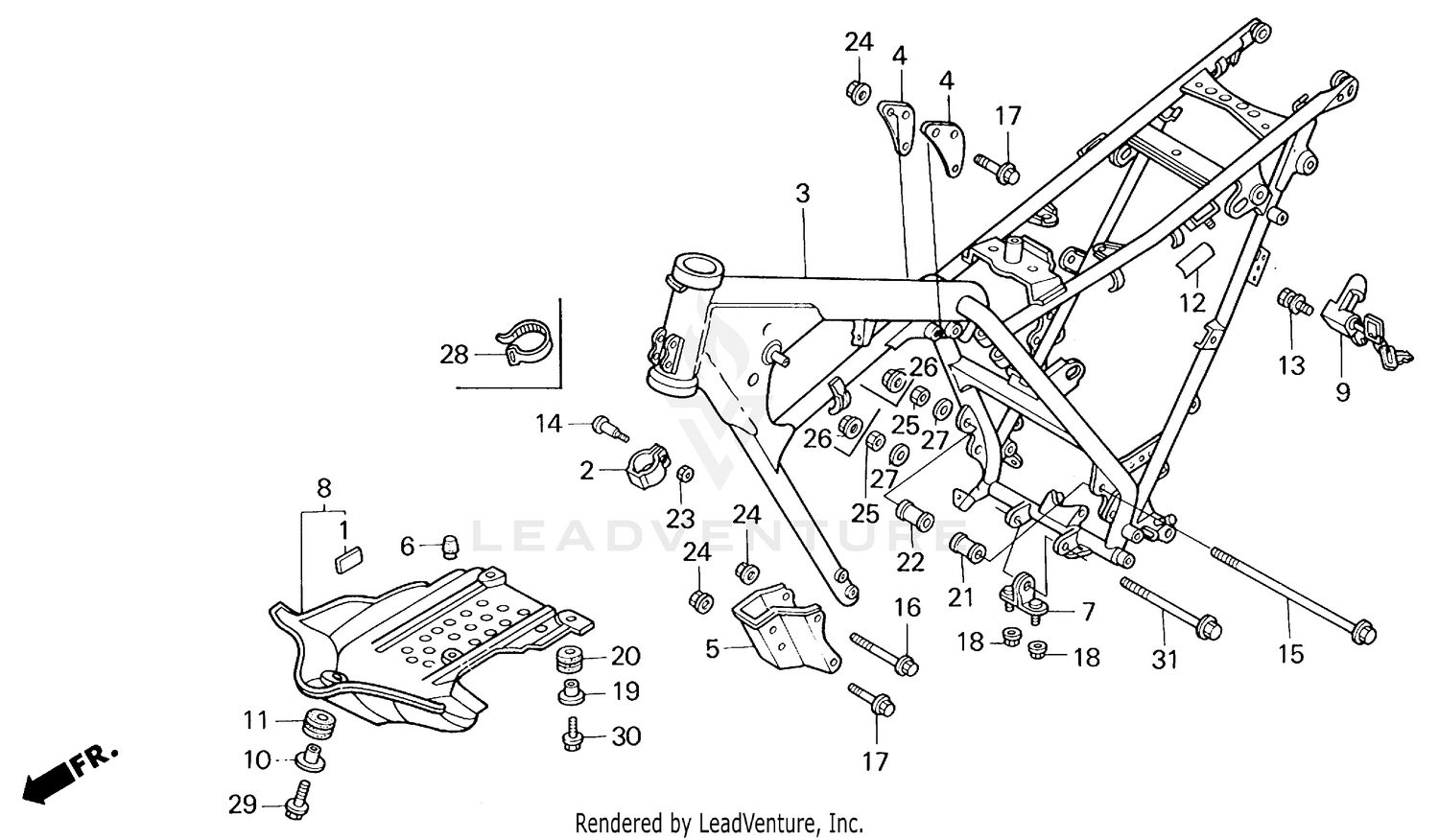

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
CLAMP, CLUTCH CABLE
22878-KW8-900
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
FRAME *NH42MCBR* (CUSTOM SILVER)
50100-KY7-910ZA
Superseded by 50100-KY7-911ZA
|
$961.34 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, ENGINE HANGER (UPPER) *NH42MCBR* (CUSTOM SILVER)
50138-KY7-000ZC
|
$10.31 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, FR. ENGINE HANGER *NH42MCBR* (CUSTOM SILVER)
50351-KY7-000ZC
|
$65.67 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, ENGINE HANGER
50354-KW8-901
Superseded by 50354-KW8-900
|
$8.94 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, SKID *NH196* (ROSS WHITE)
50355-KW8-900ZB
|
$100.48 | ||
|
Available to order. Add to View Price |
|||
|
#12
LABEL, COLOR (NH196) (TYPE1) (NOT AVAILABLE)
87565-KY7-910ZA
|
$2.23 | ||
|
Unavailable |
|||
|
#14
SCREW, HANDLE LEVER PIVOT (SOURCE: VINTAGE PARTS INC.)
90113-GE8-000
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEX. (10X215)
90109-KW8-900
Superseded by 90109-KE1-000
|
$17.64 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, FLANGE (8MM)
90309-KF0-003
Superseded by 90309-428-731
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
NUT, FLANGE (M8X1.25) (SELF-LOCK)
90309-428-731
|
$4.20 | ||
|
Unavailable |
|||
|
#21
COLLAR, L. ENGINE DISTANCE
90742-KW8-900
|
$13.80 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR, R. ENGINE DISTANCE
90743-KW8-900
|
$13.80 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, HEX. (5MM)
94001-05000-0S
|
$2.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
NUT, HEX. (10MM)
94030-10200
|
$1.11 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLAIN (10MM)
94101-10000
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (10X115) BOLT, FLANGE (10X117)
95701-10115-00
|
$3.01 | ||
|
Unavailable |
|||
