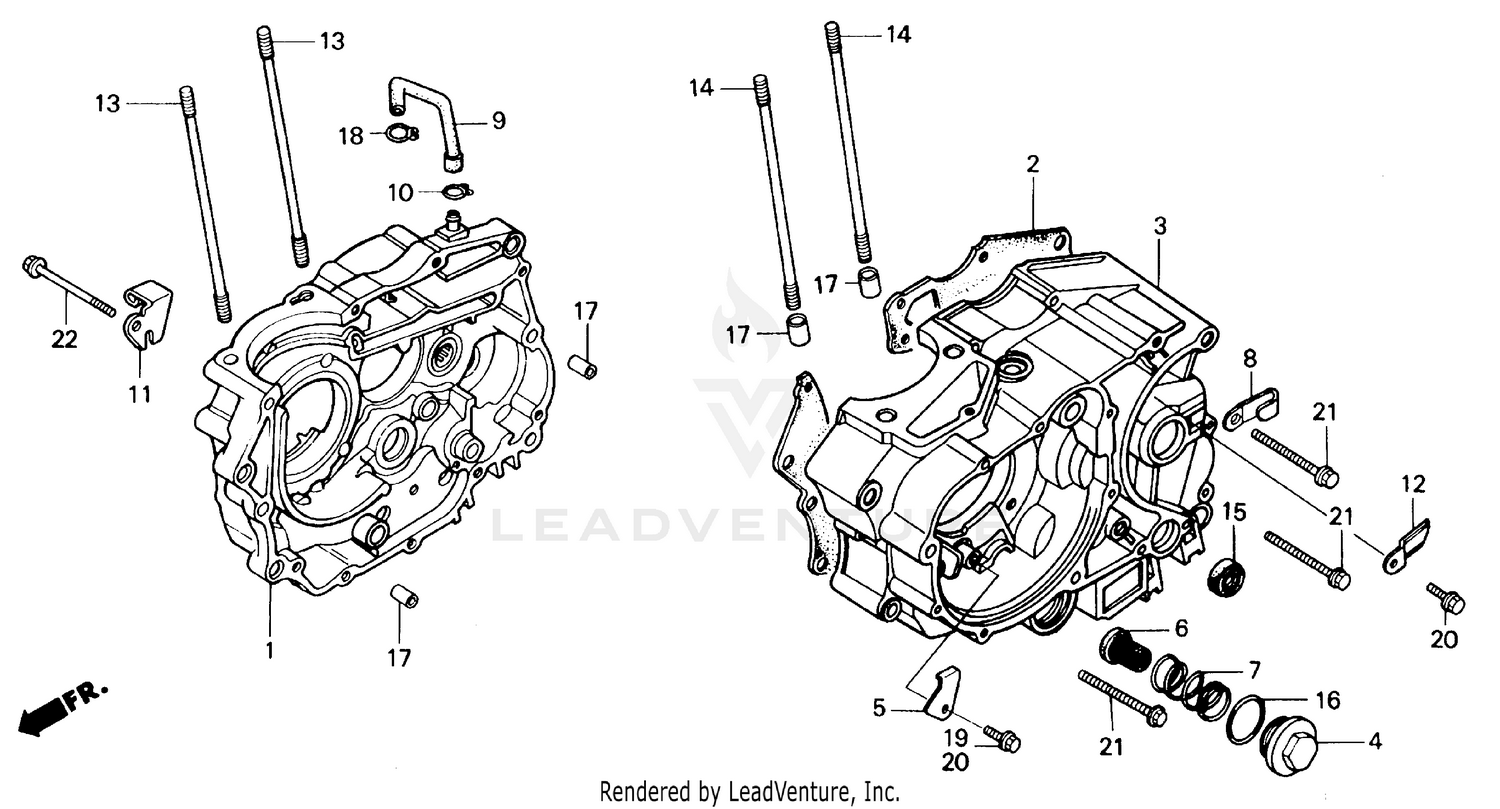

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE, R.
11100-KW8-901
Superseded by 11100-KW8-902
|
$280.28 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CRANKCASE
11191-KK3-831
Superseded by 11191-KK3-405
|
$11.65 | ||
|
Unavailable |
|||
|
#3
CRANKCASE, L.
11200-KW8-901
Superseded by 11200-KW8-902
|
$249.42 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP, WIRE
15527-166-000
Superseded by 91406-166-000
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP, WIRE
91406-166-000
|
$4.58 | ||
|
Unavailable |
|||
|
#11
HOLDER, CLUTCH CABLE
22838-KY0-890
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOLDER, CLUTCH CABLE
22838-397-630
Superseded by 22838-KY0-890
|
$3.76 | ||
|
Unavailable |
|||
|
#11
HOLDER, CLUTCH CABLE
22838-437-000
Superseded by 22838-KY0-890
|
$3.76 | ||
|
Unavailable |
|||
|
#16
O-RING (35X3) (ARAI) SEAL, VALVE STEM (NOK)
91303-KK3-830
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEX. (6X60)
92000-06060-0A
Superseded by 92101-06060-0A
|
$1.11 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEX. (6X60)
92101-06060-0A
|
$1.11 | ||
|
Unavailable |
|||
