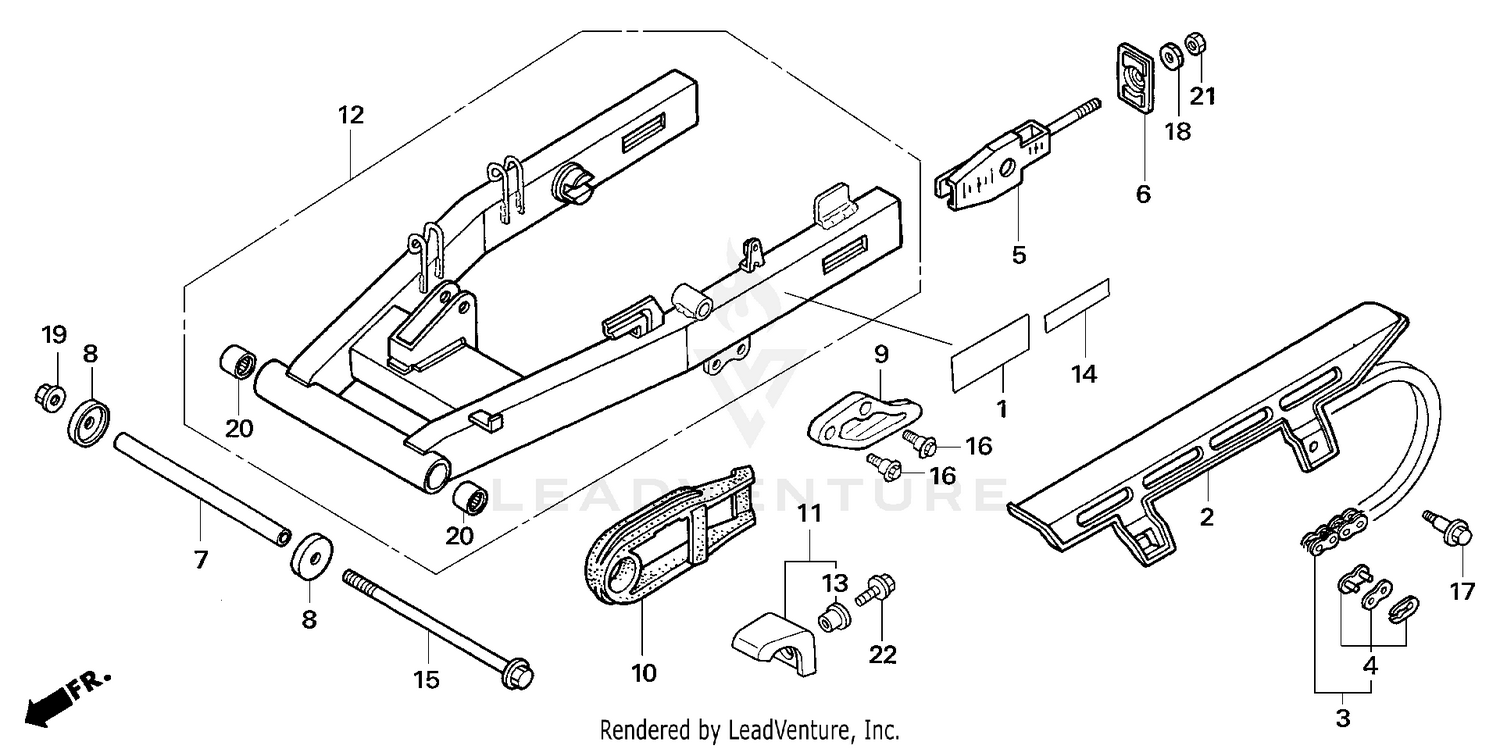

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
CASE, DRIVE CHAIN
40510-GT4-020
|
$24.66 | ||
|
Unavailable |
|||
|
#3
CHAIN, DRIVE (RK420MSZ-100RJ) (RK EXCEL)
40530-NX2-003
|
|||
|
Unavailable |
|||
|
#4
MASTER LINK (RK EXCEL)
40531-GM7-641
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
ADJUSTER, CHAIN
40543-GEY-910
|
$24.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
ADJUSTER, CHAIN
40543-GS3-000
Superseded by 40543-GEY-910
|
$24.50 | ||
|
Unavailable |
|||
|
#6
CAP, SWINGARM END
40546-GS3-000
|
$6.51 | ||
|
Unavailable |
|||
|
#7
COLLAR, SWINGARM PIVOT (NOT AVAILABLE)
52141-GT4-970
|
$21.62 | ||
|
Unavailable |
|||
|
#8
DUST SEAL (31X41)
52144-GT4-971
|
$5.23 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUARD, CHAIN
52156-GAN-670
|
$51.24 | ||
|
Available to order. Add to View Price |
|||
|
#10
SLIDER, CHAIN
52171-GS9-000
|
$17.26 | ||
|
Unavailable |
|||
|
#11
SLIDER ASSY., CHAIN (LOWER)
52185-GN1-000
|
$23.69 | ||
|
Available to order. Add to View Price |
|||
|
#12
SWINGARM SET
52200-NX2-000
|
|||
|
Unavailable |
|||
|
#13
WASHER (6MM)
61107-KK6-000
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#14
LABEL, NOISE INFORMATION
87529-KA3-730
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (12X252)
90103-GT4-000
|
$17.73 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6MM)
90110-147-000
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6MM)
90111-187-000
|
$7.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
NUT, SPECIAL (6MM)
90302-KBP-900
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
NUT, FLANGE (12MM) (FUSE RASHI)
90306-KF0-003
|
$4.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BEARING, NEEDLE (20X26X20) (NTN)
91070-GC4-601
|
$29.96 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
NUT, HEX. (6MM)
94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#22
BOLT, FLANGE (6X14) (SOURCE: VINTAGE PARTS INC.)
96300-06014-07
|
$3.78 | ||
|
Unavailable |
|||
