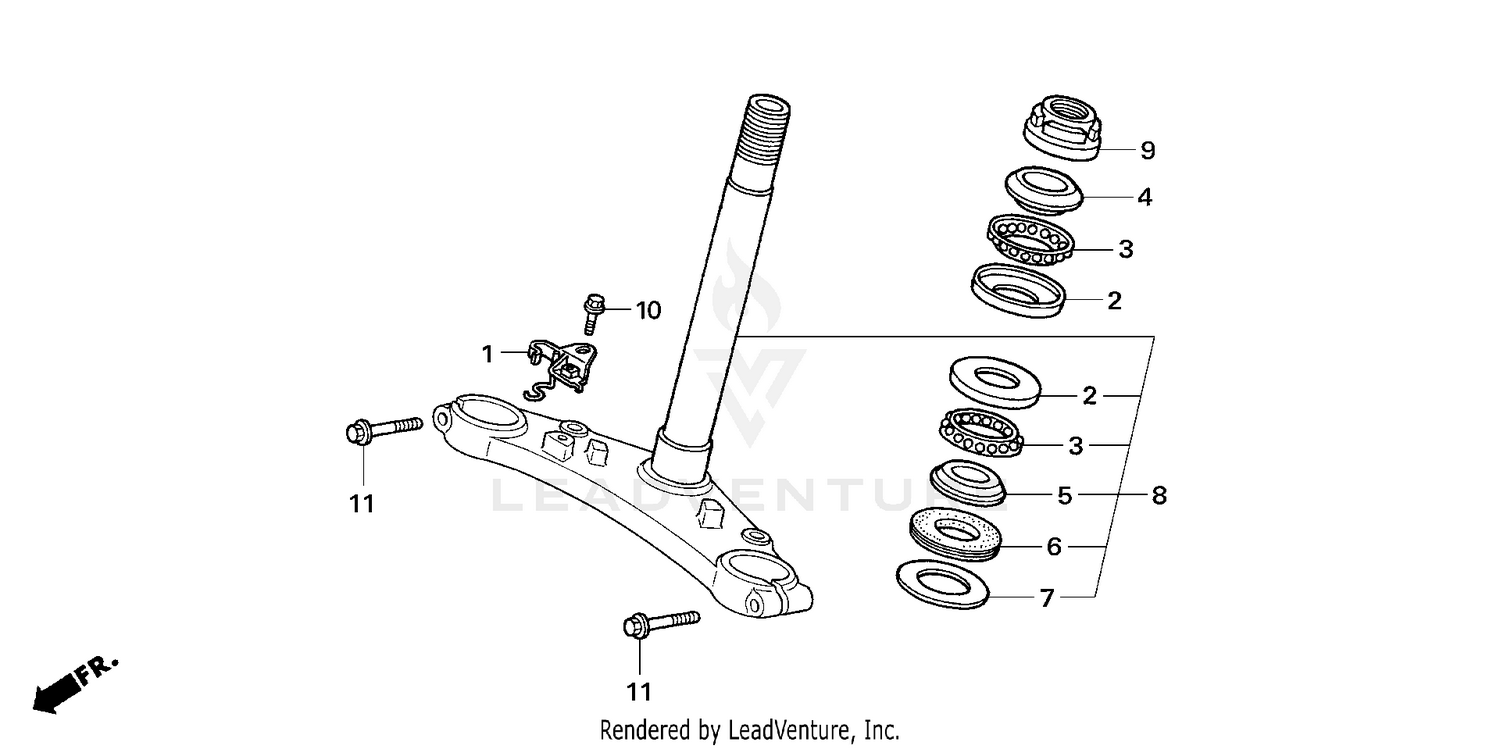

Steering Stem Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, BRAKE HOSE
45127-GAA-010
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#2
RACE, STEERING BALL
50301-041-010
|
$15.02 | ||
|
Available to order. Add to View Price |
|||
|
#3
BALL ASSY., STEERING STEEL (KATO HATSUJO)
53210-GS9-003
|
$22.96 | ||
|
Available to order. Add to View Price |
|||
|
#4
RACE, STEERING TOP CONE
53211-028-010
|
$13.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
RACE, STEERING CONE (LOWER)
53212-030-010
|
$13.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
DUST SEAL, STEERING HEAD
53214-001-010
Superseded by 53214-GJG-C20
|
$2.96 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, STEERING HEAD DUST SEAL
53215-001-000
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
STEM SUB-ASSY., STEERING
53219-GT4-J00
|
$155.00 | ||
|
Unavailable |
|||
|
#9
THREAD, STEERING HEAD TOP
53220-074-000
|
$19.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X12)
95701-06012-07
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (8X32)
96300-08032-07
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
