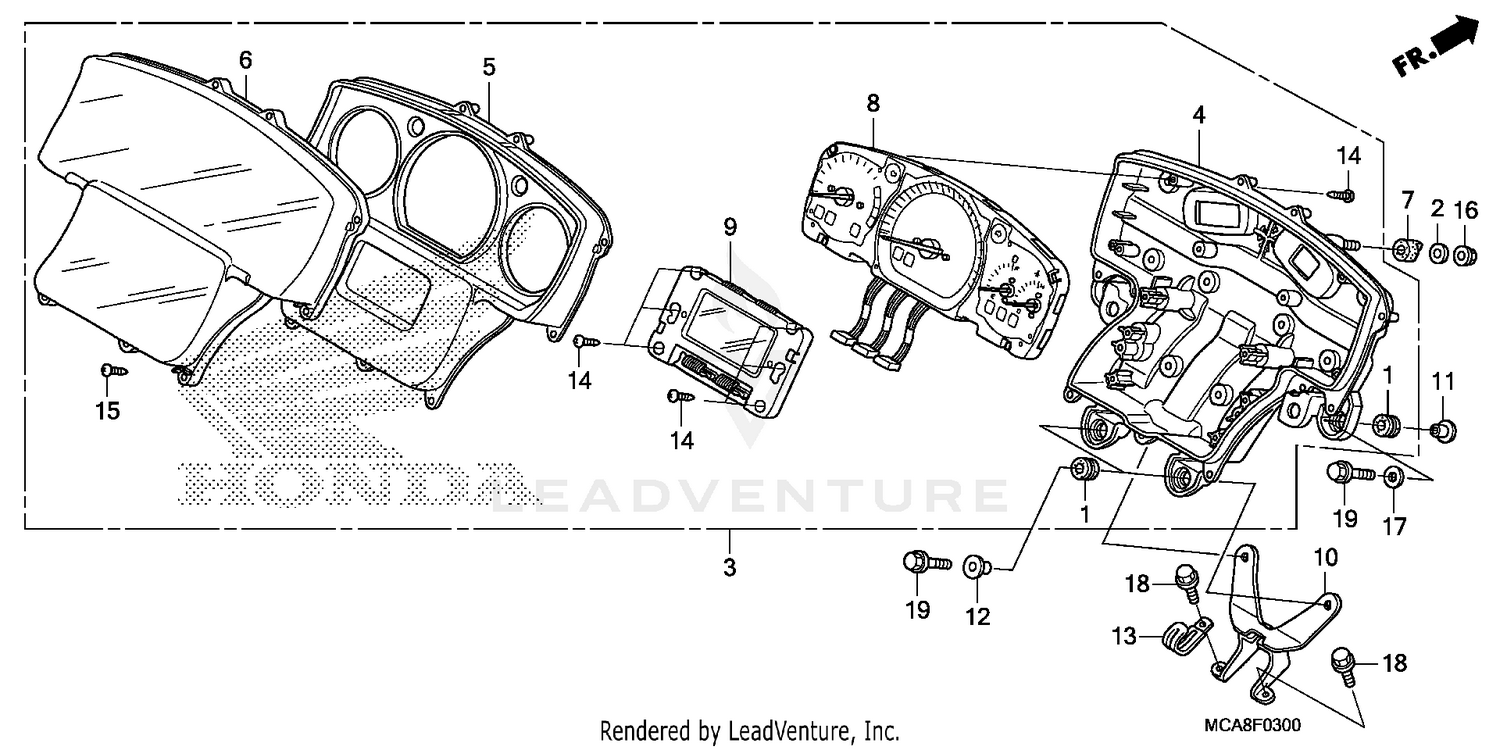

Speedometer Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GROMMET, AIR CLEANER HOUSING
17251-KE8-690
|
$2.96 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER, PIVOT (Honda Code 0283556)
17936-921-000
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#3
METER ASSY., COMBINATION (MPH/KPH)(COO)
37100-MCA-315
|
$2,823.84 | ||
|
Available to order. Add to View Price |
|||
|
#4
CASE ASSY. (LOWER)
37101-MCA-B41
|
$251.11 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE ASSY., REFLECTING
37102-MCA-H01
|
$130.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
LENS
37103-MCA-H31
|
$201.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
LENS
37103-MCA-305
Superseded by 37103-MCA-H31
|
$201.87 | ||
|
Unavailable |
|||
|
#7
RUBBER, METER SETTING
37109-MBG-000
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#8
METER, COMBINATION (COO)
37110-MCA-S41
Superseded by 37110-MCA-305
|
$927.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
METER, COMBINATION (COO)
37110-MCA-305
|
$927.75 | ||
|
Unavailable |
|||
|
#9
LCD
37230-MCA-S41
|
$1,325.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
LCD
37230-MCA-305
Superseded by 37230-MCA-S41
|
$1,325.20 | ||
|
Unavailable |
|||
|
#10
STAY, METER MOUNTING
53133-MCA-A61
|
$16.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, FUEL TANK
90509-750-000
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, SIDE COVER SETTING
90522-KF0-000
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP, WIRE
91406-166-000
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, TAPPING (3X16)
93903-22420
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, TAPPING (4X16)
93903-24420
|
$0.95 | ||
|
Unavailable |
|||
|
#16
NUT, FLANGE (6MM)
94050-06080
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER, PLAIN (6MM)
94103-06000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X10)
96001-06010-07
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X20)
96001-06020-00
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
