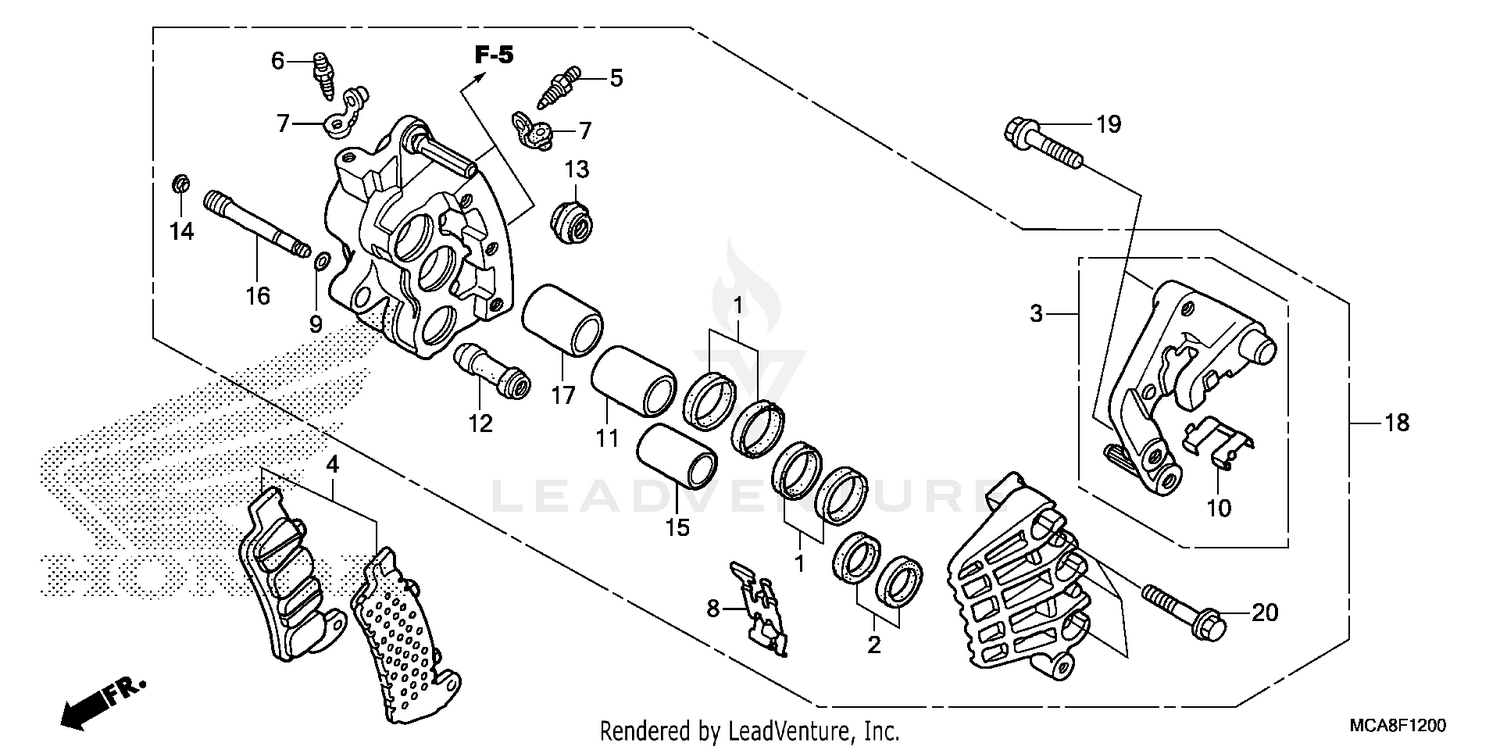

Right Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-2, TOTAL QTY-3)
06451-GE2-405
|
$13.82 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-1, TOTAL QTY-2)
06451-MZ2-405
|
$15.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET SUB-ASSY., R. FR.
06453-MBG-405
|
$163.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
PAD SET, FR.
06456-MCA-016
|
$53.69 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, BLEEDER (NISSIN)
43352-568-003
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, BLEEDER (NISSIN)
43352-568-003
|
$9.98 | ||
|
Unavailable |
|||
|
#7
CAP, BLEEDER
43353-461-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, PAD
45108-MZ2-016
|
$10.36 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING, STOPPER
45111-MAJ-G41
|
$4.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
RETAINER, BRACKET
45112-MZ2-006
|
$10.71 | ||
|
Available to order. Add to View Price |
|||
|
#11
PISTON A (25X27)
45117-MAJ-G41
|
$34.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOOT, PIN BUSH (NISSIN)
45132-166-016
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOOT B
45133-MA3-006
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
PLUG, PIN
45203-MCC-006
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
PISTON B (22X35)
45207-MAJ-G41
|
$36.36 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, HANGER
45215-MAJ-G41
|
$8.09 | ||
|
Available to order. Add to View Price |
|||
|
#17
PISTON B (25X35)
45217-MAJ-G41
|
$44.76 | ||
|
Available to order. Add to View Price |
|||
|
#18
CALIPER SUB-ASSY., R. FR. (NISSIN)
45250-MCA-006
|
$293.85 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (8X32)
90107-MT3-003
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (8X45)
90135-MAJ-G41
|
$8.11 | ||
|
Available to order. Add to View Price |
|||
