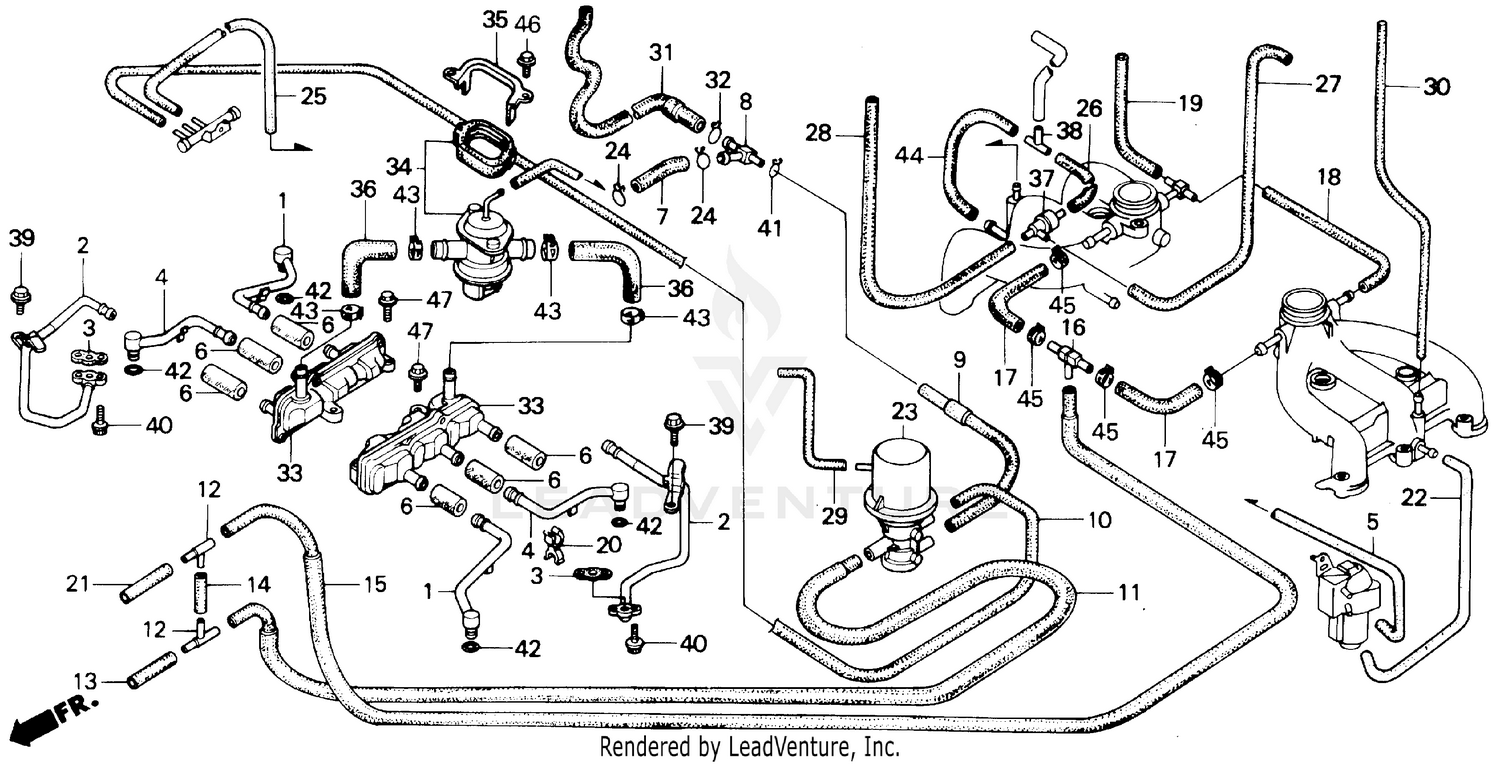

Tubing (2) 88 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE A, AIR FEED
17010-MT2-305
|
$24.55 | ||
|
Unavailable |
|||
|
#1
PIPE A, AIR FEED
17130-MN5-000
Superseded by 17010-MT2-305
|
$24.55 | ||
|
Unavailable |
|||
|
#2
PIPE, AIR FEED (B)
17140-MN5-000
|
$47.90 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, AIR FEED PIPE
17142-MN5-000
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE C, AIR FEED
17150-MN5-000
Superseded by 17020-MT2-305
|
$23.11 | ||
|
Unavailable |
|||
|
#5
TUBE, PRESSURE BOOST (A) (NOT AVAILABLE)
17160-MN5-010
|
$21.20 | ||
|
Unavailable |
|||
|
#6
HOSE, AIR FEED (A)
17161-MN5-000
Superseded by 17161-MN5-010
|
$8.85 | ||
|
Unavailable |
|||
|
#6
HOSE, AIR FEED (A)
17161-MN5-010
|
$8.85 | ||
|
Unavailable |
|||
|
#7
TUBE A, AIR IN.
17162-MN5-000
|
$14.81 | ||
|
Unavailable |
|||
|
#8
JOINT B (THREE-WAY)
17163-MN5-000
|
$18.52 | ||
|
Available to order. Add to View Price |
|||
|
#9
TUBE B, AIR IN.
17164-MN5-000
|
$23.58 | ||
|
Unavailable |
|||
|
#10
TUBE, PRESSURE BOOST (B) (NOT AVAILABLE)
17165-MN5-000
|
$23.31 | ||
|
Unavailable |
|||
|
#11
TUBE, AIR IN. (C) (NOT AVAILABLE)
17166-MN5-000
Superseded by 17166-MN5-010
|
$45.76 | ||
|
Unavailable |
|||
|
#11
TUBE, AIR IN. (C) (NOT AVAILABLE)
17166-MN5-010
|
$45.76 | ||
|
Unavailable |
|||
|
#12
JOINT (THREE-WAY) (C) (NOT AVAILABLE)
17167-MN5-000
|
$8.36 | ||
|
Unavailable |
|||
|
#13
TUBE, AIR IN. (D) (NOT AVAILABLE)
17168-MN5-000
|
$6.76 | ||
|
Unavailable |
|||
|
#14
TUBE, AIR IN. (E) (NOT AVAILABLE)
17169-MN5-000
|
$4.00 | ||
|
Unavailable |
|||
|
#15
TUBE, AIR IN. (YELLOW) (NOT AVAILABLE)
17170-MN5-000
Superseded by 17170-MN5-010
|
$35.48 | ||
|
Unavailable |
|||
|
#15
TUBE, AIR IN. (YELLOW) (NOT AVAILABLE)
17170-MN5-010
|
$35.48 | ||
|
Unavailable |
|||
|
#16
VALVE, CHECK (NOT AVAILABLE)
17171-MN5-003
|
$50.73 | ||
|
Unavailable |
|||
|
#17
TUBE, AIR IN. (G)
17172-MN5-000
|
$14.22 | ||
|
Available to order. Add to View Price |
|||
|
#18
TUBE, PRESSURE BOOST (C)
17173-MN5-000
|
$14.22 | ||
|
Available to order. Add to View Price |
|||
|
#19
TUBE, PRESSURE BOOST (E) (NOT AVAILABLE)
17175-MN5-000
|
$5.66 | ||
|
Unavailable |
|||
|
#20
CLAMP J, HOSE
17176-MN5-000
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#21
TUBE, AIR IN. (H) (NOT AVAILABLE)
17177-MN5-000
|
$4.66 | ||
|
Unavailable |
|||
|
#22
TUBE, PRESSURE BOOST (F) (NOT AVAILABLE)
17178-MN5-000
|
$8.14 | ||
|
Unavailable |
|||
|
#23
VALVE ASSY., SHOT AIR (NOT AVAILABLE)
17340-MN5-003
|
$162.35 | ||
|
Unavailable |
|||
|
#24
CLIP, BREATHER TUBE
17369-KB4-670
|
$5.93 | ||
|
Available to order. Add to View Price |
|||
|
#25
TUBE (3.5X95) (BLUE 1) (NOT AVAILABLE)
17451-MN5-010
|
$5.52 | ||
|
Unavailable |
|||
|
#26
TUBE (3.5MM) (BLUE 2) (NOT AVAILABLE)
17452-MN5-010
|
$18.39 | ||
|
Unavailable |
|||
|
#27
TUBE (3.5MM) (BLUE 3) (NOT AVAILABLE)
17453-MN5-000
|
$19.41 | ||
|
Unavailable |
|||
|
#28
TUBE (3.5X270) (BLUE 4) (NOT AVAILABLE)
17454-MN5-000
|
$9.32 | ||
|
Unavailable |
|||
|
#29
TUBE (3.5MM) (YELLOW 4) (NOT AVAILABLE)
17457-MN5-000
|
$14.25 | ||
|
Unavailable |
|||
|
#30
TUBE (3.5X195) (PINK 1) (NOT AVAILABLE)
17458-MN5-000
|
$8.14 | ||
|
Unavailable |
|||
|
#31
TUBE (14MM) (GREEN 4) (NOT AVAILABLE)
17472-MN5-000
Superseded by 17472-MN5-010
|
$41.99 | ||
|
Unavailable |
|||
|
#31
TUBE (14MM) (GREEN 4) (NOT AVAILABLE)
17472-MN5-010
|
$41.99 | ||
|
Unavailable |
|||
|
#32
CLIP, SUB-TANK HOSE
17724-102-700
|
$5.50 | ||
|
Available to order. Add to View Price |
|||
|
#33
CASE ASSY., REED VALVE
18610-MN5-004
|
$136.18 | ||
|
Available to order. Add to View Price |
|||
|
#34
VALVE ASSY., AIR INJECTION CONTROL
18650-MN5-024
|
$195.32 | ||
|
Unavailable |
|||
|
#35
STAY, AIR INJECTION VALVE
18652-MN5-000
|
$9.00 | ||
|
Available to order. Add to View Price |
|||
|
#36
HOSE, AIR IN.
18654-MN5-000
|
$9.78 | ||
|
Available to order. Add to View Price |
|||
|
#37
VALVE, IN. AIR SHOT AIR CHECK
36627-MN5-000
Superseded by 36627-MN5-003
|
$48.85 | ||
|
Available to order. Add to View Price |
|||
|
#37
VALVE, IN. AIR SHOT AIR CHECK
36627-MN5-003
|
$48.85 | ||
|
Unavailable |
|||
|
#38
JOINT, THREE WAY
36010-PA6-004
|
$10.35 | ||
|
Available to order. Add to View Price |
|||
|
#38
JOINT (THREE-WAY)
38773-PB9-000
Superseded by 36010-PA6-004
|
$10.35 | ||
|
Unavailable |
|||
|
#39
BOLT, FLANGE (6X14)
90016-MN5-000
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, SOCKET (6X18)
90040-MN5-000
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#41
CLIP, TUBE (B14)
90654-MK3-780
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#42
O-RING (9.8X2.4)
91305-422-000
|
$2.96 | ||
|
Available to order. Add to View Price |
|||
|
#42
O-RING (9.8X2.4)
91352-425-003
Superseded by 91305-422-000
|
$2.96 | ||
|
Unavailable |
|||
|
#43
CLAMP, FUEL TUBE (D20) (CHUO HATSUJO)
91405-PE0-003
Superseded by 91417-SZ3-003
|
$8.03 | ||
|
Available to order. Add to View Price |
|||
|
#43
CLAMP, FUEL TUBE (D20) (CHUO HATSUJO)
91417-SZ3-003
|
$8.03 | ||
|
Unavailable |
|||
|
#44
BULK HOSE (3.5X3000)
95001-35003-20M
Superseded by 95001-35003-50M
|
$38.33 | ||
|
Available to order. Add to View Price |
|||
|
#45
CLAMP, TUBE (D12)
95002-41200-08
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOLT, FLANGE (6X14)
95701-06014-08
|
$1.70 | ||
|
Unavailable |
|||
|
#47
BOLT, FLANGE (6X25)
95701-06025-08
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
