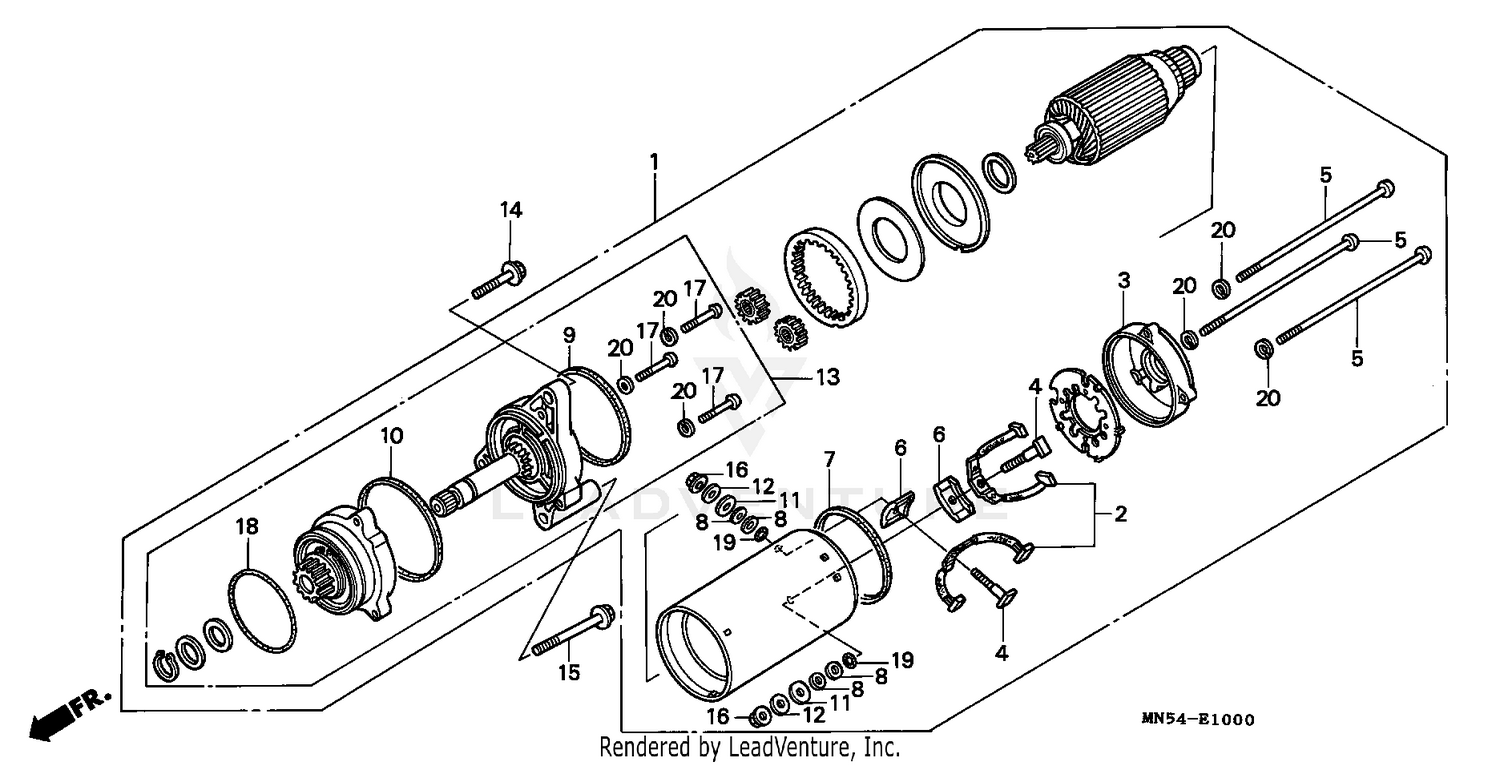

Starting Motor 88-89 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STARTER MOTOR ASSY.
31200-MN5-008
Superseded by 31200-MN5-018
|
$807.27 | ||
|
Unavailable |
|||
|
#2
BRUSH, TERMINAL (NOT AVAILABLE)
31201-MN5-008
|
$31.79 | ||
|
Unavailable |
|||
|
#3
BRACKET B, END (NOT AVAILABLE)
31202-MN5-008
|
$40.18 | ||
|
Unavailable |
|||
|
#4
BOLT, TERMINAL
31204-MN5-008
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, SETTING
31205-MN5-008
Superseded by 31205-MT8-008
|
$5.31 | ||
|
Unavailable |
|||
|
#5
BOLT, SETTING
31205-MT8-008
|
$5.31 | ||
|
Unavailable |
|||
|
#6
INSULATOR, TERMINAL
31206-MN5-008
|
$11.82 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING
31207-KS5-901
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, INSULATOR
31207-MN5-008
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING, SEAL
31207-179-711
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#10
RING
31208-MG9-004
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, INSULATOR
31208-MN5-008
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER (6MM)
31209-MN5-008
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR ASSY. (NOT AVAILABLE)
31210-MN5-008
|
$619.53 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE (8X38)
90013-MN5-000
|
$4.32 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE (8X60)
90015-MN5-000
Superseded by 95701-08060-08
|
$2.57 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE (8X60)
95701-08060-08
|
$2.57 | ||
|
Unavailable |
|||
|
#16
NUT-WASHER (6MM)
90071-MB0-000
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT (5X39)
91001-MN5-008
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING (59.6X2.4)
91309-MN5-008
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING (4X2)
91320-MB0-000
|
$2.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
WASHER, SPRING (5MM)
94111-05000
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
