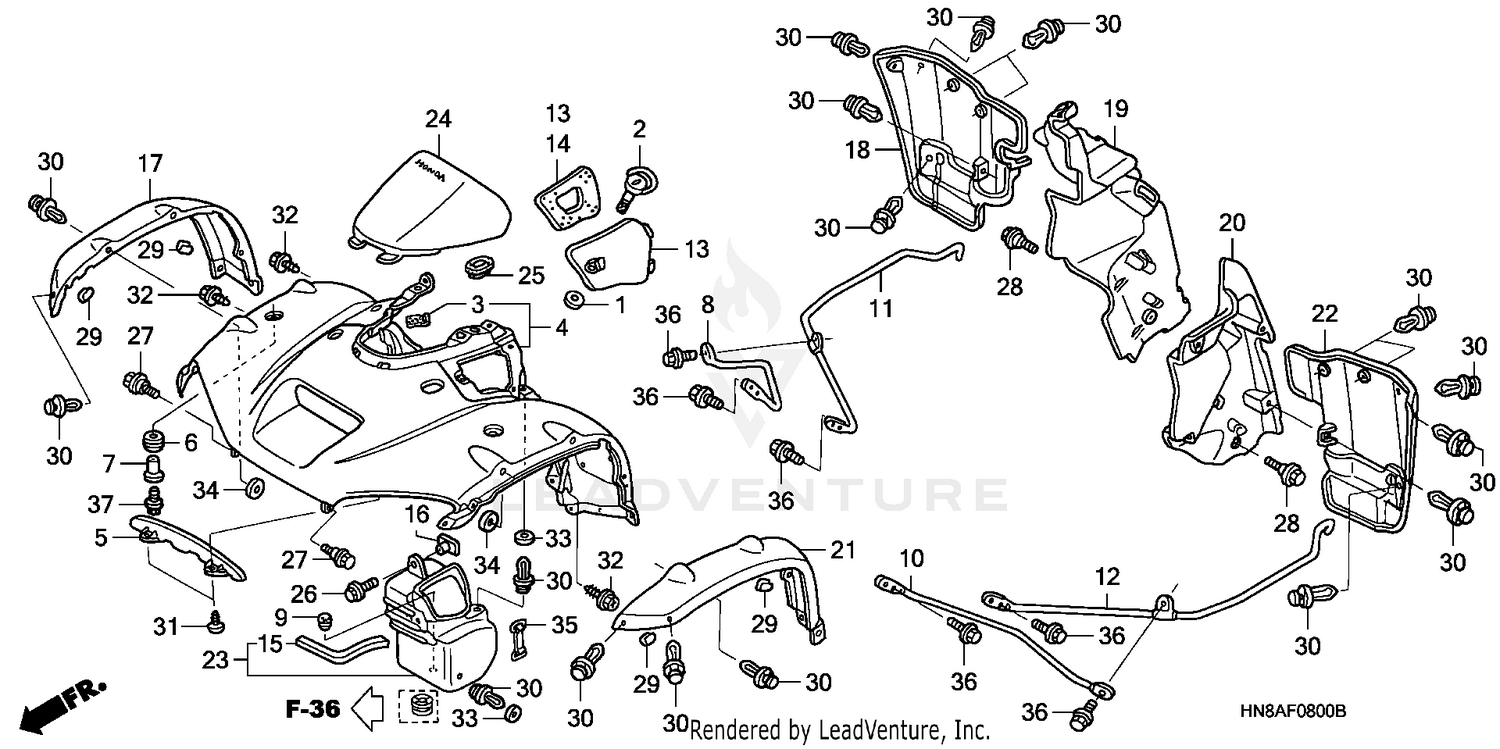

Front Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WASHER, AIR CLEANER COVER SETTING
17224-KN5-670
|
$1.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
STUD (6X21)
17225-KN5-670
Superseded by 17225-KN5-671
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#2
STUD (6X21)
17225-KN5-671
|
$8.78 | ||
|
Unavailable |
|||
|
#3
RUBBER, BATTERY (30X40X3)
50384-HM5-670
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#4
FENDER, FR. *YRA02L* (NATURAL CAMO)
61100-HN8-A80ZD
Superseded by 61100-HN8-306ZA
|
$611.72 | ||
|
Available to order. Add to View Price |
|||
|
#4
FENDER, FR. *YRA02L* (NATURAL CAMO)
61100-HN8-306ZA
|
$611.72 | ||
|
Unavailable |
|||
|
#5
PLATE, RADIATOR
61101-HN8-000
|
$8.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER, FR. FENDER MOUNTING (Honda Code 4735148)
61103-HM5-850
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, FR. FENDER (WHITE)
61104-357-000
Superseded by 61104-428-010
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, FR. FENDER (WHITE)
61104-428-000
Superseded by 61104-428-010
|
$5.29 | ||
|
Unavailable |
|||
|
#7
COLLAR, FR. FENDER (WHITE) (FOR RR.)
61104-428-010
|
$5.29 | ||
|
Unavailable |
|||
|
#8
STAY, R. FR. FENDER
61105-HN2-000
|
$40.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG, FR. FENDER
61105-KA8-000
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
STAY, L. FR. FENDER
61106-HN2-000
|
$47.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
STAY, R. SPLASH GUARD CENTER
61107-HN2-000
|
$60.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAY, L. SPLASH GUARD CENTER
61108-HN2-000
|
$60.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
LID ASSY., UTILITY BOX *YRA02L* (NATURAL CAMO)
61110-HN8-A80ZD
Superseded by 61110-HN8-A81ZD
|
$118.04 | ||
|
Unavailable |
|||
|
#14
SEAL, UTILITY BOX LID
61125-HN8-000
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL B, UTILITY BOX
61126-HN8-000
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, SPECIAL (6MM)
61304-HB3-003
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPLASH GUARD, R. FR. SIDE *NH1* (BLACK)
61861-HN8-000ZA
|
$36.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPLASH GUARD, R. FR. (LOWER) *NH1* (BLACK)
61862-HN8-000ZA
|
$37.58 | ||
|
Available to order. Add to View Price |
|||
|
#19
FENDER, R. (INNER)
61863-HN8-000
|
$23.89 | ||
|
Available to order. Add to View Price |
|||
|
#20
FENDER, L. (INNER)
61864-HN8-000
|
$24.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPLASH GUARD, L. FR. SIDE *NH1* (BLACK)
61866-HN8-000ZA
|
$36.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPLASH GUARD, L. FR. (LOWER) *NH1* (BLACK)
61867-HN8-000ZA
|
$37.58 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOX, UTILITY
80210-HN8-A60
|
$37.71 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER SET, STEERING *NH1* (WL) (BLACK)
83450-HN8-A60ZA
|
$143.65 | ||
|
Available to order. Add to View Price |
|||
|
#25
GROMMET, SIDE COVER
83551-MA6-000
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X14)
90111-HC4-000
|
$3.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BOLT, RR. FENDER SETTING
90111-KAE-870
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (6MM)
90111-162-000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#29
U-CLIP
90651-HN8-000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLIP, SPLASH GUARD (Honda Code 3795994)
90653-HC4-900
|
$0.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
SCREW, TAPPING (5X16)
93903-25320
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
SCREW, TAPPING (6X16)
93904-26210
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLAIN (8MM)
94101-08800
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLAIN (8MM)
94103-08800
|
$0.98 | ||
|
Unavailable |
|||
|
#35
BAND F, BATTERY (155MM)
95012-17001
|
$9.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, FLANGE (6X22)
95701-06022-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
