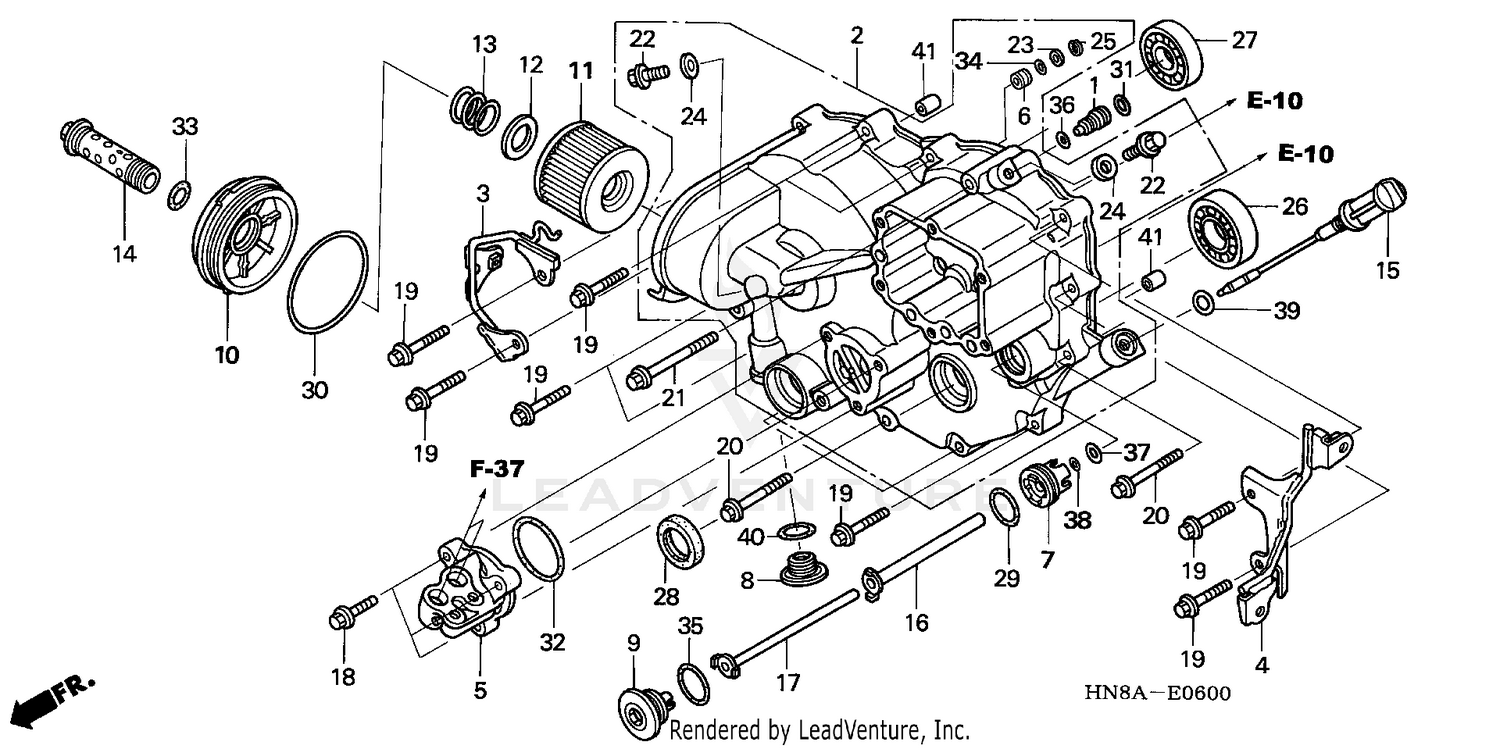

Front Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ORIFICE, MAIN
11140-HN8-000
|
$12.89 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER ASSY., FR.
11300-HN8-010
|
$529.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY, R. FR. ENGINE SIDE COVER
11311-HN8-A60
|
$18.58 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, L. FR. ENGINE SIDE COVER
11321-HN8-000
|
$23.02 | ||
|
Available to order. Add to View Price |
|||
|
#5
JOINT, OIL HOSE
11332-HN8-000
|
$33.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, FR. COVER
11333-HN8-000
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, OIL FEED PIPE SETTING
11335-HN8-000
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, OIL PASSAGE
11336-HN8-000
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, OIL FEED PIPE SETTING
11337-HN8-000
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, OIL FILTER
15411-HN8-000
Superseded by 15411-HN8-010
|
$39.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, OIL FILTER
15411-HN8-010
|
$39.65 | ||
|
Unavailable |
|||
|
#11
ELEMENT, OIL FILTER
15412-KEA-003
|
$11.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SEAT, OIL FILTER SPRING
15414-300-000
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, FILTER ELEMENT SETTING
15415-413-000
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, OIL FILTER CENTER
15420-HN8-000
|
$41.91 | ||
|
Available to order. Add to View Price |
|||
|
#15
DIPSTICK, OIL
15650-HN8-000
|
$16.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIPE B, FEED
22715-HN8-000
|
$26.56 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIPE C, FEED
22725-HN8-000
|
$28.58 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X25) (NSHF)
90004-GHB-670
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X35) (NSHF)
90004-GHB-700
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X50) (NSHF)
90004-GHB-730
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X65) (NSHF)
90004-GHB-760
|
$7.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT, SEALING (8MM)
90024-612-000
|
$5.97 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, THRUST (22X15.5X0.5)
90409-HN8-000
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER (8MM)
90471-580-000
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#25
CIRCLIP (INNER) (22MM)
90601-HN8-000
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#26
BEARING, RADIAL BALL (6005) (NTN)
91012-HN2-004
|
$18.58 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING, RADIAL BALL SPECIAL (6303)
91017-HN8-003
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#28
OIL SEAL (25X35X5)
91203-KCY-671
|
$8.95 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-RING (19.20X1.90) (NOK)
91301-P7X-003
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-RING (75X2.5)
91301-107-000
|
$6.13 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
O-RING (7X1.7)
91301-473-003
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#32
O-RING (43X2.5)
91302-HN8-000
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#33
O-RING (15X2.5) (Honda Code 0386995)
91302-377-000
|
$6.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
O-RING (17.8X1.9)
91303-HN8-003
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#35
O-RING (27X2) (ARAI)
91305-KF0-003
|
$3.51 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
O-RING (5X1.7) (ARAI)
91305-MG7-003
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
O-RING (8.5X1.9) (NOK)
91314-PC9-003
Superseded by 91314-PC9-004
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#37
O-RING (8.5X1.9) (NOK)
91314-PC9-004
|
$4.05 | ||
|
Unavailable |
|||
|
#38
O-RING (6X1.5) (N0K)
91315-PC9-004
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#39
O-RING (8.4X2.4)
91316-MJ8-003
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#40
O-RING (22.1X2)
91305-679-003
|
$5.88 | ||
|
Available to order. Add to View Price |
|||
|
#40
O-RING (22.1X2)
91355-MB0-003
Superseded by 91305-679-003
|
$5.88 | ||
|
Unavailable |
|||
|
#41
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
