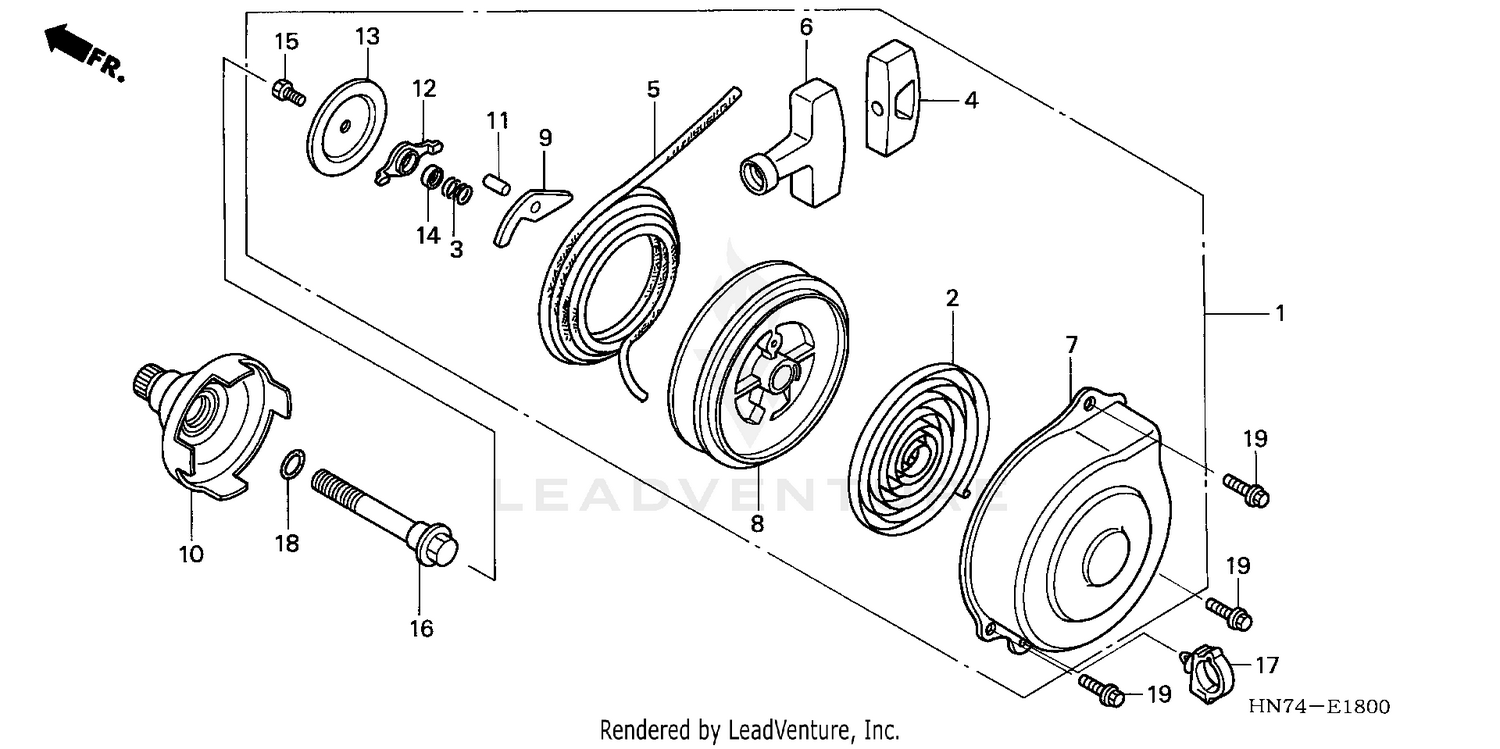

Recoil Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STARTER ASSY., RECOIL
28400-HN7-900
|
$54.31 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, RECOIL STARTER
28402-HB6-004
|
$38.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, FRICTION
28404-HN5-M01
|
$14.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, KNOB
28405-HN5-M01
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROPE, RECOIL STARTER
28407-HN7-003
|
$15.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
KNOB, STARTER
28408-HN5-M01
|
$23.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
CASE, RECOIL STARTER
28410-HN7-900
|
$29.92 | ||
|
Available to order. Add to View Price |
|||
|
#8
REEL, RECOIL STARTER
28420-HN7-003
|
$14.82 | ||
|
Available to order. Add to View Price |
|||
|
#9
RATCHET, STARTER
28422-ZE1-003
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
PULLEY, RECOIL
28430-HN5-M00
|
$38.58 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, STARTER RATCHET
28432-HB6-004
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#12
GUIDE, RATCHET
28433-HN5-M01
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, FRICTION
28434-HN5-M01
|
$16.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, SPRING
28446-968-004
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
28448-HN5-M01
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, SPECIAL (12MM)
90081-HN5-670
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP, HARNESS
90652-HC4-003
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING (11.5X2.3)
91303-679-003
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X14)
96001-06014-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
