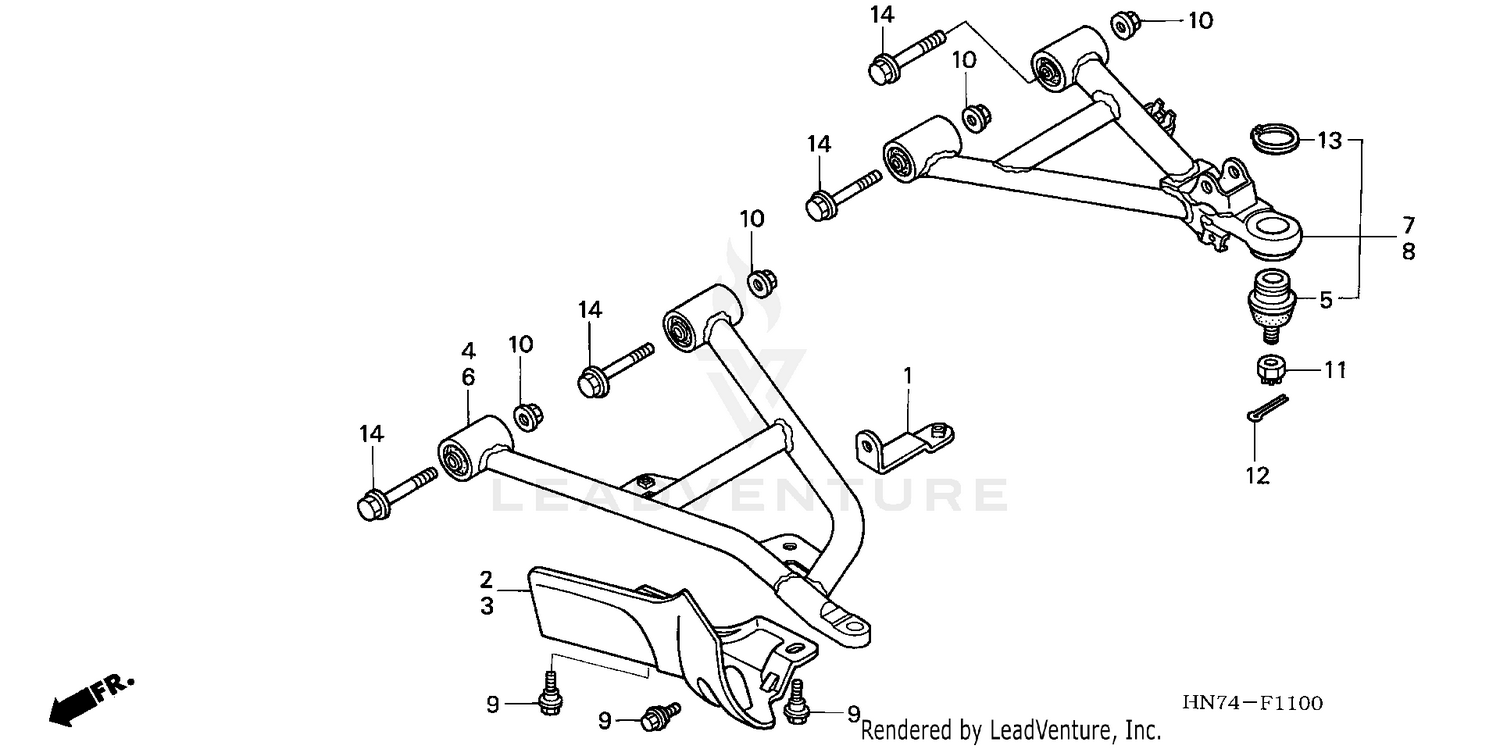

Front Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAY, FR. GUARD
51311-HM7-000
|
$59.73 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUARD, R. FR.
51315-HN2-000
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUARD, L. FR.
51316-HN2-000
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#4
ARM ASSY., R. FR. (LOWER)
51350-HN7-000
|
$117.24 | ||
|
Available to order. Add to View Price |
|||
|
#5
JOINT A, ARM BALL
51355-HN0-A01
Superseded by 51375-HP5-601
|
$24.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
JOINT A, ARM BALL
51375-HP5-601
|
$24.15 | ||
|
Unavailable |
|||
|
#6
ARM ASSY., L. FR. (LOWER)
51360-HN7-000
|
$117.24 | ||
|
Available to order. Add to View Price |
|||
|
#7
ARM ASSY., R. (UPPER)
51370-HN5-670
|
$140.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
ARM ASSY., L. (UPPER)
51380-HN5-670
|
$80.91 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6MM)
90111-KT1-780
|
$17.62 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, SELF-LOCK (10MM)
90305-HC0-770
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, CASTLE (12MM)
90310-HB9-000
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, SPLIT (3.0X18)
94201-30180
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CIRCLIP (OUTER) (34MM)
94514-34000
|
$1.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, FLANGE (10X62)
90151-HC5-000
|
$9.74 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (10X62)
95801-10065-00
Superseded by 90151-HC5-000
|
$9.74 | ||
|
Unavailable |
|||
