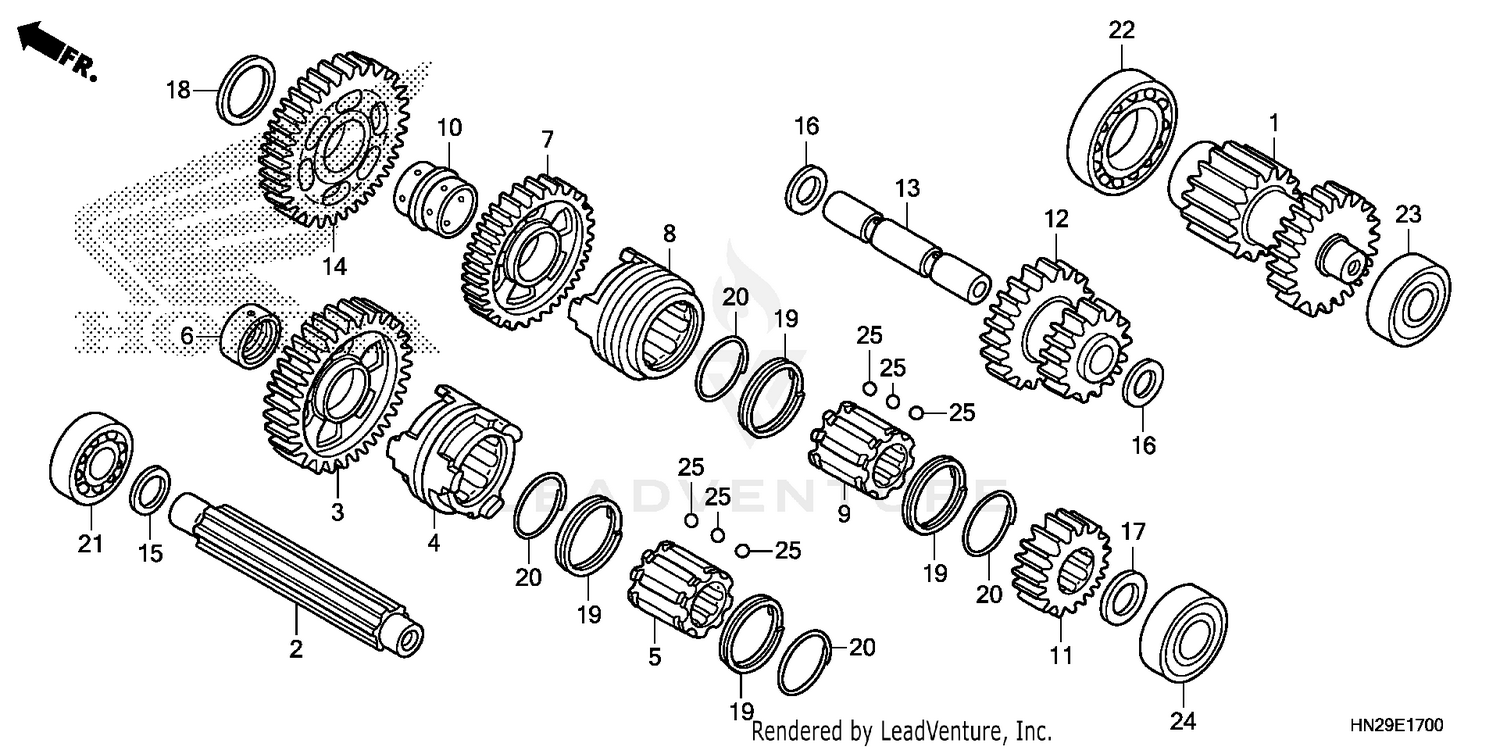

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT (18T/24T)
23211-HN2-000
|
$149.80 | ||
|
Available to order. Add to View Price |
|||
|
#2
COUNTERSHAFT
23221-HN2-000
|
$200.51 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, LOW (45T)
23411-HN2-000
|
$173.53 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHIFTER, REVERSE COUNTERSHAFT LOW GEAR
23412-HN2-000
|
$48.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, REVERSE SHIFT (LOW)
23413-HN2-000
|
$33.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH, SPLINE (25MM)
23414-HA0-000
|
$27.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, HIGH (38T)
23431-HN2-000
|
$159.27 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIFTER, GEAR (HIGH)
23432-HN2-000
|
$45.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, SHIFTER (HIGH)
23433-HN2-000
|
$32.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSH, REVERSE GEAR (HIGH)
23454-HN2-000
|
$21.89 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, FINAL DRIVE (20T)
23621-HM7-000
|
$60.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, REVERSE IDLE (14T/29T)
23721-HN2-000
|
$128.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHAFT, REVERSE IDLE
23731-HN2-000
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, COUNTERSHAFT REVERSE (28T)
23751-HN2-000
|
$145.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPECIAL (20MM)
90451-HM7-000
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER (14.2MM)
90451-115-000
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, THRUST (20MM)
90454-751-000
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER C, THRUST (25MM)
90459-357-000
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#19
RING, DOUBLE COIL (INNER)
90613-969-003
|
$16.27 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP (32.5MM)
90616-969-000
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, SPECIAL RADIAL BALL (6204) (NTN)
91001-GM4-033
|
$33.85 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, RADIAL BALL (6006) (NTN)
91003-HN2-004
|
$22.35 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, RADIAL BALL (6203U SPL.)
91006-HN2-003
|
$15.40 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING, RADIAL BALL (6204U SPL.) (KOYO)
91011-HN2-004
|
$19.51 | ||
|
Available to order. Add to View Price |
|||
|
#25
BALL, STEEL (#7) (7/32)
96211-07000
|
$1.34 | ||
|
Available to order. Add to View Price |
|||
