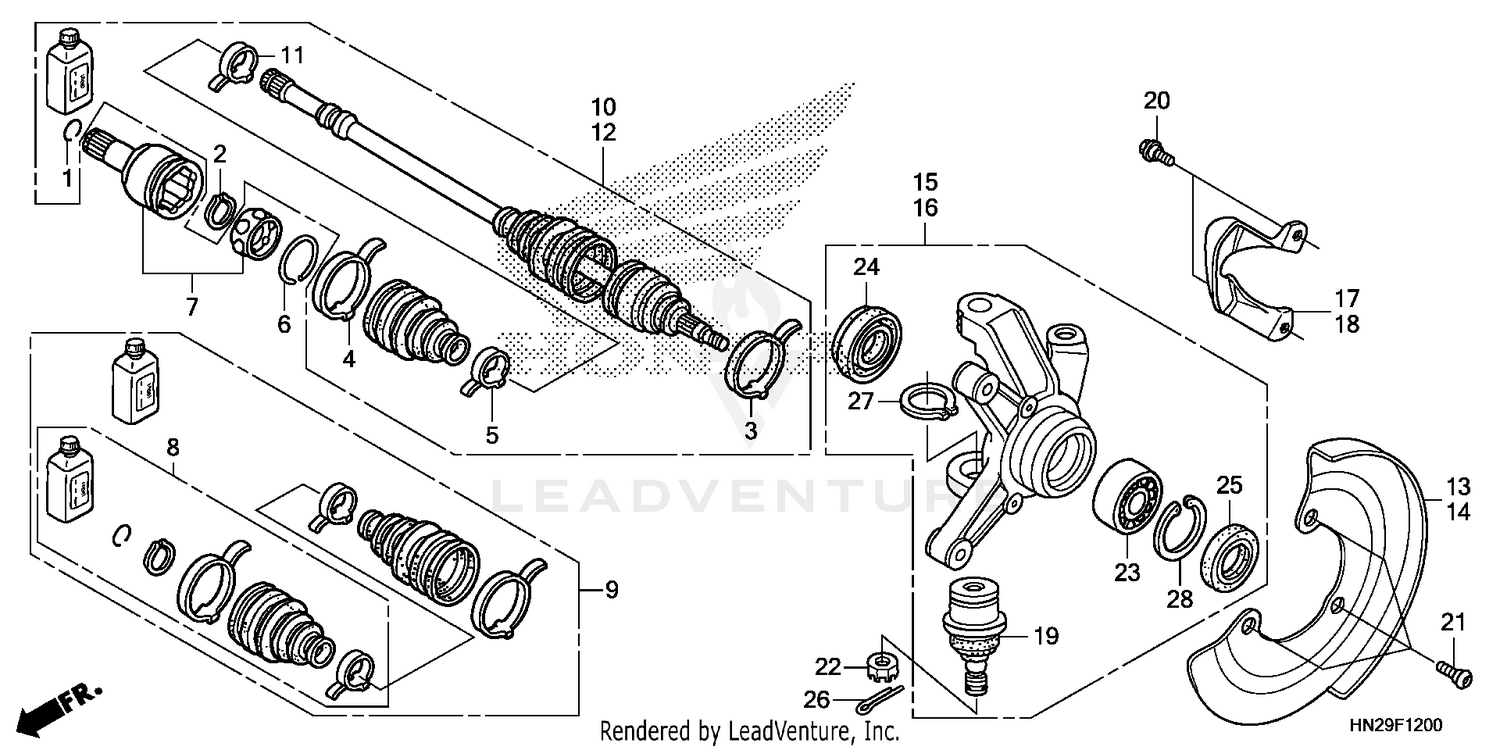

Knuckle Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RING, SNAP
42206-HA7-671
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
CIRCLIP
42209-HC5-003
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#3
BAND, OUTBOARD BOOT
42336-SN4-003
|
$14.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
BAND B, INBOARD
44205-HN8-A41
|
$9.62 | ||
|
Available to order. Add to View Price |
|||
|
#5
BAND A, INBOARD
44206-HN8-A41
|
$9.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING, SNAP
44207-HN8-A41
|
$9.69 | ||
|
Available to order. Add to View Price |
|||
|
#7
JOINT, INBOARD
44220-HN8-A41
|
$138.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOOT SET, INBOARD
44230-HN8-A41
|
$67.80 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOOT SET
44240-HP0-305
|
$89.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
DRIVESHAFT SET, R. FR.
44250-HN8-A43
|
$214.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAND, SHAFT BOOT
44318-SJ7-003
|
$10.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
DRIVESHAFT SET, L. FR.
44350-HN8-A43
|
$214.47 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPLASH GUARD, R.
45255-HP0-A00
|
$25.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPLASH GUARD, L.
45256-HP0-A00
|
$25.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
KNUCKLE ASSY., R.
51200-HP0-B00
|
$252.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
KNUCKLE ASSY., L.
51250-HP0-B00
|
$344.29 | ||
|
Available to order. Add to View Price |
|||
|
#17
GUARD, R. FR. OUTBOARD
51325-HN2-B70
|
$6.11 | ||
|
Available to order. Add to View Price |
|||
|
#18
GUARD, L. FR. OUTBOARD
51326-HN2-B70
|
$6.11 | ||
|
Available to order. Add to View Price |
|||
|
#19
JOINT A, ARM BALL
51375-HP5-601
|
$24.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6MM)
90111-KT1-780
|
$17.62 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, SOCKET (6X15)
90114-HP0-A00
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, CASTLE (12MM)
90310-HB9-000
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, ANGULAR BALL (30X54X24)
91051-HA7-651
|
$65.02 | ||
|
Available to order. Add to View Price |
|||
|
#24
DUST SEAL (40X58X7)
91209-HN2-003
|
$14.33 | ||
|
Available to order. Add to View Price |
|||
|
#25
DUST SEAL (38X55X6)
91256-HP0-A01
|
$9.93 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, SPLIT (3.0X18)
94201-30180
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
CIRCLIP (OUTER) (34MM)
94514-34000
|
$1.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
CIRCLIP, INNER (55MM)
94520-55000
|
$3.50 | ||
|
Unavailable |
|||
