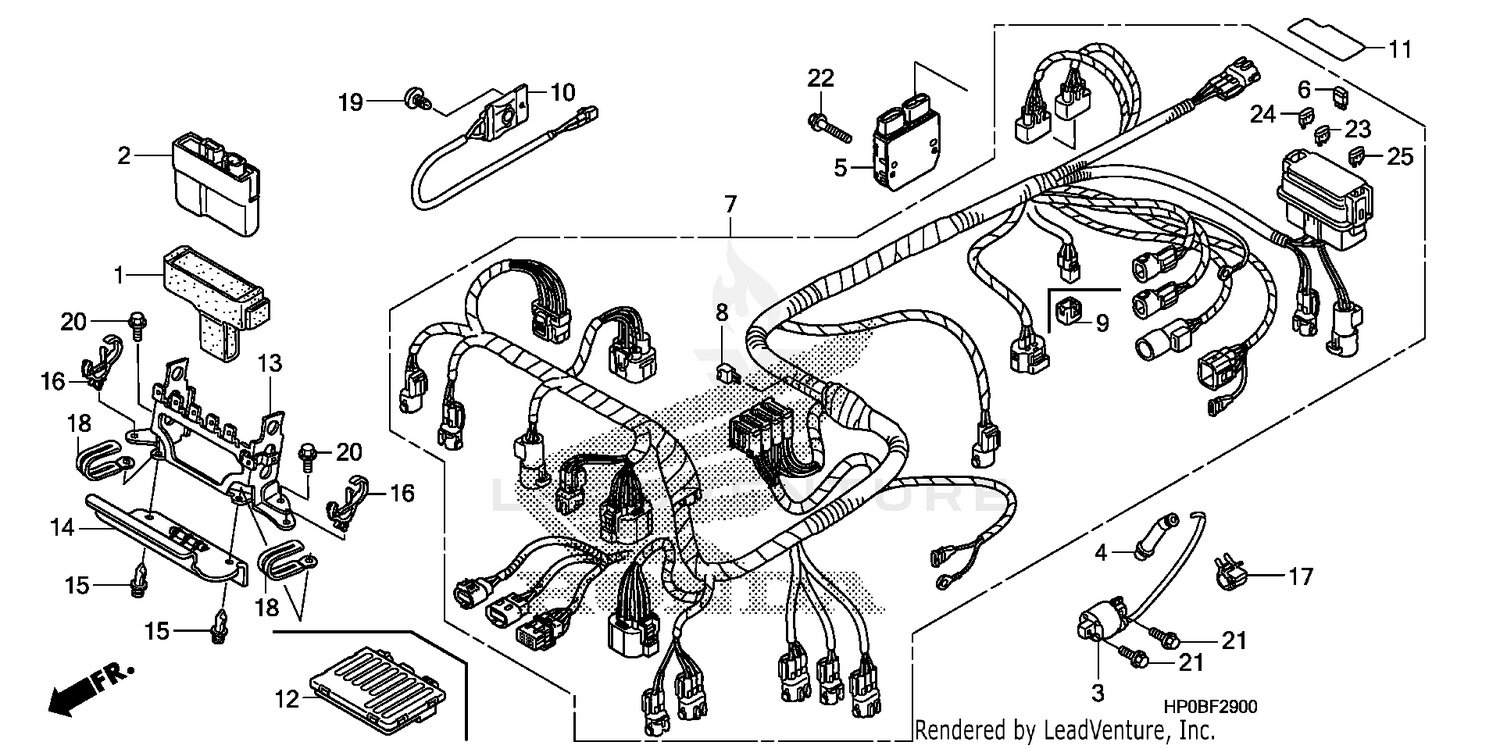

Wire Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION, C.D.I. & CHANGE UNIT
30401-HP0-A10
|
$22.62 | ||
|
Available to order. Add to View Price |
|||
|
#2
CONTROL UNIT, C.D.I. & CHANGE
30410-HP0-A01
|
$344.04 | ||
|
Available to order. Add to View Price |
|||
|
#3
COIL ASSY., IGNITION
30500-HP0-A71
|
$57.18 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP ASSY., NOISE SUPPRESSOR
30700-MBN-671
|
$33.69 | ||
|
Available to order. Add to View Price |
|||
|
#5
RECTIFIER ASSY., REGULATOR
31600-HP0-A01
|
$167.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
DIODE ASSY., THREE WAY (SUMITOMO)
31730-MAS-601
|
$13.09 | ||
|
Available to order. Add to View Price |
|||
|
#7
WIRE HARNESS
32100-HP0-E20
Superseded by 32100-HP0-E21
|
$1,028.98 | ||
|
Available to order. Add to View Price |
|||
|
#7
WIRE HARNESS
32100-HP0-E21
|
$1,028.98 | ||
|
Unavailable |
|||
|
#8
CONNECTOR, DIODE (2P) (3A)
32146-S84-003
|
$18.03 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, DUMMY (4P) (RED)
32606-GEV-761
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
SWITCH ASSY., THERMOSTAT
35250-HN4-670
|
$58.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
EPS CONTROL UNIT
39980-HP0-H51
|
$603.31 | ||
|
Available to order. Add to View Price |
|||
|
#13
STAY, ENGINE CONTROL UNIT
50269-HP0-A00
|
$86.44 | ||
|
Available to order. Add to View Price |
|||
|
#14
GUARD, ENGINE CONTROL UNIT HEAT
50271-HP0-A50
|
$7.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP, SPLASH GUARD
90653-HC4-900
|
$0.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
CLIP, HARNESS
90684-ZA0-601
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP, CABLE (10MM)
90690-GHB-641
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP, WIRE HARNESS
91404-VM6-000
|
$7.85 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP, WASHER MOUTH
91504-SD5-901
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X12)
95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X18)
95701-06018-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X28)
95701-06028-00
|
$1.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
FUSE, MINI (10A)
98200-41000
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#24
FUSE, MINI (15A)
98200-41500
|
$1.27 | ||
|
Unavailable |
|||
|
#25
FUSE, MINI (30A)
98200-43000
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
