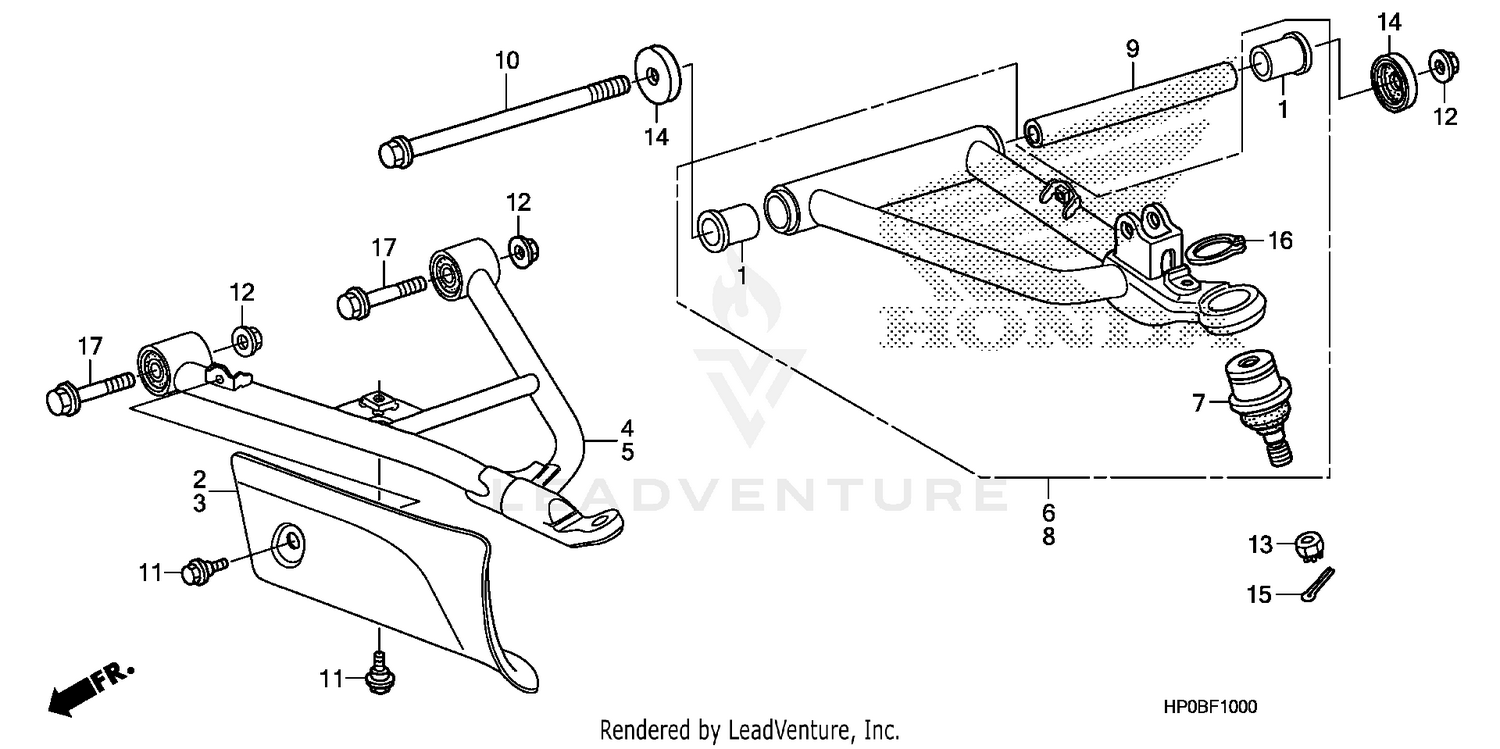

Front Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BUSH, ARM (UPPER)
51108-HP0-A00
|
$20.71 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUARD, R. FR. INBOARD
51315-HN2-B70
|
$11.22 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUARD, L. FR. INBOARD
51316-HN2-B70
|
$11.22 | ||
|
Available to order. Add to View Price |
|||
|
#4
ARM ASSY., R. FR. (LOWER)
51350-HP0-A00
|
$154.02 | ||
|
Available to order. Add to View Price |
|||
|
#5
ARM ASSY., L. FR. (LOWER)
51360-HP0-A00
|
$157.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
ARM ASSY., R. FR. (UPPER)
51370-HP0-B00
|
$169.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
JOINT A, ARM BALL
51375-HP5-601
|
$24.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
ARM ASSY., L. FR. (UPPER)
51380-HP0-B00
|
$173.36 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, ARM (UPPER)
51464-HN2-000
|
$14.11 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, ENGINE HANGER
90103-162-000
|
$14.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6MM)
90111-KT1-780
|
$17.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, SELF-LOCK (10MM)
90305-HC0-770
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, CASTLE (12MM)
90310-HB9-000
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL, RR. CUSHION CONNECTING ROD PIVOT (NOK)
91262-MA0-015
|
$13.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, SPLIT (3.0X18)
94201-30180
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
CIRCLIP (OUTER) (34MM)
94514-34000
|
$1.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, FLANGE (10X62)
90151-HC5-000
|
$9.74 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (10X62)
95801-10065-00
Superseded by 90151-HC5-000
|
$9.74 | ||
|
Unavailable |
|||
