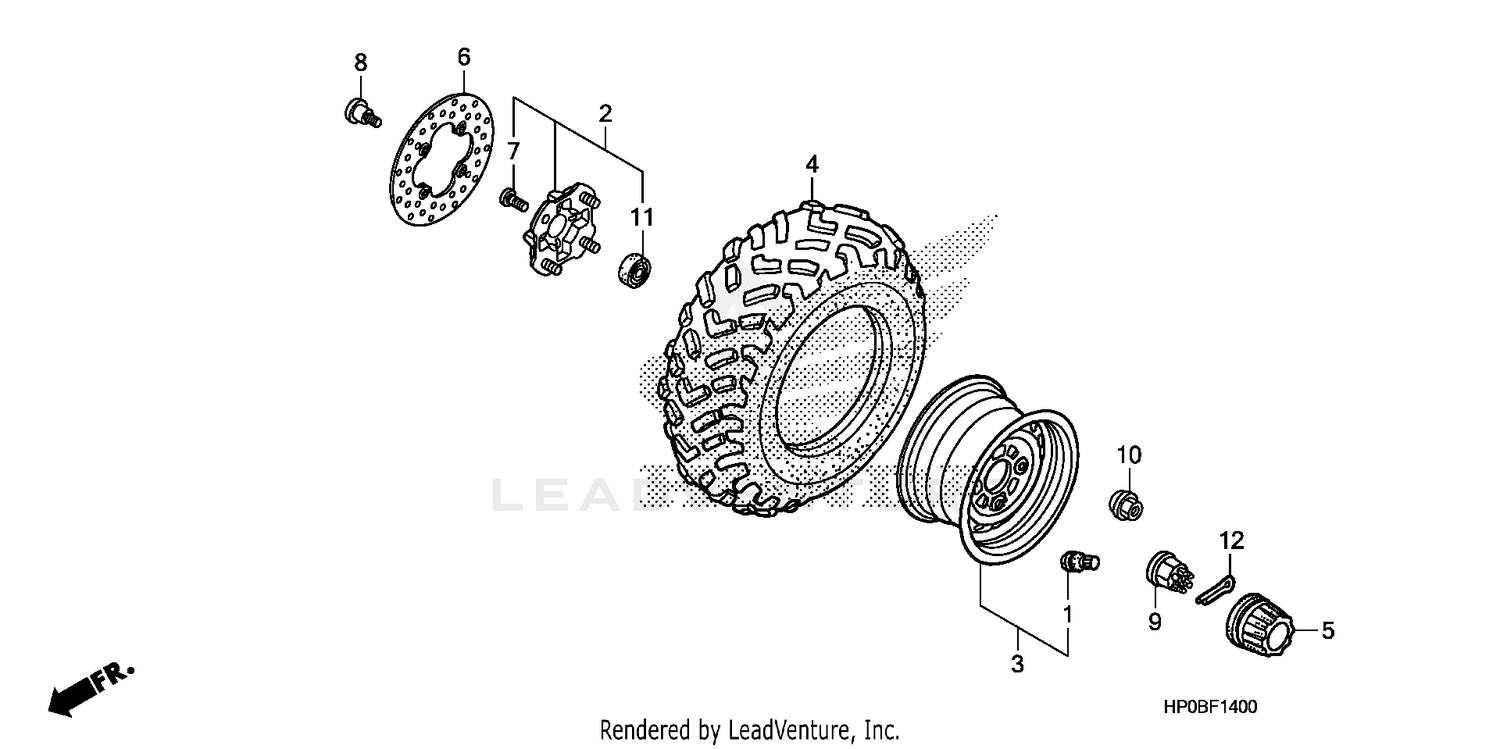

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
VALVE, RIM (TR412)
42753-HF1-670
Superseded by 42753-HL3-A00
|
$6.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
HUB SUB-ASSY., FR.
44615-HP0-A50
|
$260.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
WHEEL SUB-ASSY., FR. (BLACK)
44650-HP0-A80
|
$107.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
TIRE (25X8-12) (DUNLOP)
44711-HN2-A21
Superseded by 44711-HP0-A01
|
$96.41 | ||
|
Unavailable |
|||
|
#4
TIRE (25X8-12) (MAXXIS)
44711-HR0-F01
Superseded by 44711-HR4-AJ1
|
$94.01 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, WHEEL CENTER
44732-HC4-010
|
$27.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
DISK, FR. BRAKE
45251-HP0-A51
Superseded by 45251-HS2-A51
|
$195.61 | ||
|
Unavailable |
|||
|
#7
BOLT, WHEEL (10X30)
90103-HB3-300
|
$8.09 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FR. DISK (8X24) (SAGA)
90105-KL8-741
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FR. DISK (8X24)
90105-KR3-000
|
$7.62 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, DISK (8X24) (TSUKIBOSHI)
90105-MBB-000
Superseded by 90105-MV9-003
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, DISK (8X24) (TSUKIBOSHI)
90105-MV9-003
|
$7.80 | ||
|
Unavailable |
|||
|
#9
NUT, CASTLE (16MM)
90305-HM5-A80
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, WHEEL
90314-HM5-A10
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#11
DUST SEAL (19X22.5X10.5) (ARAI)
91263-HA7-771
|
$8.09 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, COTTER (3.0X45)
94201-30250
Superseded by 94201-30450
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, COTTER (3.0X45)
94201-30300
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#12
PIN, COTTER (3.0X45)
94201-30400
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#12
PIN, SPLIT (3.0X45)
94201-30450
|
$1.08 | ||
|
Unavailable |
|||
