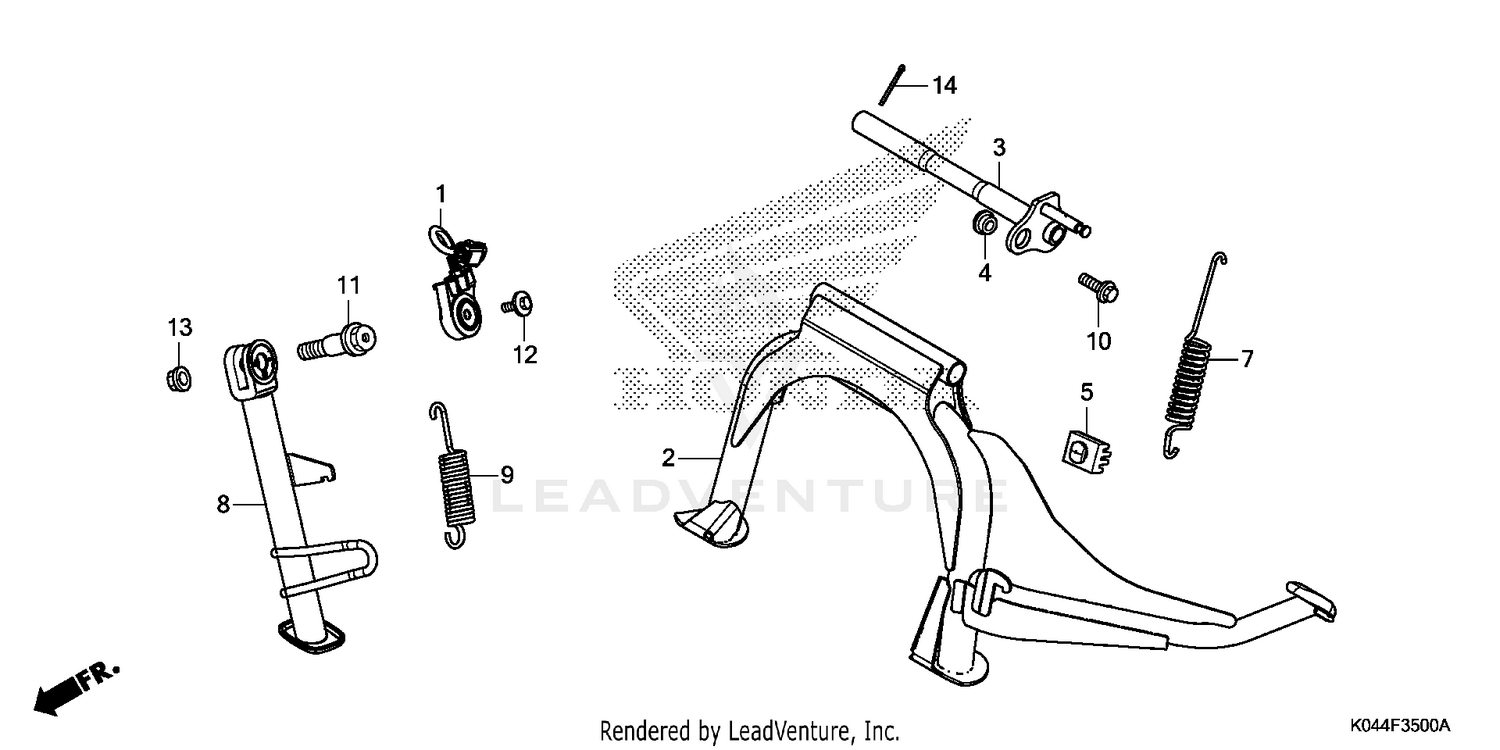

Stand Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH ASSY., SIDE STAND
35700-K04-931
|
$87.38 | ||
|
Available to order. Add to View Price |
|||
|
#2
STAND, MAIN (COO)
50500-K04-305
|
$96.36 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHAFT, MAIN STAND
50503-K04-930
|
$18.02 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, MAIN STAND SHAFT
50504-K04-930
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER, STAND STOPPER
50505-GR1-710
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, MAIN STAND
50522-K04-930
|
$10.07 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAR, SIDE STAND (COO)
50530-K04-305
|
$24.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, SIDE STAND
50541-KPH-970
|
$2.82 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT-WASHER (8X25)
90105-K04-930
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, SIDE STAND PIVOT
90108-MK6-670
|
$9.78 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, SPECIAL (6X16)
90147-MCE-950
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, SIDE STAND
90203-MF9-710
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, SPLIT (2.5X30)
94201-25250
Superseded by 94201-25300
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, COTTER (2.5MM)
94201-25300
|
$1.08 | ||
|
Unavailable |
|||
