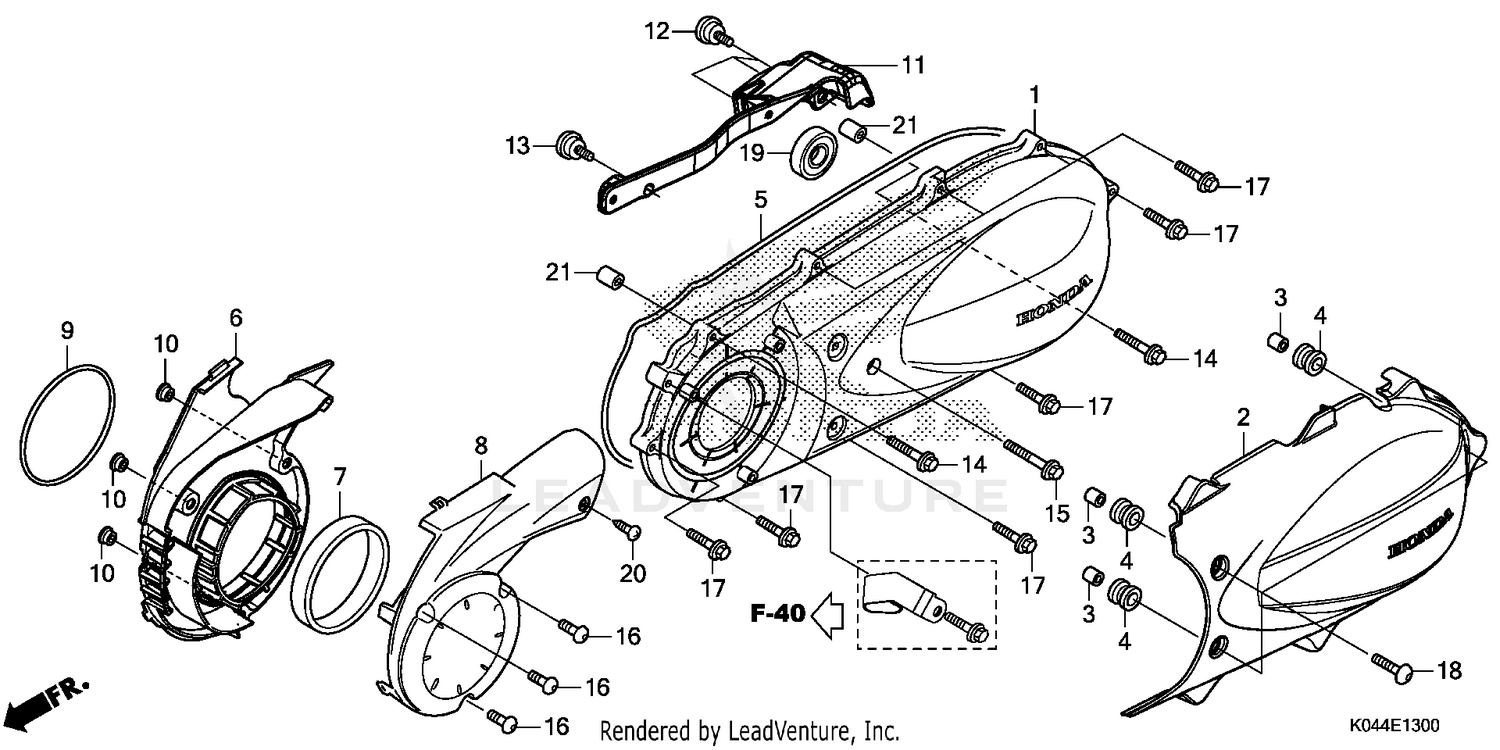

Left Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, L.
11341-K04-931
|
$158.88 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, L. SIDE (OUTER)
11350-K04-930
|
$115.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, L. SIDE COVER (OUTER)
11355-KWN-700
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUBBER, L. SIDE COVER (OUTER)
11356-KWN-700
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, L. CRANKCASE COVER
11395-KTW-900
|
$20.47 | ||
|
Available to order. Add to View Price |
|||
|
#6
DUCT COMP,BELT CO
19411-K04-930
Superseded by 19411-K04-931
|
$13.26 | ||
|
Available to order. Add to View Price |
|||
|
#6
DUCT COMP,BELT CO
19411-K04-931
|
$13.26 | ||
|
Unavailable |
|||
|
#7
ELEMENT, BELT COVER DUCT
19412-KTW-900
|
$8.22 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP,DUCT COVER
19414-KTW-901
Superseded by 19414-KTW-902
|
$15.33 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP,DUCT COVER
19414-KTW-902
|
$15.33 | ||
|
Unavailable |
|||
|
#9
SEAL, BELT COVER DUCT
19415-KTW-900
|
$4.04 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR
19416-KEY-900
|
$0.89 | ||
|
Available to order. Add to View Price |
|||
|
#11
PROTECTOR, SPEED SENSOR
32112-K04-930
|
$47.29 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, SOCKET (6X18)
90001-K04-930
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, SOCKET (6X22)
90002-K04-930
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X40) (NSHF)
90004-GHB-710
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X50) (NSHF)
90004-GHB-730
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, SPECIAL (6X18)
90006-K04-930
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X32) (NSHF)
90007-K04-930
|
$0.62 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, SPECIAL (6X22)
90085-K04-930
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING, RADIAL BALL (6004UU)
91008-K04-931
|
$20.85 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, TAPPING (4X16)
93903-34480
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
