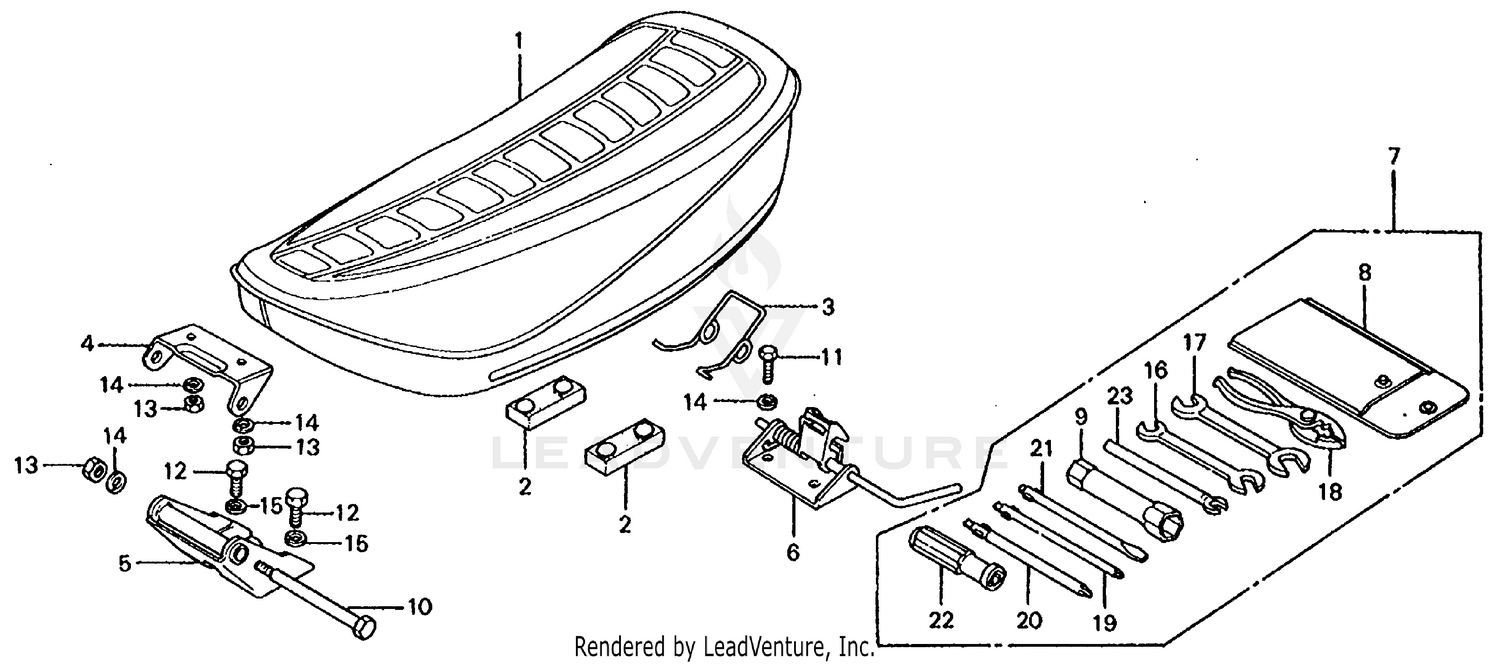

Seat + Tool Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT ASSY. (NOT AVAILABLE)
77200-098-860
|
$278.69 | ||
|
Unavailable |
|||
|
#2
RUBBER B, SEAT SETTING
77205-286-000
|
$6.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
SPRING, TOOL MOUNT
77207-098-310
|
$3.41 | ||
|
Unavailable |
|||
|
#4
BRACKET A, SEAT
77210-126-000
|
$8.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET A, SEAT
77210-126-000B
Superseded by 77210-126-000
|
$8.75 | ||
|
Unavailable |
|||
|
#5
BRACKET B, SEAT
77211-098-000
|
$13.33 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET B, SEAT
77211-098-000B
Superseded by 77211-098-000
|
$13.33 | ||
|
Unavailable |
|||
|
#6
CATCH, SEAT (NOT AVAILABLE)
77230-098-680
|
$21.03 | ||
|
Unavailable |
|||
|
#7
TOOL SET (NOT AVAILABLE)
89010-098-000
|
$13.60 | ||
|
Unavailable |
|||
|
#8
BAG, TOOL (160MM)
99008-01600
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#9
WRENCH, SPARK PLUG
89216-045-010
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, SEAT HINGE
90101-001-010
|
$2.04 | ||
|
Unavailable |
|||
|
#11
BOLT, HEX. (6X16)
92000-06016
Superseded by 92101-06016-0A
|
$1.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT, HEX. (6X16)
92000-06016-0A
Superseded by 92101-06016-0A
|
$1.53 | ||
|
Unavailable |
|||
|
#11
BOLT, HEX. (6X16)
92000-06016-1A
Superseded by 92101-06016-0A
|
$1.53 | ||
|
Unavailable |
|||
|
#11
BOLT, HEX. (6X16)
92100-06016-0A
Superseded by 92101-06016-0A
|
$1.53 | ||
|
Unavailable |
|||
|
#11
BOLT, HEX. (6X16)
92101-06016-0A
|
$1.53 | ||
|
Unavailable |
|||
|
#11
BOLT, HEX. (6X16)
92200-06016-0A
Superseded by 92101-06016-0A
|
$1.53 | ||
|
Unavailable |
|||
|
#12
BOLT, HEX. (8X16)
92000-08016-0A
Superseded by 92101-08016-0A
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEX. (8X16)
92101-08016-0A
|
$1.55 | ||
|
Unavailable |
|||
|
#13
NUT, HEX. (6MM)
90310-KA3-711
Superseded by 94001-06200-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
NUT, HEX. (6MM)
94000-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#13
NUT, HEX. (6MM)
94001-06000
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#13
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#13
NUT, HEX. (6MM)
94001-06008-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#13
NUT, HEX. (6MM)
94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#13
NUT, HEX. (6MM)
94030-06000
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#14
WASHER, SPRING (6MM)
94111-06000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WASHER, SPRING (8MM)
94111-08000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WRENCH (10X12) (OPEN END)
99001-10120
|
$5.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WRENCH (14X17) (OPEN END)
99001-14170
|
$9.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
PLIERS (135) (KOWA)
99002-13500
Superseded by 89210-GBJ-J10
|
$16.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREWDRIVER 1, PHILLIPS (NO.2)
99003-10000
|
$4.12 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
SCREWDRIVER 2, PHILLIPS (NO.3)
99003-20000
|
$4.12 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREWDRIVER 3, STRAIGHT SLOT (NO.2)
99003-30000
|
$4.12 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
GRIP
99003-50000
|
$4.12 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BAR B, HANDLE
99005-02000
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
