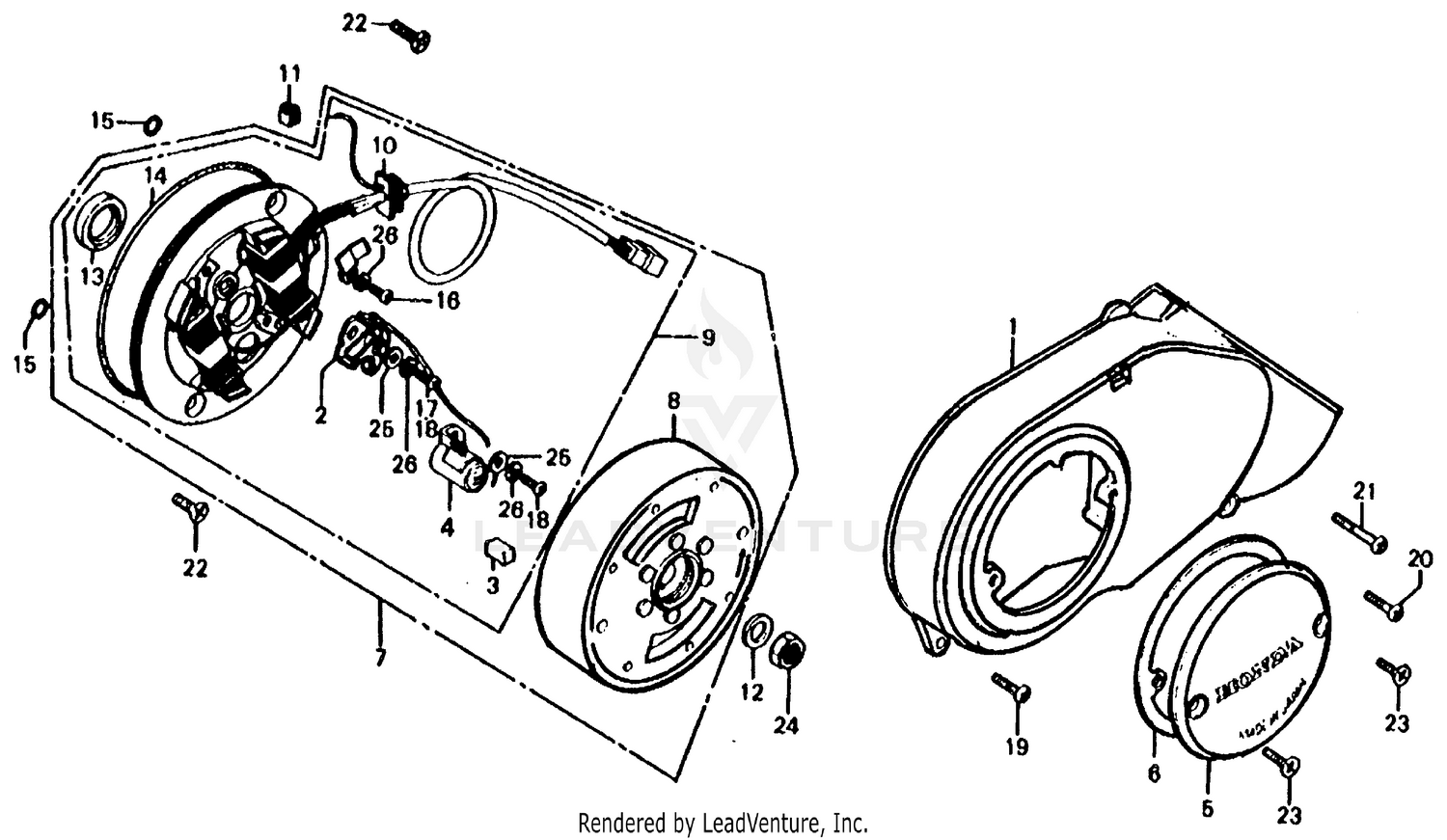

Left Crankcase Cover + Alternator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, L. CRANKCASE
11341-098-010
Superseded by 11341-165-750
|
$93.13 | ||
|
Unavailable |
|||
|
#1
COVER, L. CRANKCASE
11341-165-750
|
$93.13 | ||
|
Unavailable |
|||
|
#2
POINTS (HITACHI)
30202-041-015
|
$35.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
FELT, OIL (HITACHI)
30205-041-005
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#4
CONDENSER (HITACHI)
30250-041-005
|
$29.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
COVER, POINTS
30371-098-750
|
$30.96 | ||
|
Unavailable |
|||
|
#6
GASKET, POINTS COVER
30374-040-010
Superseded by 30374-040-020
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, POINTS COVER
30374-040-020
|
$3.93 | ||
|
Unavailable |
|||
|
#6
GASKET, POINTS COVER
30374-040-306
Superseded by 30374-040-020
|
$3.93 | ||
|
Unavailable |
|||
|
#7
ALTERNATOR ASSY. (NOT AVAILABLE)
31100-098-782
|
$148.16 | ||
|
Unavailable |
|||
|
#8
FLYWHEEL (NOT AVAILABLE)
31110-098-782
|
$137.87 | ||
|
Unavailable |
|||
|
#9
STATOR ASSY. (NOT AVAILABLE)
31120-098-781
|
$89.74 | ||
|
Unavailable |
|||
|
#10
GROMMET, WIRE
32971-035-000
|
$2.78 | ||
|
Available to order. Add to View Price |
|||
|
#11
GROMMET, NEUTRAL SWITCH WIRE
32981-035-000
|
$1.80 | ||
|
Unavailable |
|||
|
#12
WASHER, MAGNET FIXING
90426-035-000
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
OIL SEAL (18.9X30X5)
91202-GB4-682
Superseded by 91202-GK4-722
|
$7.71 | ||
|
Available to order. Add to View Price |
|||
|
#13
OIL SEAL (18.9X30X5)
91202-GK4-722
|
$7.71 | ||
|
Unavailable |
|||
|
#13
OIL SEAL (18.9X30X5)
91202-035-003
Superseded by 91202-GK4-722
|
$7.71 | ||
|
Unavailable |
|||
|
#13
OIL SEAL (18.9X30X5)
91202-035-005
Superseded by 91202-GK4-722
|
$7.71 | ||
|
Unavailable |
|||
|
#14
O-RING (107X2) (ARAI)
91301-035-000
Superseded by 91301-035-003
|
$8.85 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (107X2)
91301-035-003
|
$8.85 | ||
|
Unavailable |
|||
|
#15
O-RING (6X1.7)
91317-171-003
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING (6X1.7) (ARAI)
91317-703-000
Superseded by 91317-171-003
|
$3.55 | ||
|
Unavailable |
|||
|
#16
SCREW, PAN (4X6)
93500-04005-0A
Superseded by 93500-04006-0A
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SCREW, PAN (4X6)
93500-04006
Superseded by 93500-04006-0A
|
$0.87 | ||
|
Unavailable |
|||
|
#16
SCREW, PAN (4X6)
93500-04006-0A
|
$0.87 | ||
|
Unavailable |
|||
|
#16
SCREW, PAN (4X6)
93500-04006-1A
Superseded by 93500-04006-0A
|
$0.87 | ||
|
Unavailable |
|||
|
#17
SCREW, PAN (4X8)
93500-04008-0A
|
$0.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SCREW, PAN (4X8)
93500-04009-0A
Superseded by 93500-04008-0A
|
$0.92 | ||
|
Unavailable |
|||
|
#18
SCREW, PAN (4X10)
93500-04010-0A
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SCREW, PAN (6X20)
93500-06020
Superseded by 93500-06020-0A
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN (6X20)
93500-06020-0A
|
$1.07 | ||
|
Unavailable |
|||
|
#20
SCREW, PAN (6X28)
93500-06028
Superseded by 93500-06028-0A
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN (6X28)
93500-06028-0A
|
$1.36 | ||
|
Unavailable |
|||
|
#21
SCREW, PAN (6X35)
93500-06035-0A
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SCREW, PAN (6X35)
93500-06036
Superseded by 93500-06035-0A
|
$1.15 | ||
|
Unavailable |
|||
|
#22
SCREW, FLAT (6X16)
93600-06016
Superseded by 93600-06016-0A
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
SCREW, FLAT (6X16) (YAMADA)
93600-06016-0A
|
$1.03 | ||
|
Unavailable |
|||
|
#23
SCREW, OVAL (5X12)
93700-05012-0A
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, HEX. (10MM)
94030-10000
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLAIN (4MM)
94101-04000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
WASHER, SPRING (4MM)
94111-04000
|
$1.12 | ||
|
Available to order. Add to View Price |
|||
