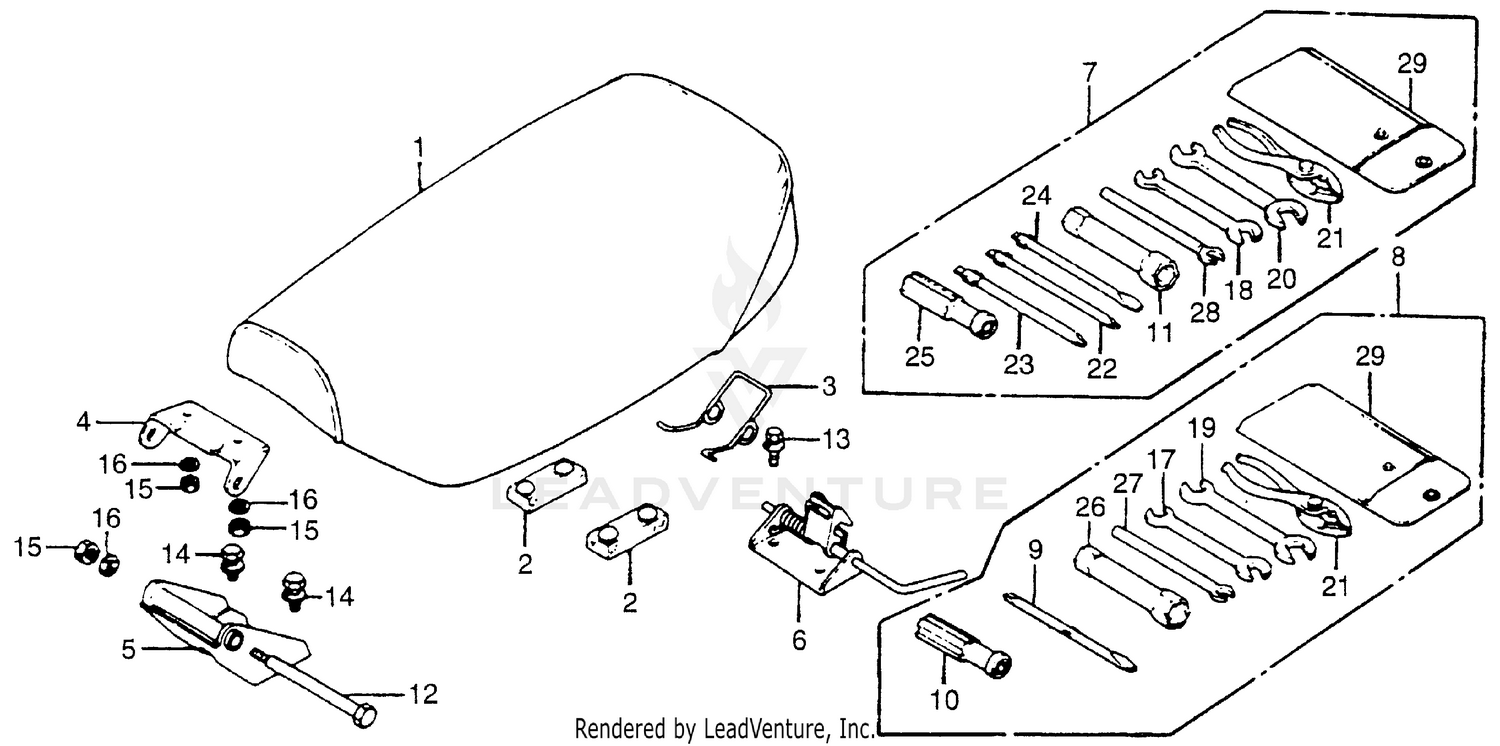

Seat + Tools Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT
77200-126-770
Superseded by 77200-126-940
|
$243.02 | ||
|
Unavailable |
|||
|
#2
RUBBER B, SEAT SETTING
77205-286-000
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, TOOL MOUNT
77207-098-310
|
$3.41 | ||
|
Unavailable |
|||
|
#4
BRACKET A, SEAT
77210-126-000
|
$8.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET A, SEAT
77210-126-000B
Superseded by 77210-126-000
|
$8.75 | ||
|
Unavailable |
|||
|
#5
BRACKET B, SEAT
77211-098-000
|
$13.33 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET B, SEAT
77211-098-000B
Superseded by 77211-098-000
|
$13.33 | ||
|
Unavailable |
|||
|
#6
CATCH, SEAT (NOT AVAILABLE)
77230-098-680
|
$21.03 | ||
|
Unavailable |
|||
|
#8
TOOL SET (NOT AVAILABLE)
89010-126-870
|
$11.69 | ||
|
Unavailable |
|||
|
#9
SHAFT, SCREWDRIVER
89102-538-000
|
$7.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
GRIP
89103-538-000
|
$4.98 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, SEAT HINGE
90101-001-010
|
$2.04 | ||
|
Unavailable |
|||
|
#13
BOLT-WASHER (6X16)
93401-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT-WASHER (6X16)
93491-06016-00
Superseded by 93401-06016-00
|
$1.70 | ||
|
Unavailable |
|||
|
#14
BOLT-WASHER (8X16)
93412-08016-00
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT-WASHER (8X16)
93492-08016-00
Superseded by 93412-08016-00
|
$1.31 | ||
|
Unavailable |
|||
|
#15
NUT, HEX. (6MM)
90310-KA3-711
Superseded by 94001-06200-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
NUT, HEX. (6MM)
94000-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#15
NUT, HEX. (6MM)
94001-06000
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#15
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#15
NUT, HEX. (6MM)
94001-06008-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#15
NUT, HEX. (6MM)
94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#15
NUT, HEX. (6MM)
94030-06000
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#16
WASHER, SPRING (6MM)
94111-06000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WRENCH (8X12) (OPEN END)
99001-08120
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#19
WRENCH (10X14) (OPEN END)
99001-10140
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLIERS (135) (KOWA)
99002-13500
Superseded by 89210-GBJ-J10
|
$16.45 | ||
|
Available to order. Add to View Price |
|||
|
#26
WRENCH, BOX (P16X17)
99004-16170
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#27
BAR A, HANDLE
99005-01000
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#29
BAG, TOOL (160MM)
99008-01600
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
