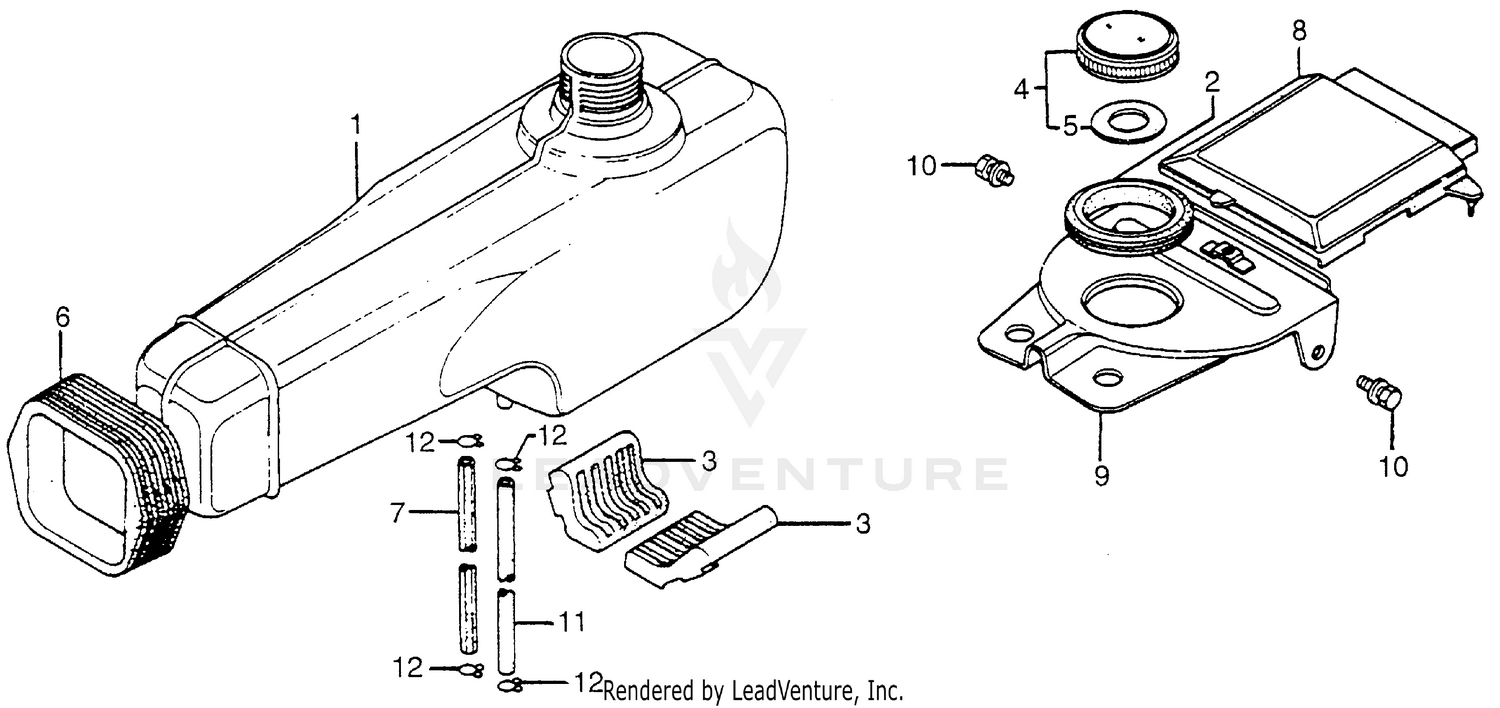

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK, FUEL
17500-098-020B
Superseded by 17500-098-030
|
$105.71 | ||
|
Unavailable |
|||
|
#1
TANK, FUEL
17500-098-030
|
$105.71 | ||
|
Unavailable |
|||
|
#2
GASKET, FUEL FILLER NECK
17512-086-010
|
$8.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
PAD, FUEL TANK
17611-098-310
|
$7.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, FUEL FILLER
17620-096-702
Superseded by 17620-171-020
|
$9.11 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, FUEL FILLER
17620-171-000
Superseded by 17620-171-020
|
$9.11 | ||
|
Unavailable |
|||
|
#4
CAP, FUEL FILLER
17620-171-010
Superseded by 17620-171-020
|
$9.11 | ||
|
Unavailable |
|||
|
#5
GASKET
17631-096-700
Superseded by 17631-096-702
|
$2.96 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
GASKET
17631-096-701
Superseded by 17631-096-702
|
$2.96 | ||
|
Unavailable |
|||
|
#6
BAND, FUEL TANK SETTING
17670-098-010
|
$15.97 | ||
|
Unavailable |
|||
|
#7
TUBE, RESERVE (NOT AVAILABLE)
17681-126-760
|
$13.17 | ||
|
Unavailable |
|||
|
#8
LID, FRAME *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE)
50661-098-940B
Superseded by 50661-098-940ZA
|
$14.11 | ||
|
Available to order. Add to View Price |
|||
|
#8
LID, FRAME *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE)
50661-098-940ZA
|
$14.11 | ||
|
Unavailable |
|||
|
#9
LID, FUEL TANK
50665-098-030
|
$19.20 | ||
|
Unavailable |
|||
|
#9
LID, FUEL TANK
50665-098-030B
Superseded by 50665-098-030
|
$19.20 | ||
|
Unavailable |
|||
|
#9
LID, FUEL TANK
50665-098-030ZA
Superseded by 50665-098-030
|
$19.20 | ||
|
Unavailable |
|||
|
#10
BOLT-WASHER (6X12)
93401-06012-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT-WASHER (6X12)
93491-06012-00
Superseded by 93401-06012-00
|
$1.70 | ||
|
Unavailable |
|||
|
#11
BULK HOSE, FUEL (5.5X3000) (5.5X250)
95001-55003-60M
|
$57.33 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP, TUBE (B10)
95002-02100
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
