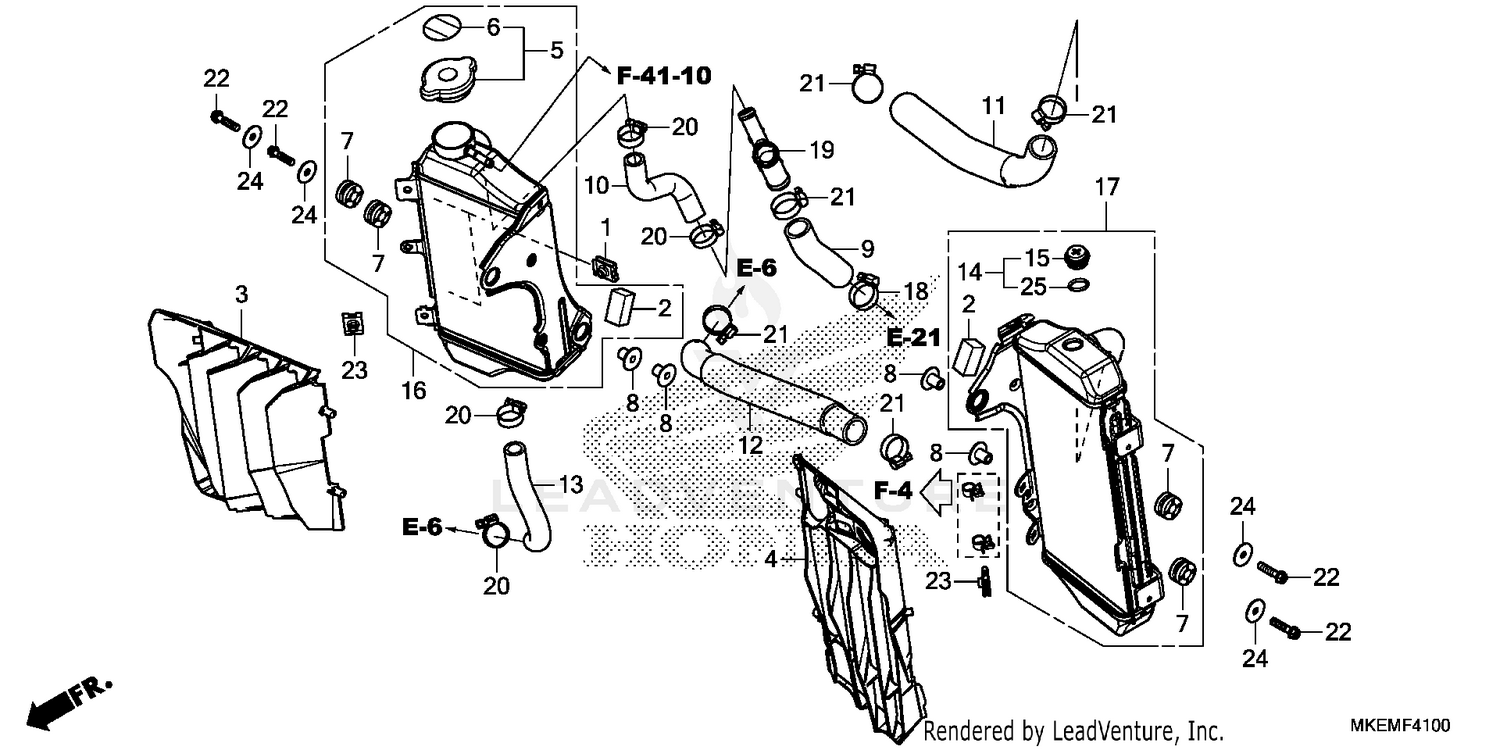

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT, SETTING (6MM)
19014-KEA-003
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER, RADIATOR (UPPER)
19021-MEN-A30
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#3
GRILLE, R. RADIATOR
19033-MKE-A50
|
$45.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
GRILLE, L. RADIATOR
19034-MKE-A50
|
$45.69 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, RADIATOR
19037-GEE-710
|
$36.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
LABEL, RADIATOR CAP
19046-PAA-A00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER, RADIATOR MOUNTING
19051-KA3-830
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, RADIATOR MOUNTING
19052-MAC-680
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE A, WATER
19061-MKE-A50
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE B, WATER
19062-MKE-A50
|
$6.87 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE C, WATER
19063-MKE-A50
|
$33.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE D, WATER
19064-MKE-A50
|
$32.85 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE E, WATER
19065-MKE-A50
|
$6.87 | ||
|
Available to order. Add to View Price |
|||
|
#14
PETCOCK ASSY., DRAIN
19070-MEC-003
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PETCOCK, DRAIN
19071-MEC-003
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
RADIATOR ASSY., R.
19100-MKE-A50
|
$355.98 | ||
|
Available to order. Add to View Price |
|||
|
#17
RADIATOR ASSY., L.
19160-MKE-A50
|
$355.98 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP, WATER HOSE (D27)
19502-MKE-A00
|
$10.42 | ||
|
Available to order. Add to View Price |
|||
|
#19
JOINT, HOSE THREE WAY
19503-MKE-A50
|
$40.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP, WATER HOSE (D21)
19505-MKE-A50
|
$9.93 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP B, WATER HOSE
19506-KS6-700
|
$9.42 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X25)
90020-GHB-680
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, CLIP (6MM)
90201-KPR-901
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, RADIATOR MOUNTING
90403-KA3-830
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING (9.8X1.9)
91353-MEC-003
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
