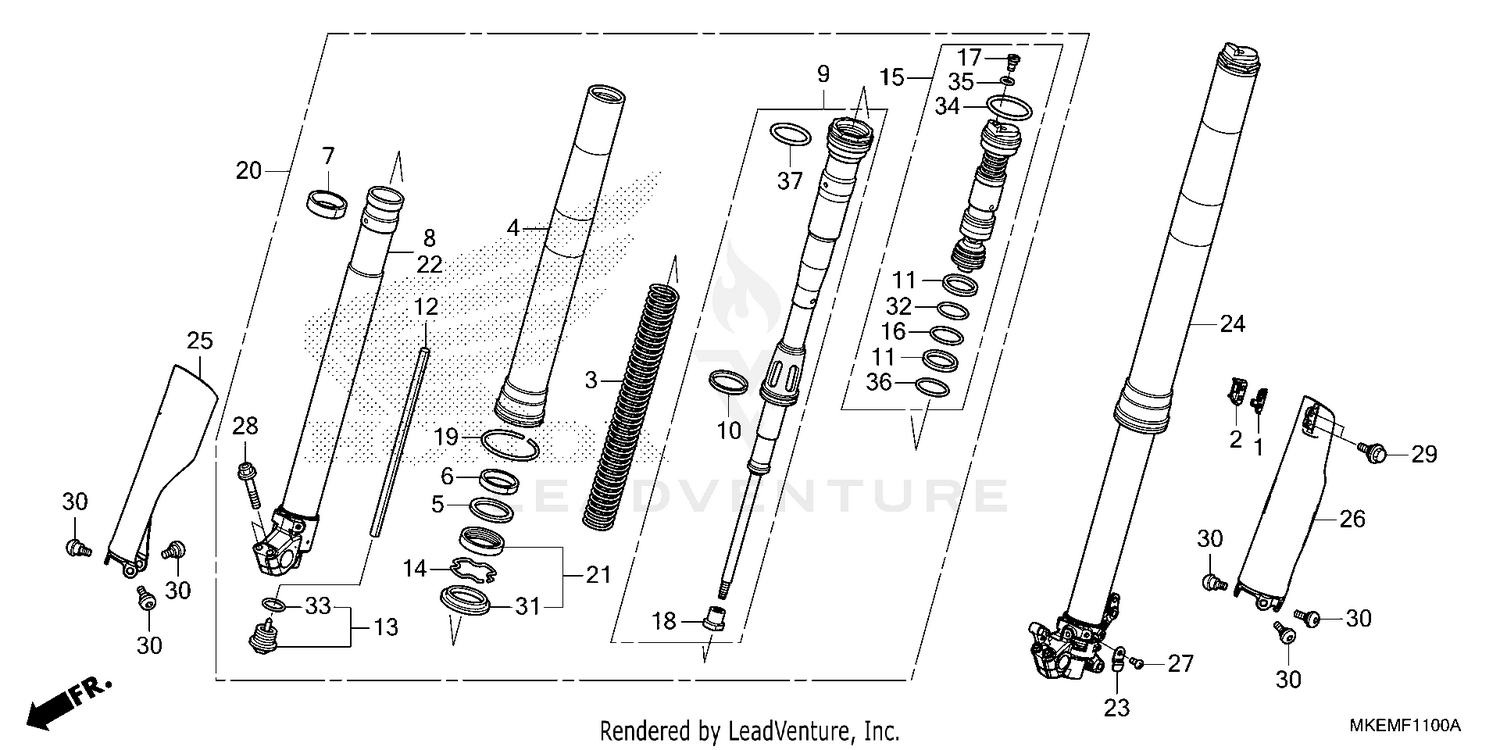

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP A, BRAKE HOSE
45461-KZZ-J80
|
$7.76 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLAMP B, BRAKE HOSE
45462-KZZ-J80
|
$9.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, FR. FORK (4.8N/MM)
51401-MKE-A01
|
$127.24 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, FR. FORK (5.2N/MM)
51401-MKE-A61
|
$129.07 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, FR. FORK (5.0N/MM)
51401-MKE-A71
|
$127.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUBE (OUTER) (BLACK)
51410-MKE-A51
|
$630.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING, BACK-UP
51412-KRN-A91
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH, GUIDE
51414-KRN-A91
|
$15.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSH, SLIDER
51415-KRN-A91
|
$15.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIPE, R. SLIDE
51420-MKE-A51
|
$484.64 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER, FR.
51430-MKE-A51
|
$507.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSH B, SLIDER
51431-MKE-A01
|
$14.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUSH, SLIDER
51436-KRN-A91
|
$15.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, REBOUND NEEDLE
51438-KRN-A91
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, CENTER
51440-KRN-A91
|
$47.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
RING, OIL SEAL STOP
51447-KRN-A91
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT ASSY., FR. FORK
51450-MKE-A41
|
$258.82 | ||
|
Available to order. Add to View Price |
|||
|
#16
RING, PISTON
51453-KRN-A91
|
$11.44 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, PLUG
51456-KZ3-J41
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, LOCK
51458-KRN-A91
|
$13.47 | ||
|
Available to order. Add to View Price |
|||
|
#19
RING, WEAR
51476-KRN-A91
|
$9.71 | ||
|
Available to order. Add to View Price |
|||
|
#20
FORK SUB-ASSY., R. FR.
51480-MKE-A41
|
$1,715.85 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAL SET, FR. FORK
51490-KRN-A91
|
$32.00 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIPE, L. SLIDE
51520-MKE-A51
|
$484.64 | ||
|
Available to order. Add to View Price |
|||
|
#23
STAY, AXLE HOLDER
51521-MKE-A51
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#24
FORK SUB-ASSY., L. FR.
51580-MKE-A41
|
$1,715.85 | ||
|
Available to order. Add to View Price |
|||
|
#25
PROTECTOR, R. FR. FORK *R292R* (EXTREME RED)
51610-MKE-A70ZA
|
$102.55 | ||
|
Available to order. Add to View Price |
|||
|
#26
PROTECTOR, L. FR. FORK *R292R* (EXTREME RED)
51620-MKE-A70ZA
|
$87.56 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN (4X6)
90101-MKE-A50
|
$0.89 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (8X40)
90108-KZ4-J40
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (6MM)
90113-KZZ-900
|
$0.62 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, PROTECTOR
90113-MAC-780
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#31
DUST SEAL
91254-KRN-A91
|
$15.40 | ||
|
Available to order. Add to View Price |
|||
|
#32
O-RING (31.6X1.8)
91256-KRN-A91
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#33
O-RING (22.1X1.9)
91257-KRN-A91
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#34
O-RING (42.2X2.4)
91258-GF4-003
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#35
O-RING (3.5X1.5)
91301-KZ3-711
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#36
O-RING (35.5X2)
91302-MA3-661
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#37
O-RING (47.2X2.4)
91351-KRN-A41
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
