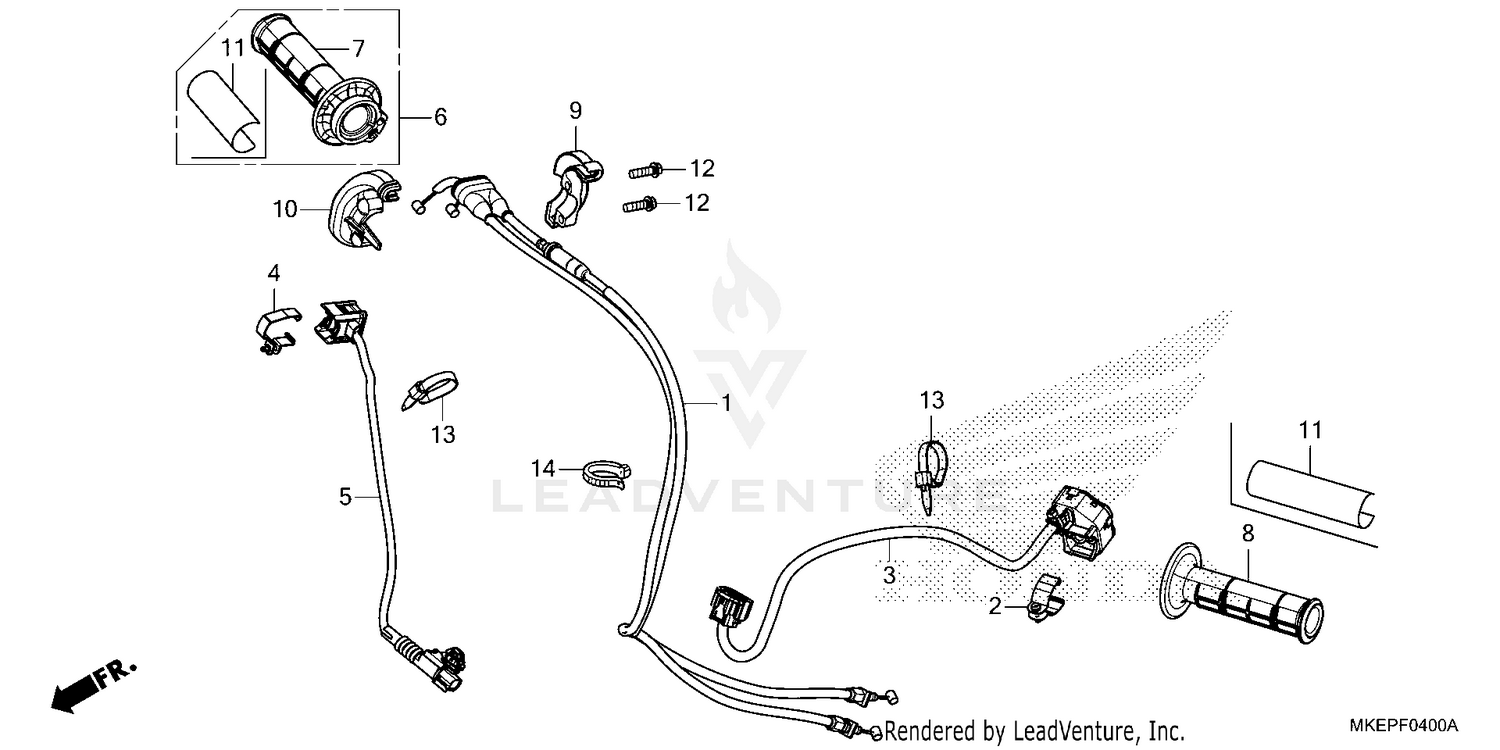

Switch@cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CABLE, THROTTLE
17910-MKE-AF1
|
$64.35 | ||
|
Available to order. Add to View Price |
|||
|
#2
BAND SET
35131-MKE-AF1
|
$12.64 | ||
|
Available to order. Add to View Price |
|||
|
#3
SWITCH SET, ENGINE STOP & INDICATOR
35135-MKE-AF1
|
$193.71 | ||
|
Available to order. Add to View Price |
|||
|
#4
BAND SET
35151-MKE-AF1
|
$13.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
SWITCH SET, STARTER
35155-MKE-AF1
|
$42.58 | ||
|
Available to order. Add to View Price |
|||
|
#6
GRIP, THROTTLE
53140-KRN-A30
|
$27.31 | ||
|
Available to order. Add to View Price |
|||
|
#7
GRIP, R. HANDLE (COO)
53165-KRN-A30
Superseded by 53165-MEN-305
|
$13.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
GRIP, L. HANDLE
53166-KRN-A30
|
$12.53 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOUSING, THROTTLE (UPPER)
53167-MKE-A00
|
$34.18 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOUSING, THROTTLE (LOWER)
53168-MKE-A00
|
$34.18 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X20)
90021-GHB-660
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#13
BAND, WIRE (BLACK)
90652-KT1-771
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND, SUCTION HOSE (BLACK) (Honda Code 3522752)
90679-SG9-E01
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
