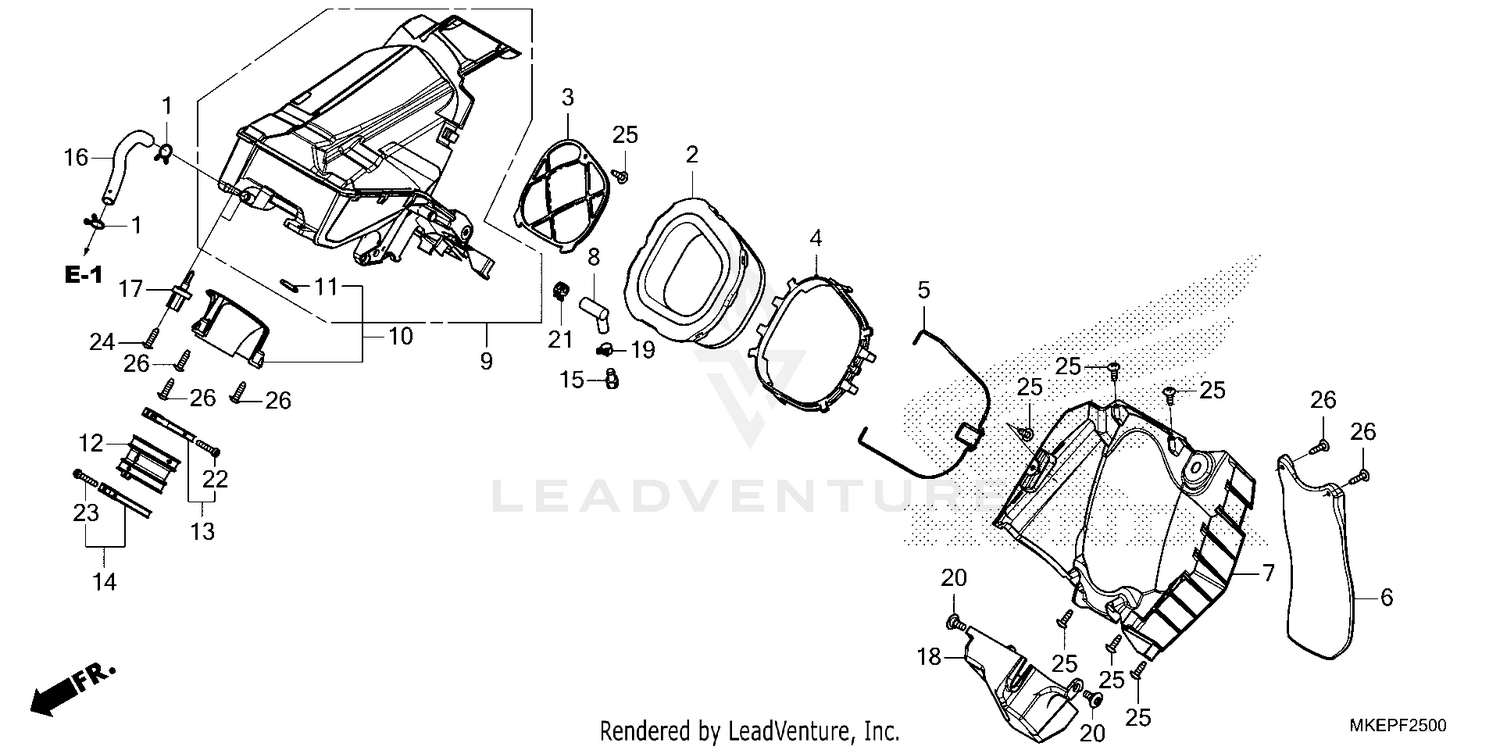

Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, OIL DRAIN TUBE
15771-551-000
|
$11.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
ELEMENT, AIR CLEANER
17213-MKE-AF0
|
$60.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
GUARD, ELEMENT
17215-MKE-AF0
|
$25.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
BASE, ELEMENT
17216-MKE-AF0
|
$14.57 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, ELEMENT SETTING
17217-MKE-AF0
|
$22.53 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPLASH GUARD
17218-MKE-AF0
|
$29.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOUSING, AIR CLEANER (LOWER)
17221-MKE-AF0
|
$40.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
TUBE, DRAIN
17227-MKE-AF0
|
$8.82 | ||
|
Available to order. Add to View Price |
|||
|
#9
CASE SUB-ASSY.
17231-K95-AA0
|
$130.24 | ||
|
Unavailable |
|||
|
#10
FUNNEL SUB-ASSY.
17232-MKE-AS0
|
$40.04 | ||
|
Unavailable |
|||
|
#11
SEAL, FUNNEL
17252-MKE-AF0
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#12
TUBE, AIR CLEANER CONNECTING
17253-MKE-AF0
|
$26.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
BAND, AIR CLEANER CONNECTING TUBE (64)
17254-MKE-A00
|
$16.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND, AIR CLEANER CONNECTING TUBE (60MM)
17255-MEN-A70
|
$18.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLUG, BREATHER TUBE
17370-419-700
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#16
TUBE, BREATHER
17371-MKE-AF0
|
$11.78 | ||
|
Available to order. Add to View Price |
|||
|
#17
SENSOR ASSY., AIR TEMPERATURE
37880-KWW-C01
|
$54.02 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, ELECTRONIC CONTROL UNIT
38775-MKE-AF0
|
$21.16 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP, MASTER CYLINDER OIL HOSE
43514-KS6-701
|
$15.89 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FR. DISK COVER (FOR RR.)
90114-MAC-780
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP, TUBE (D14.5)
91406-MS8-000
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN (4X25)
93500-04025-0G
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN (4X30)
93500-04030-0G
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, TAPPING (5X20)
93911-25520
|
$0.89 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, TAPPING (5X16) (PO)
93913-25480
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, TAPPING (5X20)
93913-25580
|
$1.02 | ||
|
Available to order. Add to View Price |
|||
