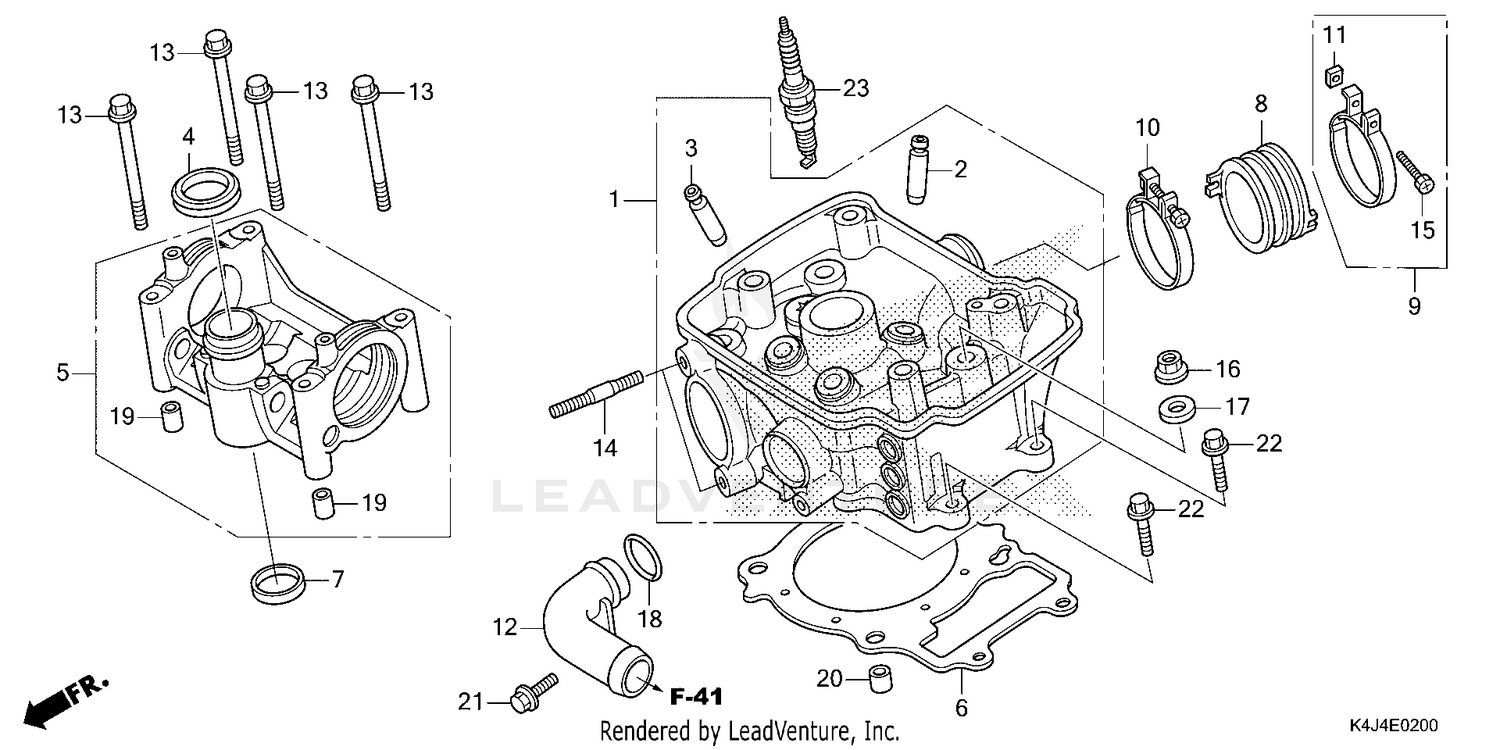

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD
12200-KSE-A70
|
$514.83 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE (OVER SIZE)
12204-KSE-P00
|
$15.04 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, EX. VALVE (OVER SIZE)
12205-KSE-P00
|
$16.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAL, RING
12226-MEB-670
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOLDER, CAMSHAFT
12240-KSE-670
|
$153.24 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, CYLINDER HEAD
12251-KSE-671
|
$24.16 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, PLUG HOLE
12395-KSE-670
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
INSULATOR, CARBURETOR
16210-KSE-670
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND A, INSULATOR
16216-MCZ-000
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND B, INSULATOR
16218-MCW-000
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, SQUARE (5MM) (GQ51B C)
16222-MV4-300
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIPE, WATER
19523-KSE-670
|
$27.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X73)
90003-KSE-670
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, STUD (7X25)
90004-KCW-851
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, RECESSED (5X28) (GQ51B C)
90023-MM5-000
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, FLANGE (8MM)
90202-KGB-610
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLAIN (8MM)
90501-MK4-600
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING (15X2.5)
91301-MY9-003
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING (15X2.5)
91302-028-000
Superseded by 91301-MY9-003
|
$2.73 | ||
|
Unavailable |
|||
|
#19
PIN A, DOWEL (8X10)
94301-08100
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, DOWEL (10X16) (Honda Code 0058206)
94301-10160
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X14)
96001-06014-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X22)
96001-06022-00
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SPARK PLUG (CR8EH9) (NGK)
98059-58916
|
$9.86 | ||
|
Unavailable |
|||
|
#23
SPARK PLUG (CR9EH-9) (NGK)
98059-58926
Superseded by 98059-59916
|
$9.86 | ||
|
Unavailable |
|||
|
#23
SPARK PLUG (CR9EH-9) (NGK)
98059-59910
Superseded by 98059-59916
|
$9.86 | ||
|
Unavailable |
|||
|
#23
SPARK PLUG (CR9EH-9) (NGK)
98059-59916
|
$9.86 | ||
|
Unavailable |
|||
|
#23
SPARK PLUG (CR9EH-9) (NGK)
98059-59926
Superseded by 98059-59916
|
$9.86 | ||
|
Unavailable |
|||
