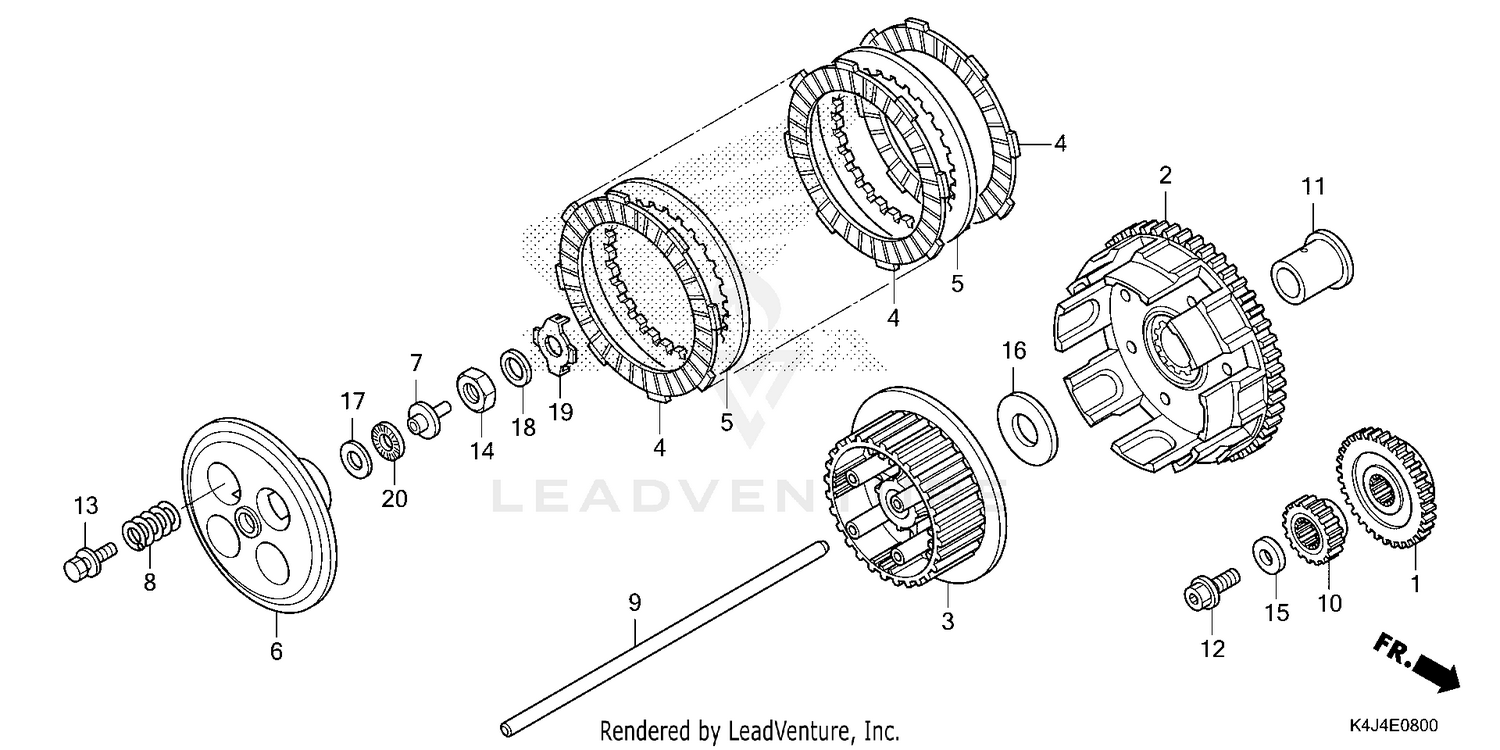

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, BALANCER DRIVE (32T)
13415-KSE-670
|
$91.76 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLUTCH OUTER
22100-KSE-A70
|
$271.15 | ||
|
Available to order. Add to View Price |
|||
|
#3
CENTER, CLUTCH
22120-KSE-670
|
$74.78 | ||
|
Available to order. Add to View Price |
|||
|
#4
DISK, CLUTCH FRICTION
22201-GBF-B40
|
$13.96 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, CLUTCH
22321-KSE-670
|
$13.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, CLUTCH PRESSURE
22351-KSE-670
|
$53.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIECE, CLUTCH LIFTER
22352-KSE-670
|
$29.38 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, CLUTCH
22401-KSE-670
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
ROD, CLUTCH LIFTER
22851-KSE-670
|
$33.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, PRIMARY DRIVE (17T)
23121-KSE-670
|
$65.58 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, CLUTCH (OUTER)
28242-KSE-670
|
$16.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, SPECIAL (10X24)
90013-KSE-670
|
$7.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT-WASHER (6X25)
90022-MBG-D00
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT (14MM)
90302-KSE-670
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLAIN (10MM)
90402-KSE-670
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, THRUST (17MM)
90407-KSE-670
|
$5.56 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, THRUST (10X24X1)
90445-KSE-671
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, THRUST (14MM)
90451-KSE-670
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, LOCK
90461-KSE-670
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, NEEDLE (12MM)
91006-KSE-671
|
$7.40 | ||
|
Available to order. Add to View Price |
|||
