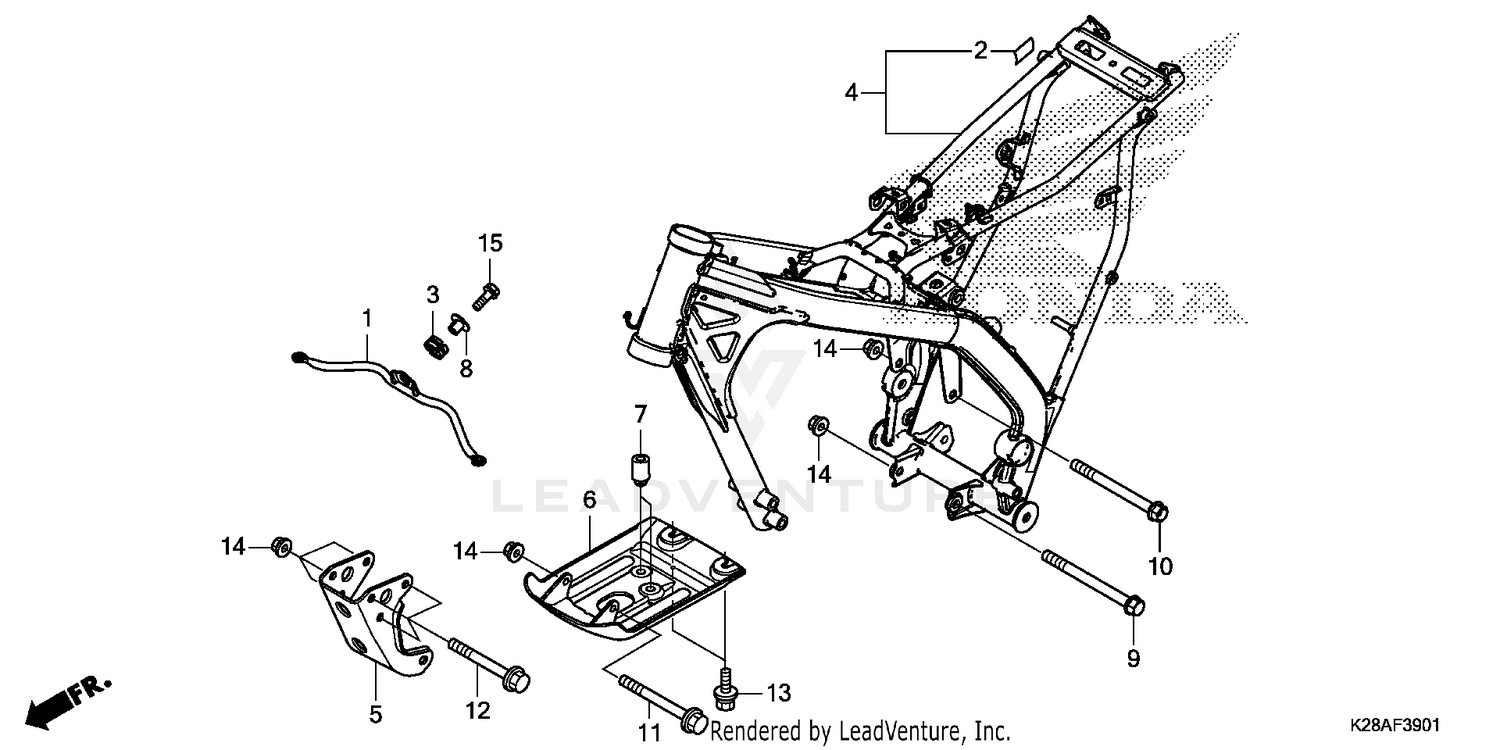

Frame (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAY, SHROUD
17541-K28-A60
|
$25.85 | ||
|
Available to order. Add to View Price |
|||
|
#2
FILM, PROTECTOR
17556-K28-910
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#3
RUBBER, SPEEDOMETER
37101-GT5-000
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
FRAME SET *NH132M* (MAX SILVER METALLIC)
50010-K28-A61ZA
|
$852.38 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, FR. ENGINE HANGER *NH132M* (MAX SILVER METALLIC)
50127-K28-910ZA
|
$51.36 | ||
|
Available to order. Add to View Price |
|||
|
#6
PROTECTOR, CRANKCASE
50355-K28-910
|
$86.56 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER B, STOPPER
50363-GN1-760
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, SIDE MOUNTING
90001-961-670
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (10X115)
90018-399-010
|
$8.58 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (10X106)
90101-KYJ-900
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (10X100)
90103-K28-910
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (10X85)
90154-K28-910
|
$6.84 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT-WASHER 8X20
93405-0802008
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, FLANGE (10MM)
94050-10000
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X18) BOLT, HEX. (6X18)
95701-06018-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
