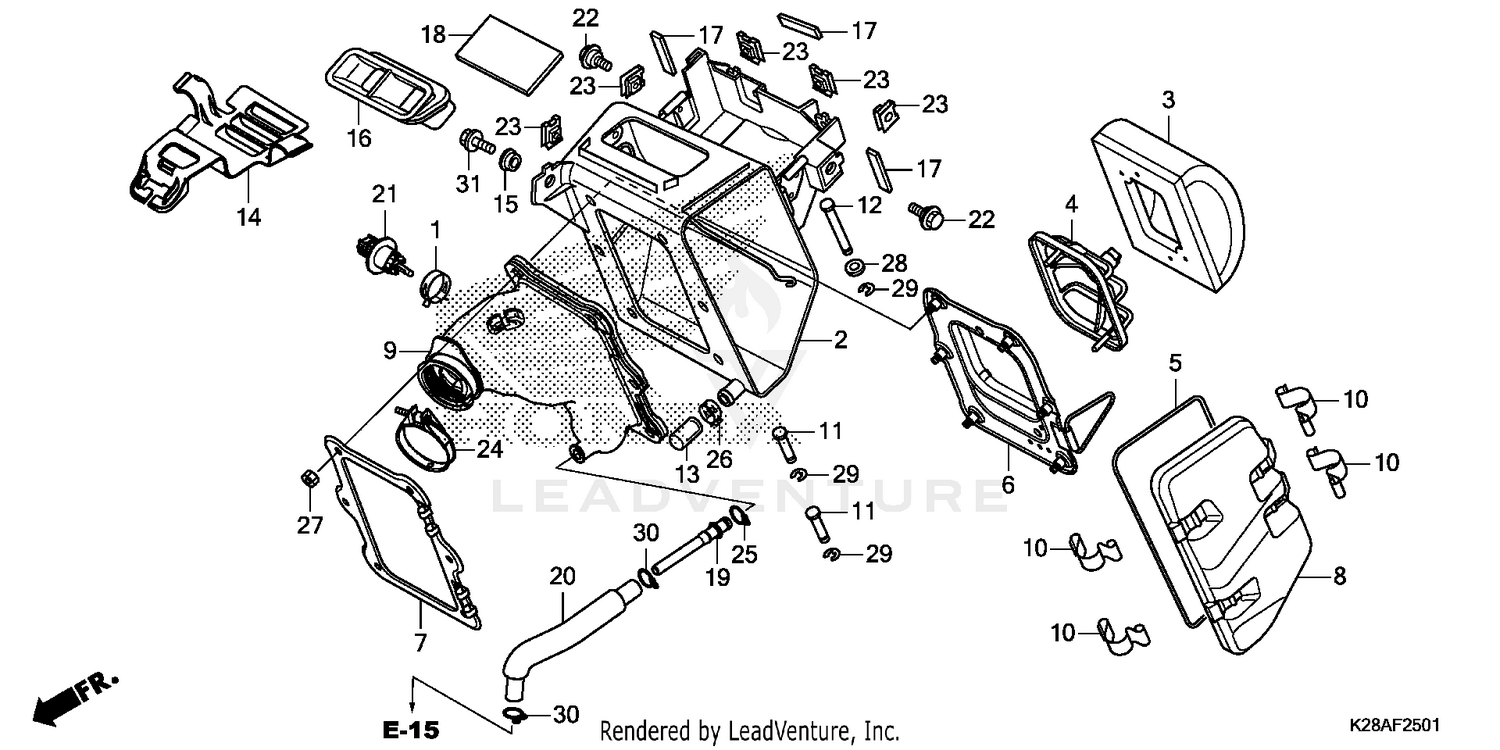

Air Cleaner (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP, RESONATOR
17209-K28-A60
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOUSING, AIR CLEANER
17210-K28-A60
|
$196.21 | ||
|
Available to order. Add to View Price |
|||
|
#3
ELEMENT, AIR CLEANER
17213-K28-910
|
$15.34 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOLDER, ELEMENT
17214-K28-910
|
$13.36 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAL, AIR CLEANER COVER
17215-K28-910
|
$6.90 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, ELEMENT SETTING
17216-K28-910
|
$86.07 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, FR. HOLDER
17217-K28-910
|
$17.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, AIR CLEANER HOUSING
17220-K28-910
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
TUBE, AIR CLEANER CONNECTING
17222-K28-A60
|
$82.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, AIR CLEANER HOUSING COVER
17223-K28-910
|
$7.03 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN A
17224-K28-910
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN B
17225-K28-910
|
$6.56 | ||
|
Available to order. Add to View Price |
|||
|
#13
TUBE, VINYL (11X15X40)
17227-KYY-900
|
$4.98 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, AIR CLEANER
17228-K28-A60
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR, AIR CLEANER
17229-K28-A60
|
$2.96 | ||
|
Available to order. Add to View Price |
|||
|
#16
DUCT, INLET
17240-K28-910
|
$40.29 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER A
17251-K28-910
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPACER B
17255-K28-910
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
|
#19
JOINT, BREATHER TUBE
17359-K28-A60
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
TUBE, BREATHER
17368-K28-A60
|
$10.65 | ||
|
Available to order. Add to View Price |
|||
|
#21
SENSOR ASSY., AIR TEMPERATURE
37880-K48-A01
|
$30.60 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, SPECIAL (6MM)
90101-K28-A60
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, CLIP (6MM)
90305-K28-910
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#24
BAND, AIR CLEANER CONNECTING TUBE (42)
90652-K28-A60
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP, TUBE (B12.5)
90654-GFM-970
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP, TUBE (D14.5)
91406-KZV-J00
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, HEX. (5MM)
94001-05080-0S
|
$1.08 | ||
|
Unavailable |
|||
|
#28
WASHER, PLAIN (6MM) (USED ON TAILLIGHT)
94101-06800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#29
E-RING (4MM)
94540-04018
|
$3.18 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLIP, TUBE (B12.5)
95002-02130
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X14)
95701-06014-07
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
