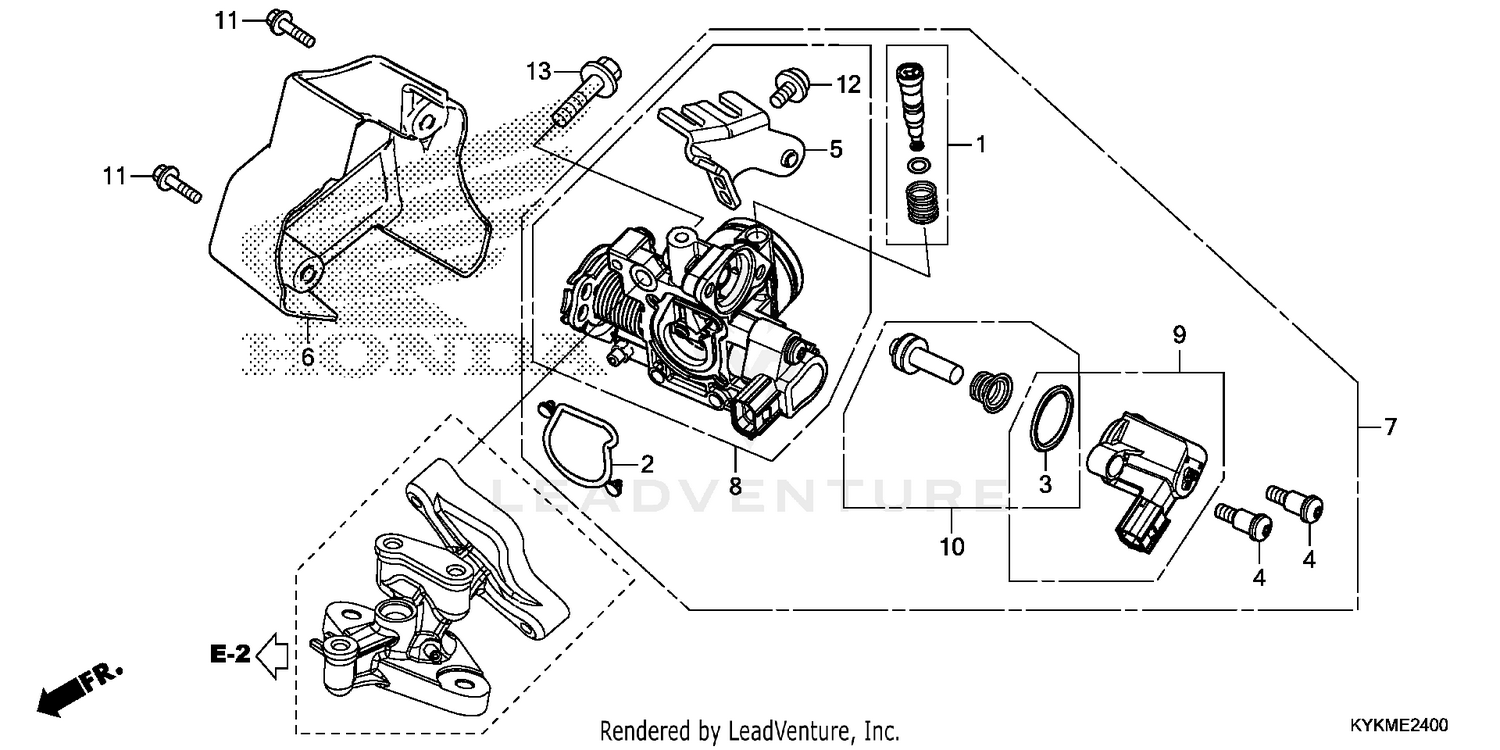

Throttle Body Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SCREW SET
16016-K03-H11
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING, THROTTLE BODY
16075-K25-901
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING (1.9X20.4)
16077-KVB-S51
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, TORX (5X8.7)
16081-KYJ-901
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#5
STAY, WIRE
16169-KYK-D11
|
$16.78 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, THROTTLE BODY
16305-KYK-D10
|
$18.24 | ||
|
Available to order. Add to View Price |
|||
|
#7
BODY ASSY., THROTTLE (GQWJA A)
16400-KYK-D11
|
$296.31 | ||
|
Available to order. Add to View Price |
|||
|
#8
BODY SET
16410-KYK-D11
|
$172.47 | ||
|
Available to order. Add to View Price |
|||
|
#9
SOLENOID
16480-KVB-S51
|
$55.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAT SET
16485-GGZ-J01
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW-WASHER (5X14)
93891-05014-07
|
$1.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SCREW-WASHER (5X12) (Honda Code 0368621)
93892-05012-08
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW-WASHER (5X12)
93892-05012-18
Superseded by 93892-05012-08
|
$1.20 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE (6X18)
96001-06018-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
