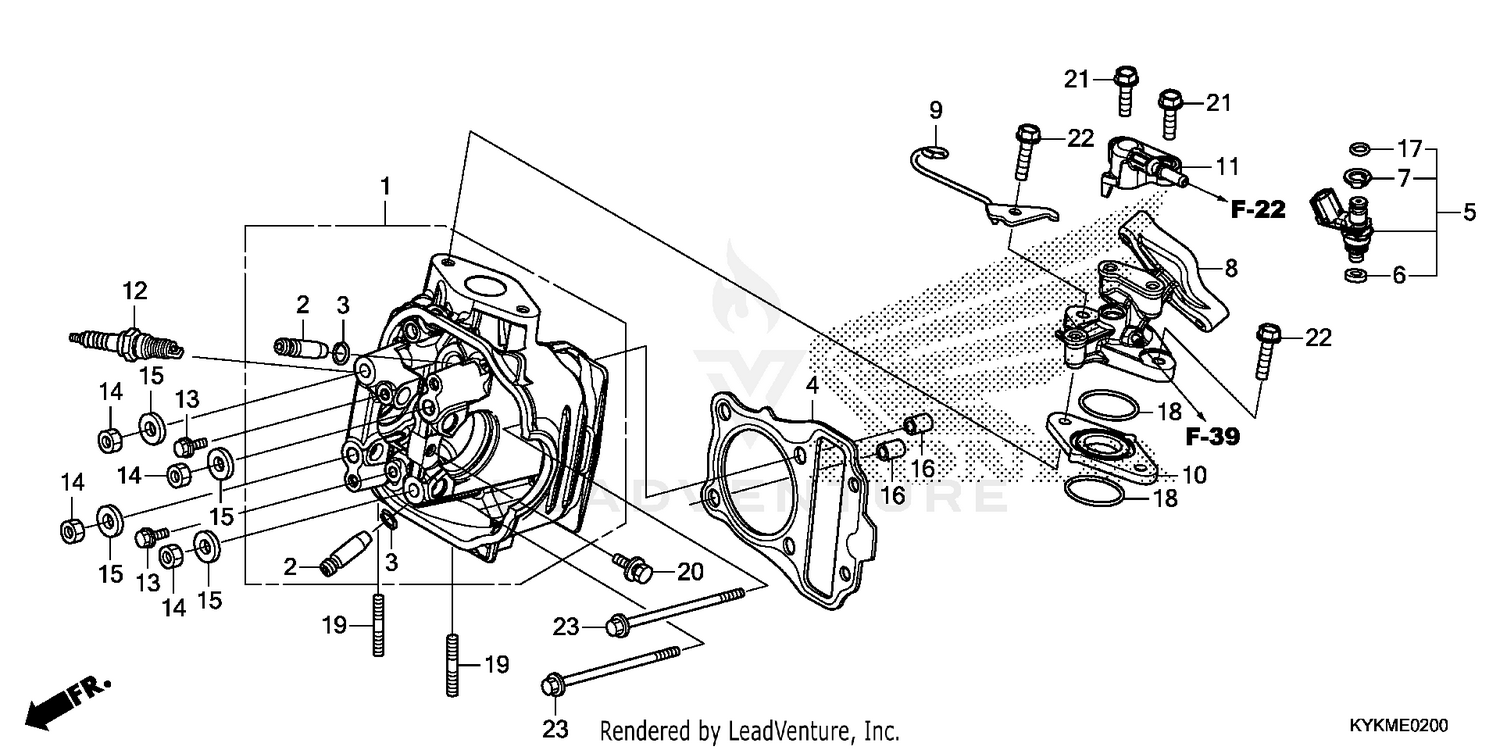

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD
12200-KYK-D10
|
$291.40 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE (OVER SIZE)
12204-KVY-305
|
$12.13 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLIP, VALVE GUIDE
12206-KPL-900
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, CYLINDER HEAD
12251-KWB-601
|
$14.27 | ||
|
Available to order. Add to View Price |
|||
|
#5
INJECTOR ASSY., FUEL
16450-K28-A61
|
$160.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING, SEAL (Honda Code 8954000)
16472-KPC-D50
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#7
DUST SEAL RING
16473-HR3-A42
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIPE, INLET
17110-KYK-D10
|
$249.67 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP, HIGH TENSION CORD
17118-KYK-D10
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
INSULATOR, IN. PIPE
17119-KSS-J00
|
$13.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
JOINT, INJECTOR
17560-KYK-D10
|
$36.91 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPARK PLUG (CPR6EA-9S) (NGK)
31916-KWB-601
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (5X12)
90002-KWB-600
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, HEX. (7MM)
90201-GCC-000
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER (7.2X16X2.5)
90402-KWW-740
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, DOWEL SPECIAL (8X14)
90701-KVR-C00
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING (6.3X2.2)
91301-GGL-J01
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING (29X2.4)
91304-KSS-B00
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT 2, STUD (8X32)
92900-08032-0E
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT-WASHER (6X12)
93404-06012-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X22)
95701-06022-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X100)
96001-06100-00
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
