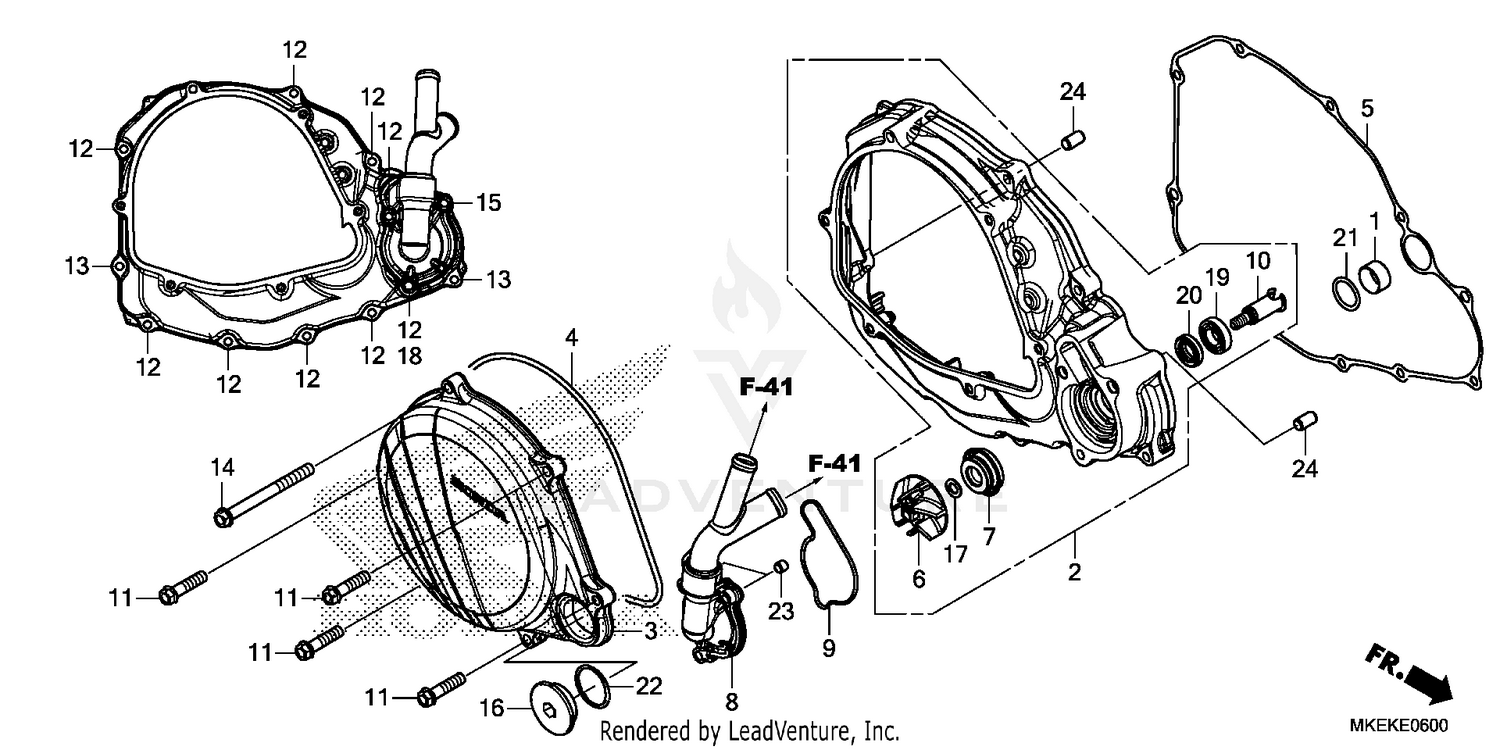

Right Crankcase Cover @water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR, WATER PASS
11102-MKE-A00
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER ASSY., R. CRANKCASE
11330-MKE-A70
|
$338.11 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, CLUTCH
11351-MKE-A00
|
$153.11 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, CLUTCH COVER
11352-MKE-A70
|
$14.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, R. COVER
11394-MKE-A71
|
$37.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
IMPELLER, WATER PUMP
19215-MEN-850
|
$51.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL, MECHANICAL
19217-KRN-A61
|
$56.22 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, WATER PUMP
19220-MKE-A00
|
$124.76 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, WATER PUMP
19226-MKE-A00
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT, WATER PUMP
19241-MKE-A00
|
$72.96 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X25)
90020-GHB-680
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X28)
90020-GHB-690
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X35)
90020-GHB-720
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X65)
90020-GHB-790
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X75)
90020-GHB-810
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP (30MM)
90087-HB5-000
|
$20.22 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SEALING (7MM)
90447-KE1-000
|
$3.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$3.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BEARING, BALL (12X24X6)
91002-MEN-A31
|
$10.69 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL (12X22X5)
91201-148-003
Superseded by 91201-965-000
|
$5.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
OIL SEAL (12X22X5)
91201-965-000
|
$5.09 | ||
|
Unavailable |
|||
|
#21
O-RING (2.4X19)
91302-MKE-A70
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING (27X2) (ARAI)
91305-KF0-003
|
$3.51 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
PIN, DOWEL (8X7)
91320-KE1-000
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
