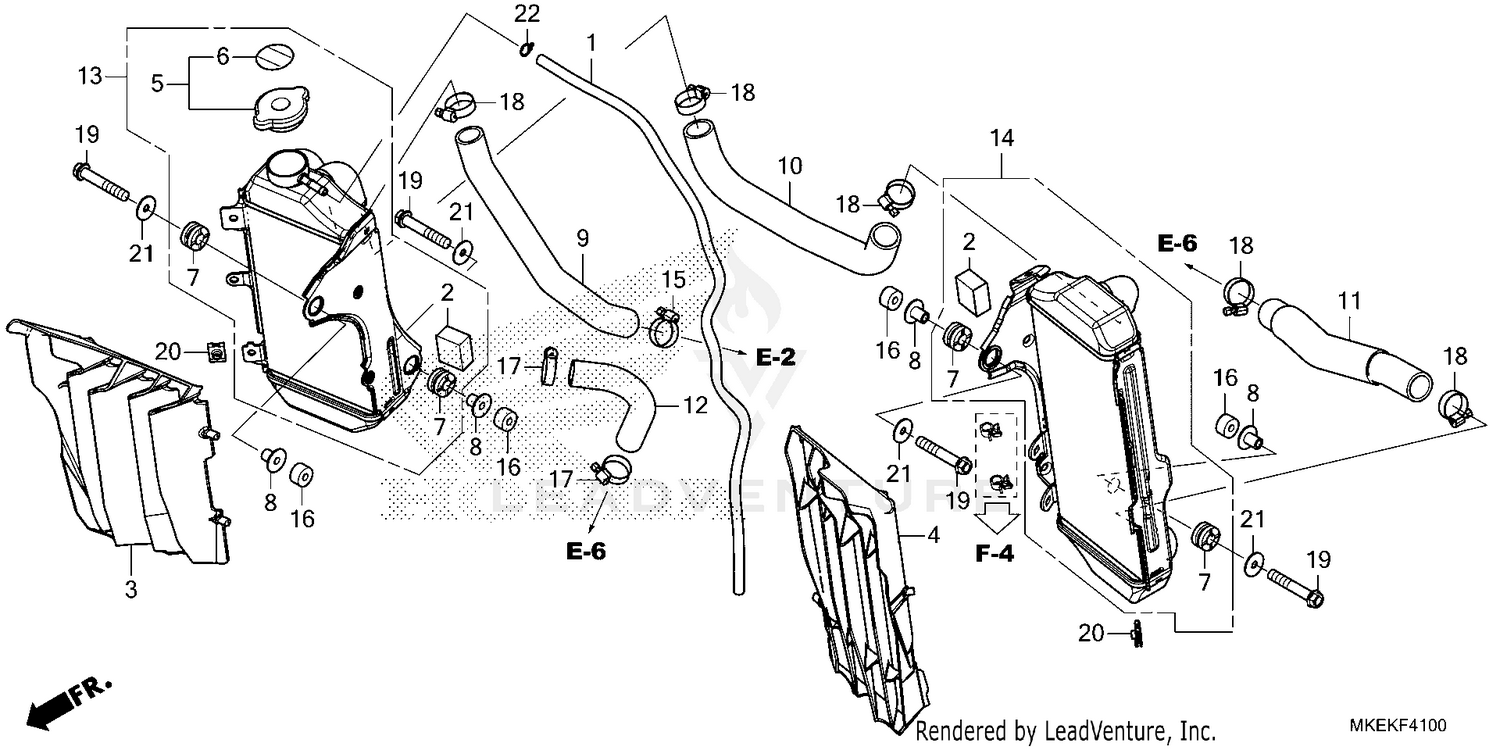

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TUBE, RADIATOR
19003-MKE-A70
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER, RADIATOR (UPPER)
19021-MEN-A30
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#3
GRILLE, R. RADIATOR
19033-K95-A20
|
$43.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
GRILLE, L. RADIATOR
19034-MKE-A70
|
$43.96 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, RADIATOR
19037-GEE-710
|
$36.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
LABEL, RADIATOR CAP
19046-PAA-A00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER, RADIATOR MOUNTING
19051-KA3-830
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, RADIATOR MOUNTING
19052-MAC-680
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE A, WATER
19061-MKE-A00
|
$17.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE B, WATER
19062-MKE-A00
|
$18.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE C, WATER
19063-MKE-A00
|
$28.24 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE D, WATER
19064-MKE-A00
|
$10.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
RADIATOR ASSY., R.
19100-MKE-A00
|
$345.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
RADIATOR ASSY., L.
19150-MKE-A00
|
$345.80 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP, WATER HOSE (D27)
19502-MKE-A00
|
$10.42 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP, WATER HOSE (25MM)
19504-KY1-003
|
$12.47 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP B, WATER HOSE
19506-KS6-700
|
$9.42 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X25)
90020-GHB-680
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, CLIP (6MM)
90201-KPR-901
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, RADIATOR MOUNTING
90403-KA3-830
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP, TUBE (B8) CLIP, TUBE (B7)
95002-02080
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
