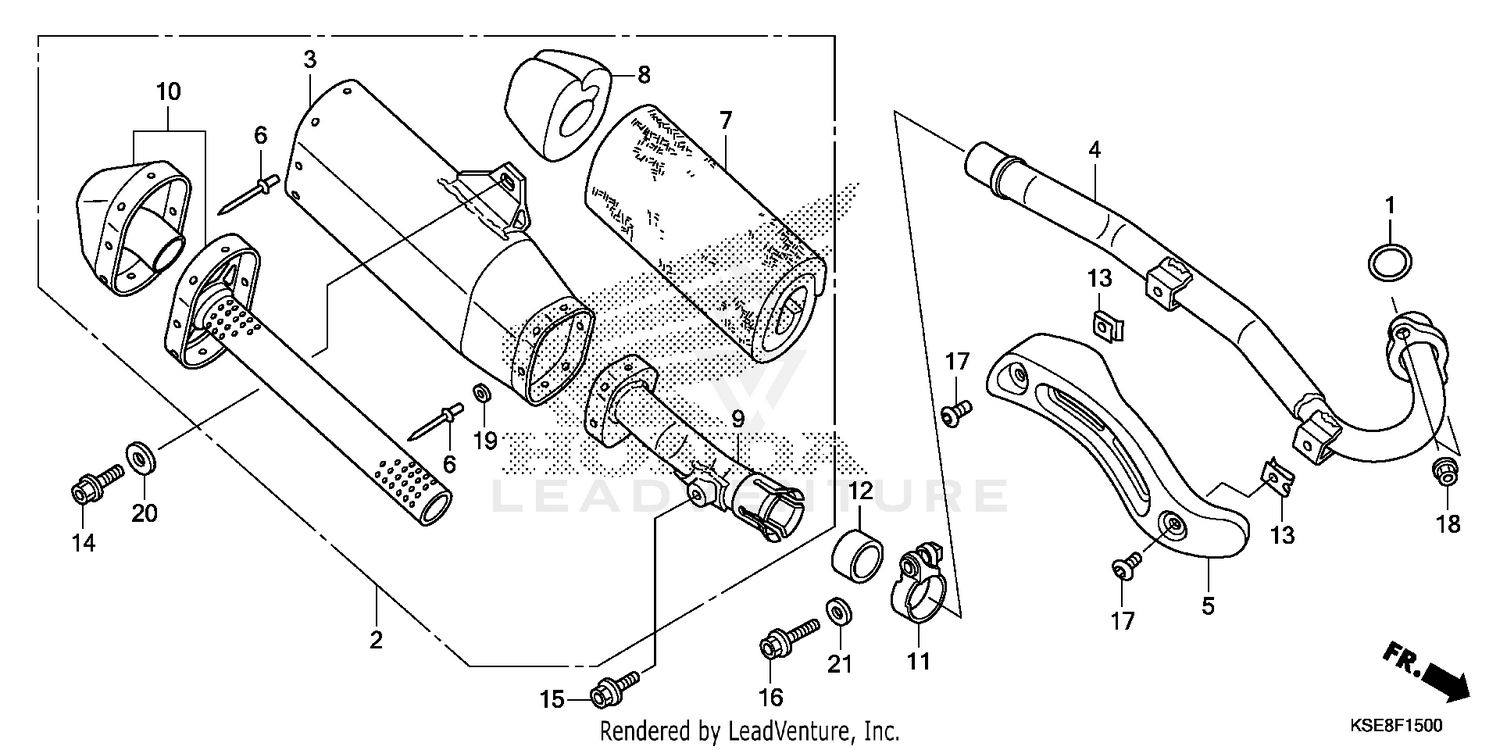

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, EX. PIPE
18291-KZ1-670
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
MUFFLER (COO)
18310-KSE-305
|
$1,192.91 | ||
|
Available to order. Add to View Price |
|||
|
#2
MUFFLER (COO)
18310-KSE-000
Superseded by 18310-KSE-305
|
$1,192.91 | ||
|
Unavailable |
|||
|
#3
BODY, MUFFLER
18313-KSE-300
|
$418.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE, EX.
18320-KSE-000
|
$275.33 | ||
|
Available to order. Add to View Price |
|||
|
#5
PROTECTOR, EX. PIPE
18323-KSE-A50
|
$84.31 | ||
|
Available to order. Add to View Price |
|||
|
#6
RIVET, BLIND (4.8)
18324-MEB-670
|
$1.22 | ||
|
Available to order. Add to View Price |
|||
|
#7
PACK A, GLASS WOOL
18336-KSE-300
|
$47.82 | ||
|
Available to order. Add to View Price |
|||
|
#8
PACK B, GLASS WOOL
18345-KSE-300
|
$43.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
MUFFLER, FR. (COO)
18350-KSE-305
|
$222.73 | ||
|
Available to order. Add to View Price |
|||
|
#10
MUFFLER, RR. (96DB) (COO)
18351-KSE-305
|
$281.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAND, L. MUFFLER
18373-MG7-701
Superseded by 18374-KE8-000
|
$35.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAND, L. MUFFLER
18374-KE8-000
|
$35.45 | ||
|
Unavailable |
|||
|
#12
GASKET, MUFFLER
18392-MK4-000
|
$16.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
NUT, SPRING (6MM)
19508-KA3-710
|
$7.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (8X18)
90123-KZ4-J40
|
$2.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, FLANGE (8X16)
90123-MEN-670
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (8X35)
90124-KZ4-J40
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, SPECIAL (6MM)
90170-MEB-670
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, FLANGE (7MM)
90355-427-770
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLAIN (5MM)
94101-05000
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLAIN (8MM)
94101-08000
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
WASHER, PLAIN (8MM)
94102-08800
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
