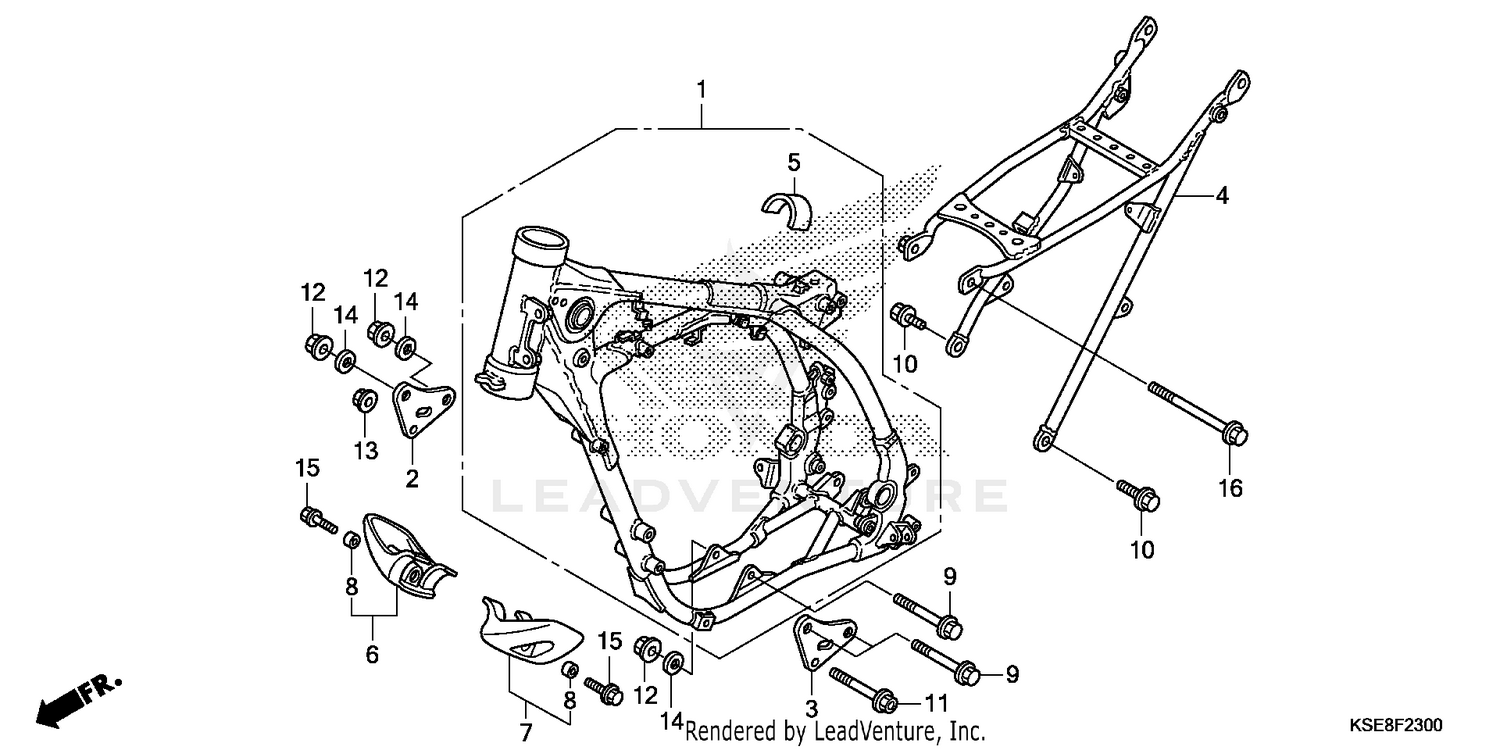

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME SET, FR.
50020-KSE-000
|
$764.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
HANGER, R. FR.
50131-KSE-000
|
$8.84 | ||
|
Available to order. Add to View Price |
|||
|
#3
HANGER, L. FR.
50132-KSE-000
|
$8.84 | ||
|
Available to order. Add to View Price |
|||
|
#4
FRAME, RR. *NH146M* (ACCURATE SILVER METALLIC)
50200-KSE-000ZA
|
$354.93 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER, TANK
50226-KSE-000
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUARD, L. ENGINE (R. SIDE)
50360-KRN-000
|
$16.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
GUARD, R. ENGINE (L. SIDE)
50370-KSC-000
|
$11.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR (6X4)
52156-353-300
|
$7.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (10X90)
90102-KSE-000
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, JOINT (8X19)
90108-KA3-710
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (8X87)
90113-KT0-670
|
$7.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, FLANGE (10MM)
90302-KZ3-J40
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, HEX. (10MM)
90309-357-000
|
$4.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WASHER (10MM)
90410-HC4-000
|
$4.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT-WASHER (6X14)
93404-06014-00
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (8X105)
95801-08105-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
