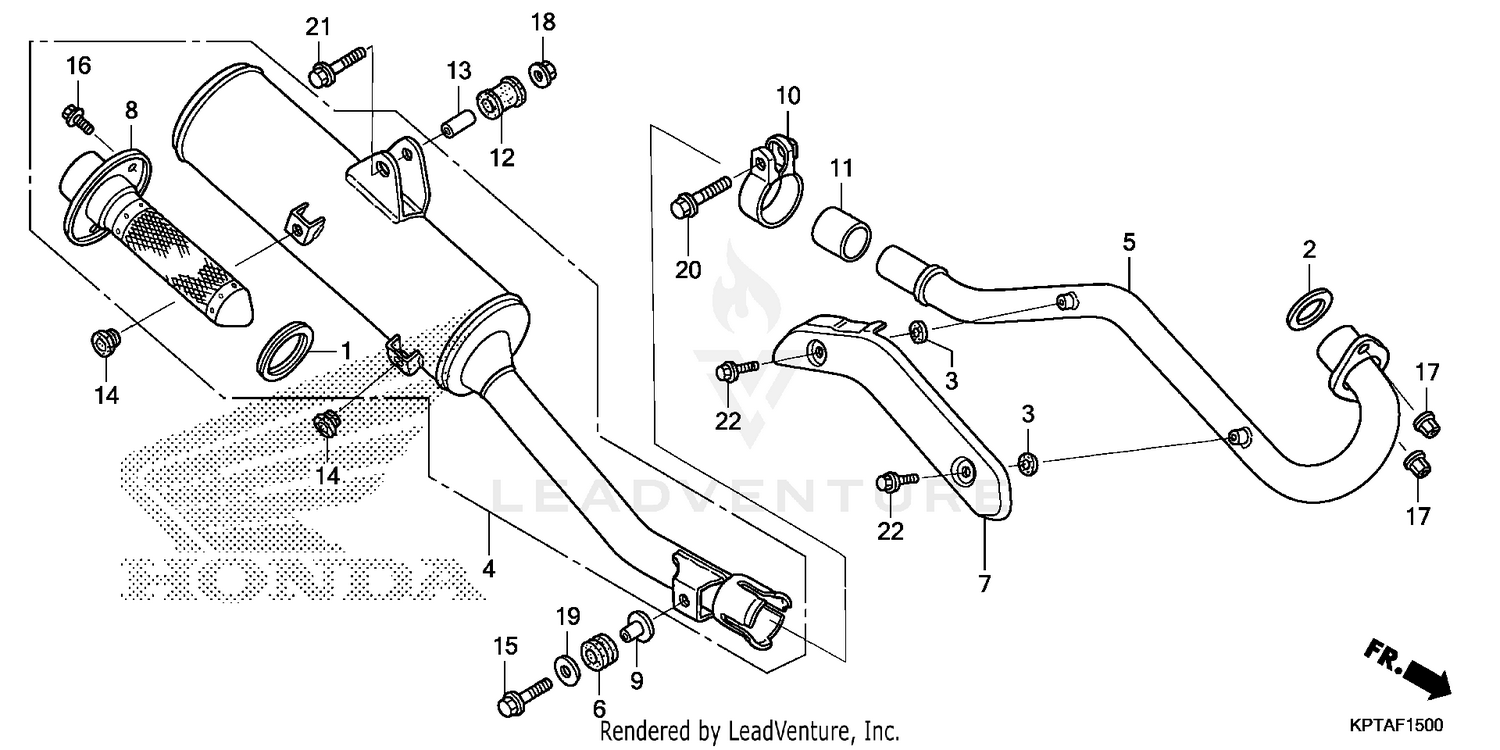

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, EX. MUFFLER
18291-KPS-900
|
$8.60 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, EX. PIPE
18291-MN5-650
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
GASKET, PROTECTOR
18292-KBR-000
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
MUFFLER ASSY., EX. (COO)
18300-KPT-305
|
$673.92 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIPE, EX.
18320-KPT-A00
|
$62.13 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER, RR. CHAMBER MOUNTING
18328-KAE-000
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#7
PROTECTOR, EX. PIPE *NH106* (HEATPROOF BLACK)
18345-KPT-A00ZA
|
$124.27 | ||
|
Available to order. Add to View Price |
|||
|
#8
ARRESTER ASSY.
18355-KPT-A00
|
$249.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
ARRESTER ASSY.
18355-KPT-305
Superseded by 18355-KPT-A00
|
$249.69 | ||
|
Unavailable |
|||
|
#9
COLLAR, MUFFLER MOUNTING
18356-KAE-000
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND, EX. PIPE
18373-KRH-D20
|
$58.96 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, MUFFLER
18391-MB0-891
|
$21.71 | ||
|
Available to order. Add to View Price |
|||
|
#12
RUBBER, MUFFLER MOUNTING
18421-KFB-000
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR, MUFFLER MOUNTING
18422-KFB-000
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#14
RUBBER, SIDE COVER
83512-KPS-730
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (8X30)
90033-GHR-F20
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (8X30)
95701-08030-07
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X10)
90101-KCE-000
Superseded by 96001-06010-07
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X10)
96001-06010-07
|
$1.70 | ||
|
Unavailable |
|||
|
#17
NUT, FLANGE (8MM)
90208-GHR-640
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, FLANGE (8MM)
90306-KPS-900
Superseded by 90208-GHR-640
|
$2.67 | ||
|
Unavailable |
|||
|
#18
NUT, FLANGE (8MM)
94050-08070
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLAIN (8MM)
94103-08700
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT-WASHER (8X40)
95701-08040-07
Superseded by 90141-GGZ-J00
|
$2.76 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE (8X45)
95701-08045-07
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X8)
96001-06008-07
|
$1.07 | ||
|
Unavailable |
|||
