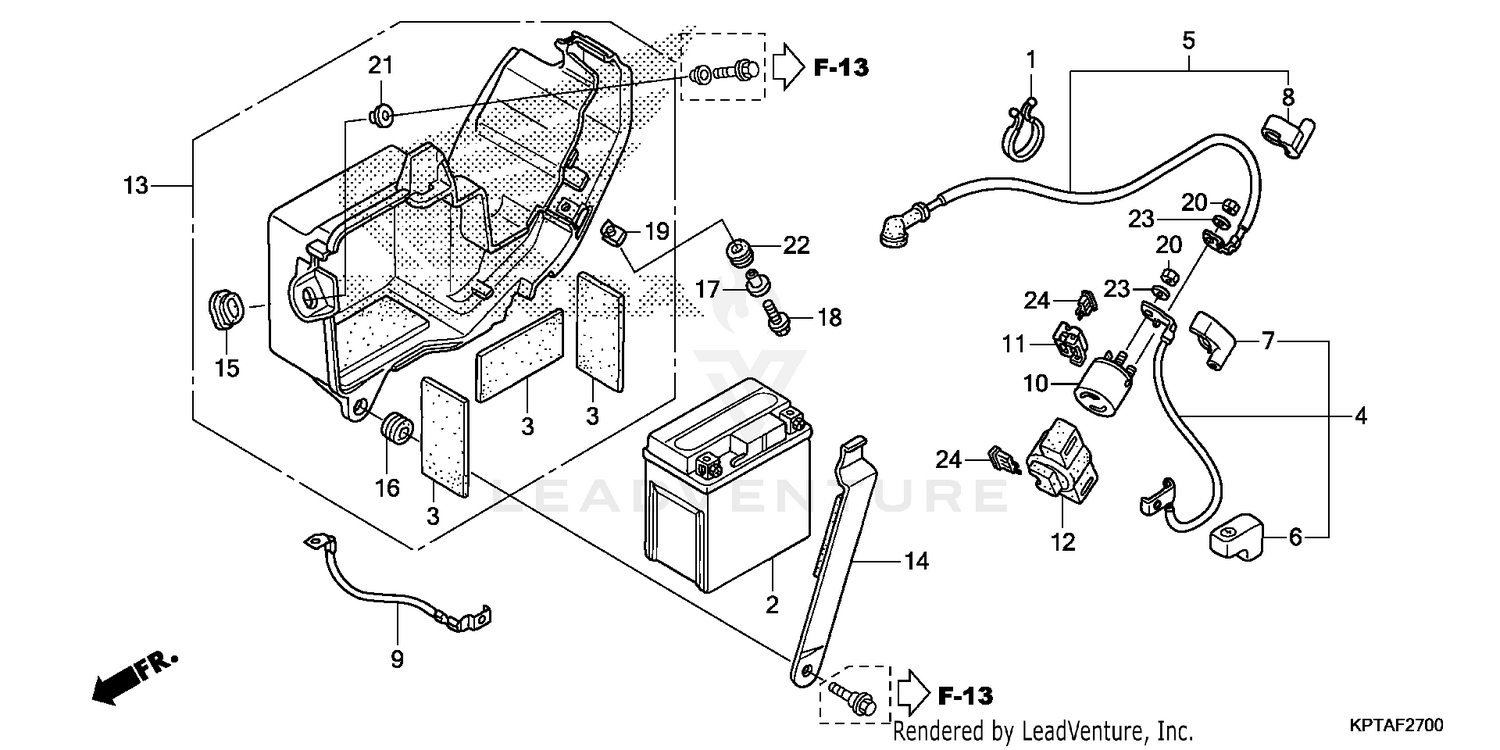

Battery (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, BREATHER TUBE PROTECTOR
15712-PD1-811
|
$11.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
BATTERY (YTX5L-BS) (YUASA) (MSDS)
31500-KY4-905AH
|
$83.76 | ||
|
Unavailable |
|||
|
#3
RUBBER, BATTERY CUSHION
31511-107-300
|
$5.89 | ||
|
Available to order. Add to View Price |
|||
|
#4
CABLE, STARTER MAGNETIC BATTERY
32401-KPS-901
|
$16.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
CABLE, STARTER MOTOR
32410-KPS-900
|
$15.04 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, BATTERY TERMINAL
32412-KAB-000
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER A, MAGNETIC SWITCH
32414-MJ6-720
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER B, MAGNETIC SWITCH
32415-KS5-000
|
$5.51 | ||
|
Available to order. Add to View Price |
|||
|
#9
CABLE, BATTERY GROUND
32601-KPT-A00
|
$8.87 | ||
|
Available to order. Add to View Price |
|||
|
#10
SWITCH, STARTER MAGNETIC
35851-MF5-751
|
$128.98 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOLDER ASSY., FUSE
35855-MF5-751
|
$40.11 | ||
|
Available to order. Add to View Price |
|||
|
#12
RUBBER, SHOCK ABSORBER
35856-MF5-751
|
$11.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOX ASSY., BATTERY
50320-KPS-900
|
$34.87 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND, BATTERY
50326-KPS-900
|
$9.11 | ||
|
Available to order. Add to View Price |
|||
|
#15
GROMMET, FR. FENDER SETTING
66101-HA7-670
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#16
RUBBER, RR. FENDER CUSHION (FR.)
80101-165-000
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR, COVER MOUNTING
83505-KPS-900
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X20)
90040-GHR-680
|
$1.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X20)
90104-KPS-900
Superseded by 90040-GHR-680
|
$1.05 | ||
|
Unavailable |
|||
|
#19
NUT, CLIP (6MM)
90311-KPS-900
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, HEX. (6MM)
90320-KPS-900
|
$0.73 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR, BATTERY BOX
90504-KPS-900
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#22
GROMMET A, AIR CLEANER HOUSING
90505-MC4-000
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPRING (6MM)
90521-KPS-900
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#24
FUSE, BLADE (7.5A)
98200-30750
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
