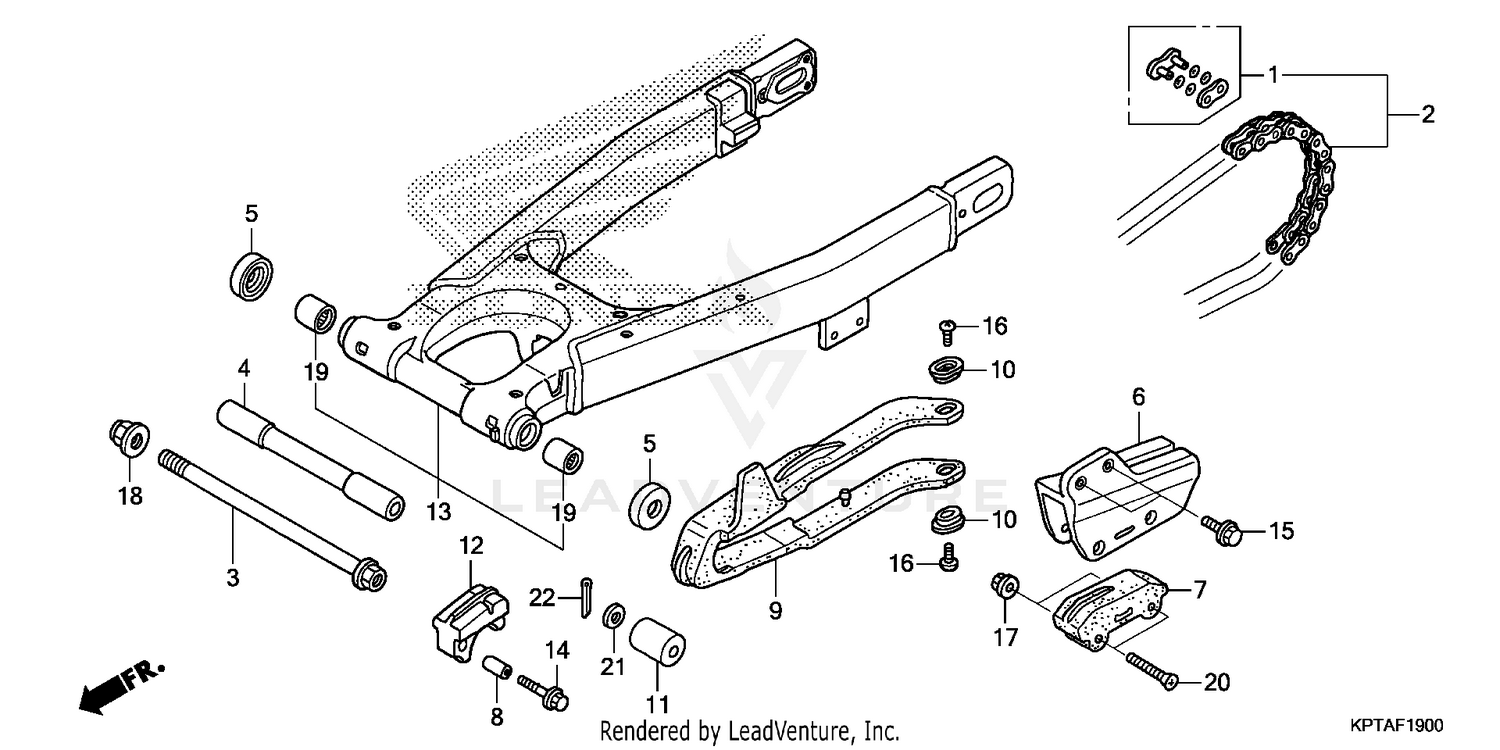

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER LINK SET (SEAL TYPE) (DAIDO)
40535-KCR-305
|
$8.98 | ||
|
Available to order. Add to View Price |
|||
|
#1
MASTER LINK SET (SEAL TYPE) (RK EXCEL)
40535-KCR-306
|
$9.33 | ||
|
Available to order. Add to View Price |
|||
|
#2
CHAIN, DRIVE (DID520V6-120ZB) (DAIDO) (STANDARD LINK 110L)
40540-KCR-305
|
$238.09 | ||
|
Available to order. Add to View Price |
|||
|
#2
CHAIN, DRIVE (RK EXCEL) (RK520SMOZ2-120LJ-FZ) (STANDARD LINK 110L)
40540-KCR-306
|
$238.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, SWINGARM PIVOT
52101-KPS-900
|
$43.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, SWINGARM PIVOT CENTER DISTANCE
52141-KPS-900
|
$46.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, SWINGARM DUST SEAL (NOK)
52144-356-005
|
$20.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
GUIDE, CHAIN
52146-KPS-900
|
$55.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
SLIDER, CHAIN GUIDE
52147-MN1-670
|
$16.93 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, CHAIN SLIPPER
52159-KPE-900
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#9
SLIDER, CHAIN
52170-KPT-A00
|
$73.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, CHAIN SLIDER
52171-KR6-000
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
ROLLER, CHAIN (UPPER)
52175-KPS-900
|
$10.15 | ||
|
Available to order. Add to View Price |
|||
|
#12
SLIDER, CHAIN (LOWER)
52185-KPS-900
|
$30.93 | ||
|
Available to order. Add to View Price |
|||
|
#13
SWINGARM SUB-ASSY., RR.
52200-KPT-900
|
$288.87 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X28)
95701-06028-00
|
$1.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X16)
90103-MY6-670
|
$4.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SCREW, PAN (5X8)
90115-KPS-900
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, U (6MM) NUT, FLANGE (6MM)
90301-473-003
|
$5.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
NUT, U (14MM)
90305-GE8-003
|
$4.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BEARING, NEEDLE (20X26X20)
91070-KPE-901
|
$11.69 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, FLAT (6X45)
93600-06045-0A
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLAIN (8MM)
94102-08700
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, COTTER (2.0X15)
94201-20150
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
