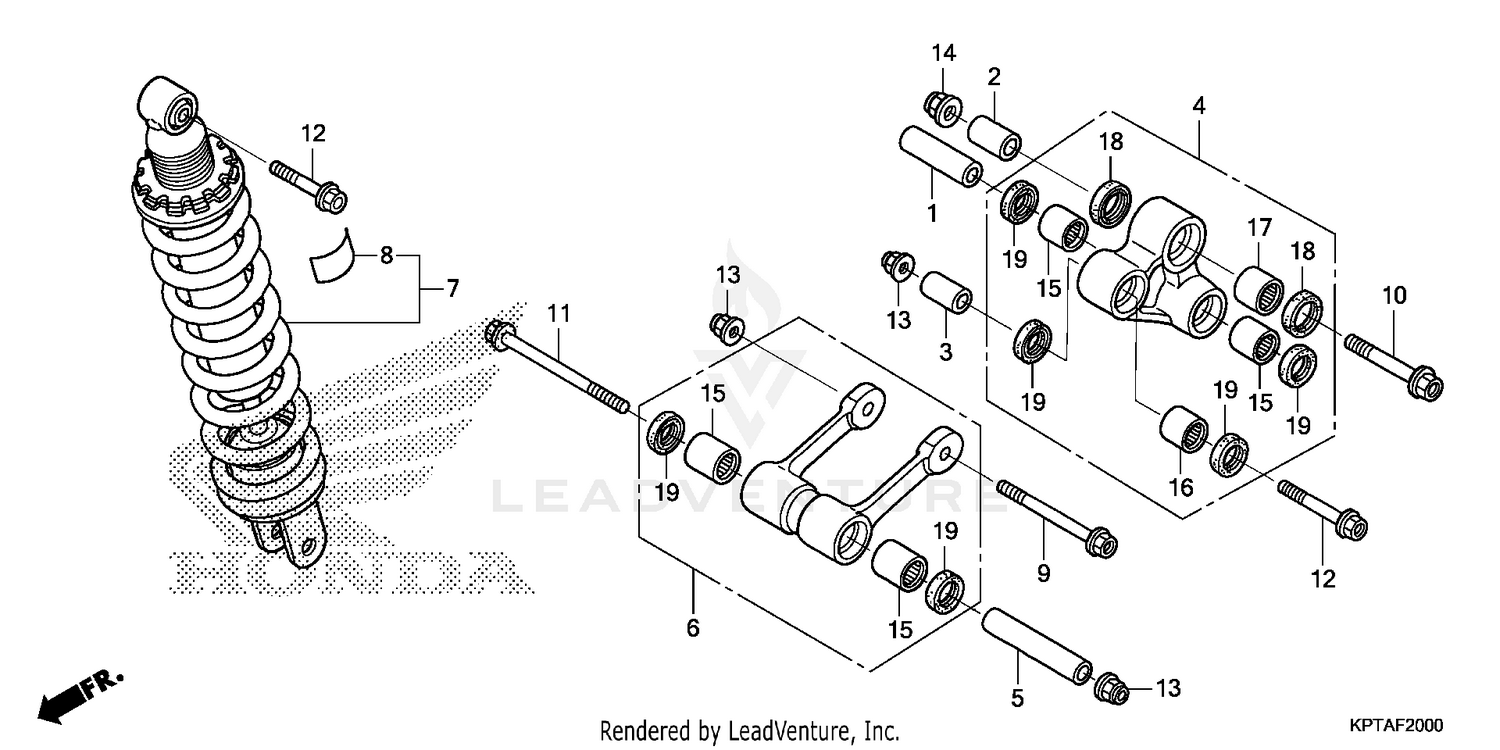

Rear Shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR A, CUSHION ARM
52462-KPS-900
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR B, CUSHION ARM
52463-KPE-900
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR C, CUSHION ARM
52464-KPE-900
|
$6.11 | ||
|
Available to order. Add to View Price |
|||
|
#4
ARM SUB-ASSY., CUSHION
52465-KPT-900
|
$171.09 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, CONNECTING ROD
52472-KPS-900
|
$8.76 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROD SUB-ASSY., CUSHION CONNECTING
52475-KPT-900
|
$196.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHOCK ABSORBER SET (COO)
52490-KPT-305
|
$827.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
LABEL, RR. DAMPER
87516-MBL-610
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (10X100)
90101-KPS-900
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (12X78)
90102-KFB-000
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (10X118)
90102-KPS-900
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (10X52)
90154-KPS-900
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, U (10MM) NUT, SELF-LOCK (10MM)
90304-GE8-003
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
NUT, FLANGE (12MM) (FUSE RASHI)
90306-KF0-003
|
$4.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BEARING, NEEDLE (KOYO)
91071-KV3-005
|
$30.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING, NEEDLE (17X24X17) (KOYO)
91071-MY1-005
|
$23.85 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING, NEEDLE (20X26X20)
91072-MY1-005
|
$22.44 | ||
|
Available to order. Add to View Price |
|||
|
#18
DUST SEAL (20X26X4.5) (ARAI)
91254-KS6-003
|
$11.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
DUST SEAL (17X24X5) (ARAI)
91262-KV3-831
|
$7.78 | ||
|
Available to order. Add to View Price |
|||
