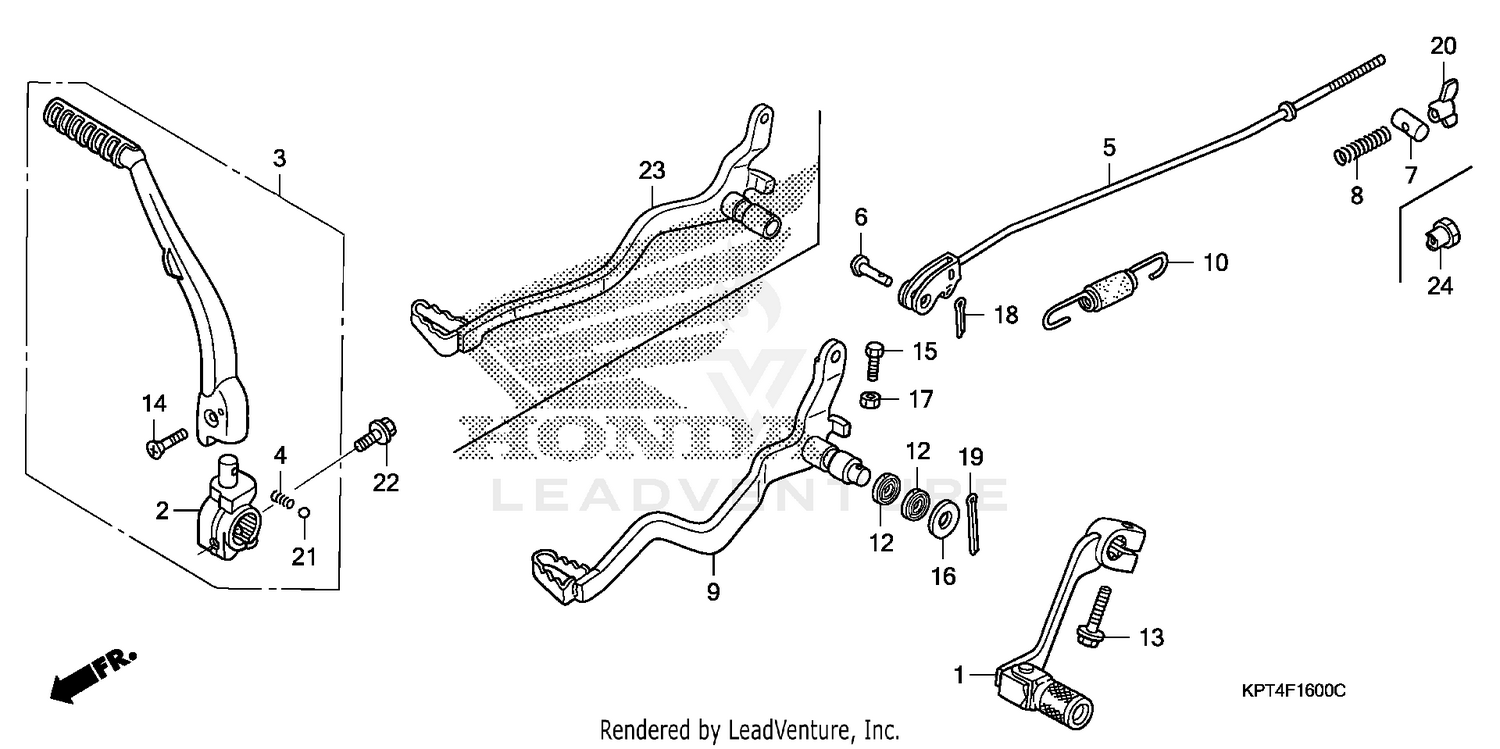

Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL ASSY., CHANGE (COO)
24700-KPS-900
Superseded by 24700-KPT-305
|
$39.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD, RR. BRAKE
43451-KPT-A00
|
$14.64 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN C, JOINT
43453-KPS-900
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#7
JOINT B, BRAKE ARM
43454-KPS-900
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING A, BRAKE ROD
43472-KPS-900
Superseded by 43472-KB9-750
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING A, BRAKE ROD
43472-KB9-750
|
$3.89 | ||
|
Unavailable |
|||
|
#10
SPRING SET, BRAKE PEDAL
46513-KPS-900
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#12
DUST SEAL (17X20X2.5)
46525-KK0-003
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X20)
90010-ML0-720
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEX. (6X20)
90105-KPS-900
Superseded by 90015-GHR-680
|
$0.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEX. (6X20)
90015-GHR-680
|
$0.49 | ||
|
Unavailable |
|||
|
#16
WASHER, BUSH
90501-KRE-900
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, HEX. (6MM)
90201-GHR-630
|
$0.51 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, SPLIT (2.0X12)
94201-20120
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
PIN, COTTER (3.0X45)
94201-30250
Superseded by 94201-30450
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, COTTER (3.0X45)
94201-30280
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#19
PIN, COTTER (3.0X45)
94201-30300
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#19
PIN, COTTER (3.0X45)
94201-30400
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#19
PIN, SPLIT (3.0X45)
94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#23
PEDAL, BRAKE (COO)
46500-KPS-730
Superseded by 46500-KPT-305
|
$75.09 | ||
|
Available to order. Add to View Price |
|||
|
#23
PEDAL, BRAKE (COO)
46500-KPT-305
|
$75.09 | ||
|
Unavailable |
|||
|
#24
NUT B, BRAKE ROD ADJUSTING
43459-KRH-E30
Superseded by 95015-42000
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
NUT B, BRAKE ROD ADJUSTING
95015-42000
|
$2.20 | ||
|
Unavailable |
|||
