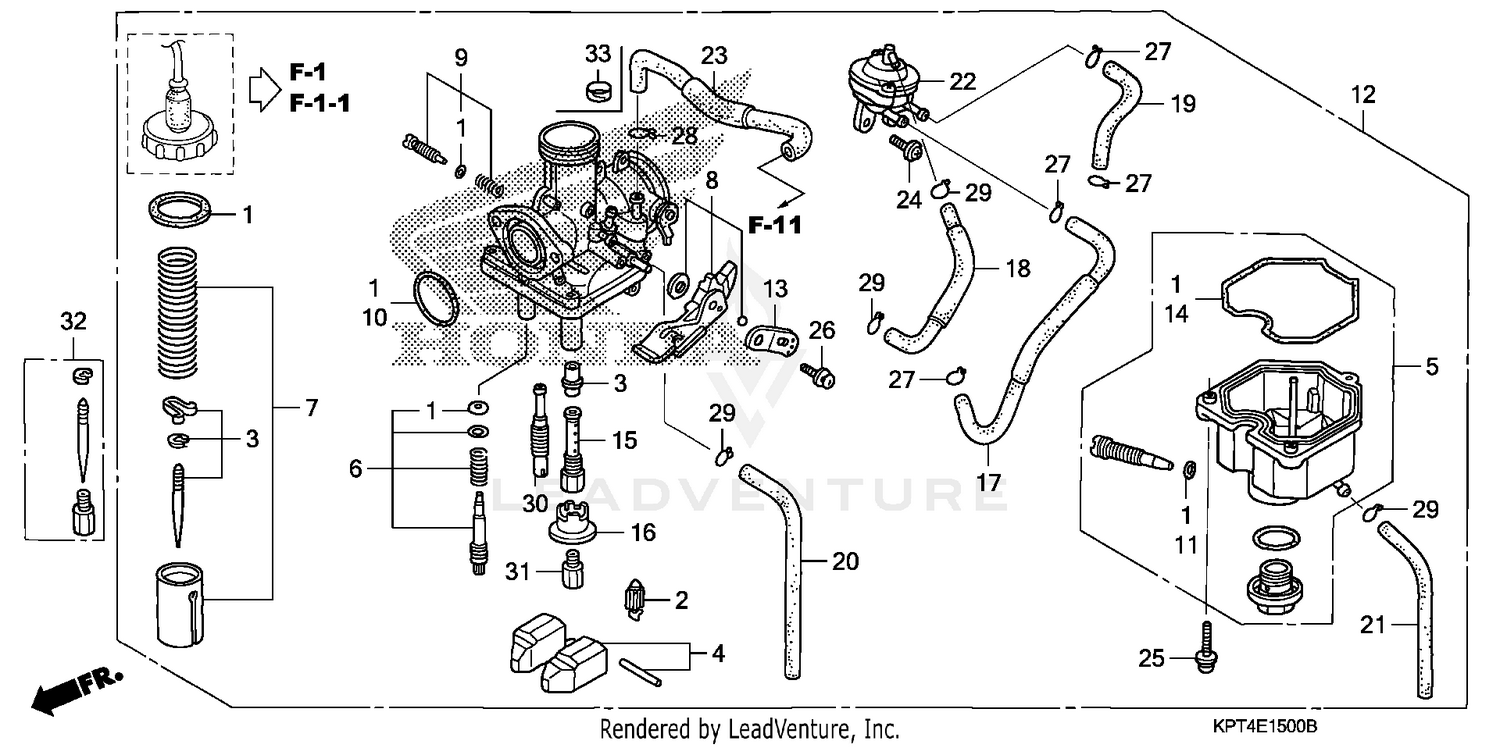

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET
16010-KCN-751
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#2
VALVE SET, FLOAT
16011-KCK-910
|
$40.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
VALVE SET, FLOAT
16011-KPS-921
|
$62.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
VALVE SET, FLOAT
16011-KPS-921
|
$62.67 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, JET
16012-KPT-A01
|
$37.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
FLOAT SET
16013-KN4-A10
|
$42.02 | ||
|
Available to order. Add to View Price |
|||
|
#5
CHAMBER SET, FLOAT
16015-KPS-901
|
$134.64 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW SET A
16016-KSJ-A01
|
$20.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
VALVE SET, THROTTLE
16022-KPT-901
|
$37.37 | ||
|
Unavailable |
|||
|
#8
LEVER SET,CHOKE
16025-KCN-751
Superseded by 16025-KCH-671
|
$43.75 | ||
|
Unavailable |
|||
|
#9
SCREW SET B
16028-KEB-G01
|
$15.07 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW SET B
16028-KEH-900
Superseded by 16028-KEB-G01
|
$15.07 | ||
|
Unavailable |
|||
|
#10
O-RING (2.4X29)
16075-GHB-B70
|
$9.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
O-RING (1.3X4.3)
16075-GHB-640
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#12
CARBURETOR ASSY. (PDD6D B)
16100-KPT-A02
|
$322.25 | ||
|
Unavailable |
|||
|
#13
PLATE, STAY
16119-440-004
|
$11.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, FLOAT CHAMBER
16163-KCS-920
|
$14.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
HOLDER, NEEDLE JET
16165-KEG-961
Superseded by 16165-KPS-841
|
$32.95 | ||
|
Unavailable |
|||
|
#16
HOLDER, JET
16168-382-014
|
$11.87 | ||
|
Available to order. Add to View Price |
|||
|
#17
TUBE
16196-KPT-A01
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#18
TUBE
16197-KEH-900
|
$2.78 | ||
|
Available to order. Add to View Price |
|||
|
#19
TUBE
16198-KEH-900
|
$2.78 | ||
|
Available to order. Add to View Price |
|||
|
#20
TUBE, AIR VENT
16198-KPS-901
|
$7.85 | ||
|
Available to order. Add to View Price |
|||
|
#21
TUBE
16199-KPS-901
|
$7.38 | ||
|
Available to order. Add to View Price |
|||
|
#22
VALVE ASSY., AIR CUT
16510-KPT-A01
|
$115.24 | ||
|
Available to order. Add to View Price |
|||
|
#23
TUBE, FUEL
17681-KPT-900
|
$14.69 | ||
|
Available to order. Add to View Price |
|||
|
#23
TUBE, FUEL
17681-KPT-A00
Superseded by 17681-KPT-900
|
$14.69 | ||
|
Unavailable |
|||
|
#24
SCREW-WASHER (4X12)
93892-04012-08
|
$0.67 | ||
|
Unavailable |
|||
|
#24
SCREW-WASHER (4X12)
93892-04012-18
Superseded by 93892-04012-08
|
$0.67 | ||
|
Unavailable |
|||
|
#25
SCREW-WASHER (4X16)
93892-04016-08
|
$0.77 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
SCREW-WASHER (4X16)
93892-04016-18
Superseded by 93892-04016-08
|
$0.77 | ||
|
Unavailable |
|||
|
#26
SCREW-WASHER (5X12)
93892-05012-08
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW-WASHER (5X12)
93892-05012-18
Superseded by 93892-05012-08
|
$1.20 | ||
|
Unavailable |
|||
|
#27
CLIP, TUBE (B1 8)
95002-02089
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP, TUBE (B10)
95002-02100
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
CLIP, TUBE (B6.5)
95002-02659
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#30
JET, SLOW (#40)
99103-KPT-0400
|
$12.75 | ||
|
Available to order. Add to View Price |
|||
|
#31
JET, MAIN (#95)
99113-GHB-0950
|
$10.91 | ||
|
Available to order. Add to View Price |
|||
|
#31
JET, MAIN (#90)
99113-GHB-0900
|
$10.91 | ||
|
Available to order. Add to View Price |
|||
