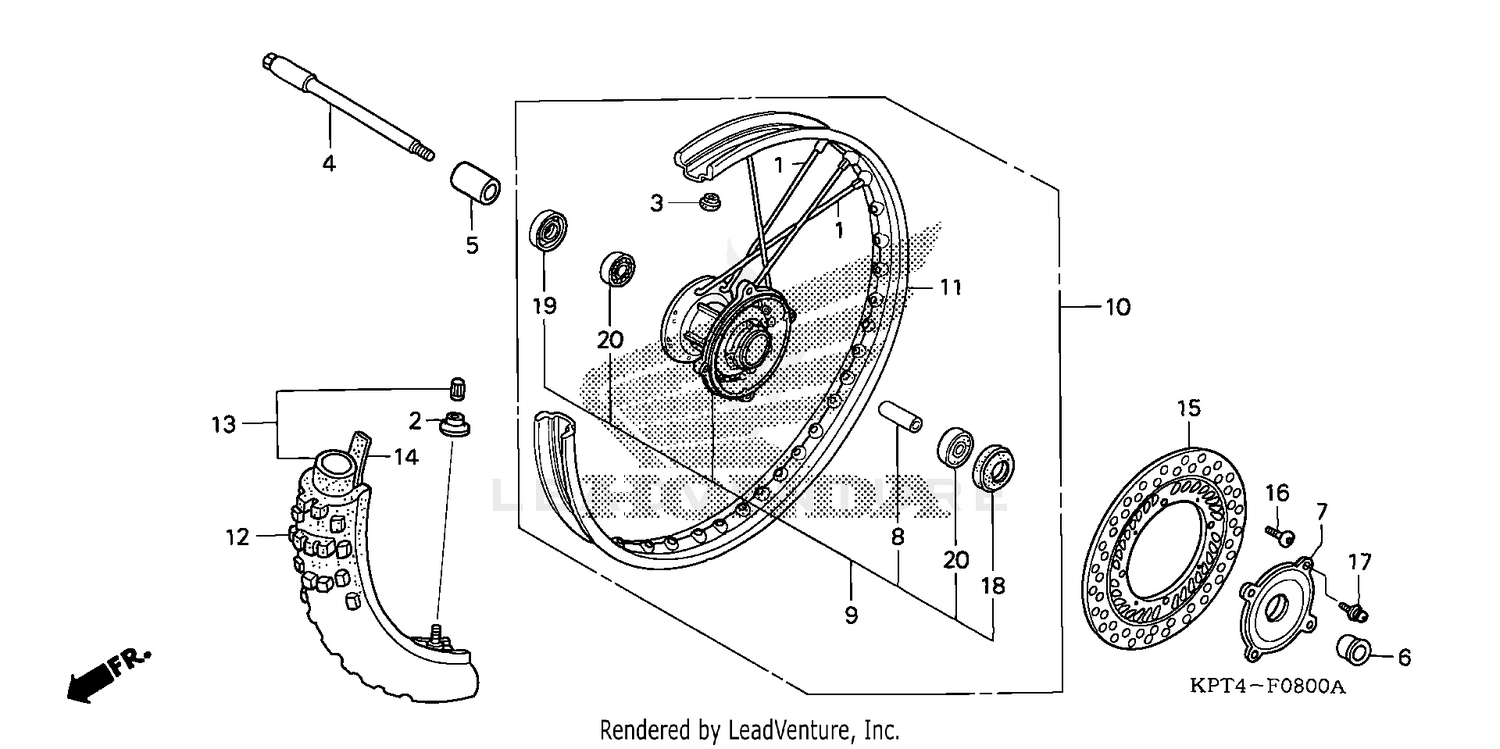

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPOKE SET, FR.
06440-KPT-A00
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, VALVE
42714-KA3-710
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP, RIM HOLE
42717-329-000
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#4
AXLE, FR. WHEEL
44301-KPT-900
|
$34.38 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, FR. WHEEL
44311-KPS-900
|
$6.51 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, FR. WHEEL
44312-KPS-900
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, FR. HUB
44610-KL3-770
|
$14.71 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, FR. AXLE DISTANCE
44620-KPS-900
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#9
HUB SUB-ASSY., FR.
44635-KPT-A00
Superseded by 44635-KPT-900
|
$175.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
WHEEL SET, FR. (COO)
44650-KPT-A01
Superseded by 44650-KPT-305
|
$611.98 | ||
|
Available to order. Add to View Price |
|||
|
#10
WHEEL SET, FR. (COO)
44650-KPT-305
|
$611.98 | ||
|
Unavailable |
|||
|
#11
RIM, FR. WHEEL
44701-KPT-A02
|
$266.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
TIRE, FR.
44711-KPT-901
Superseded by 44711-KPT-903
|
$112.96 | ||
|
Unavailable |
|||
|
#12
TIRE, FR.
44711-KPT-902
Superseded by 44711-KPT-903
|
$112.96 | ||
|
Unavailable |
|||
|
#13
TUBE, TIRE (70/100-19) (PIRELLI)
44712-KPT-901
|
$31.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
FLAP, TIRE (1.40-19) (PIRELLI)
44713-KPT-900
|
$2.71 | ||
|
Unavailable |
|||
|
#15
DISK, FR. BRAKE
45351-KPS-900
|
$149.29 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, DISK (6X17)
90105-KAE-870
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW-WASHER (4X8)
90204-KPS-900
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#18
OIL SEAL (21X37X7) (ARAI)
90755-229-003
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
OIL SEAL (21X37X7) (ARAI)
90755-229-005
Superseded by 90755-229-003
|
$6.35 | ||
|
Unavailable |
|||
|
#19
DUST SEAL (22X50X5) (NOK)
91254-KA3-831
|
$11.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, RADIAL BALL (6202U)
96140-62020-10
|
$13.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, RADIAL BALL (6202U)
91014-KPS-731
Superseded by 96140-62020-10
|
$13.15 | ||
|
Unavailable |
|||
|
#20
BEARING, RADIAL BALL (6202U)
91014-KPS-732
Superseded by 96140-62020-10
|
$13.15 | ||
|
Unavailable |
|||
