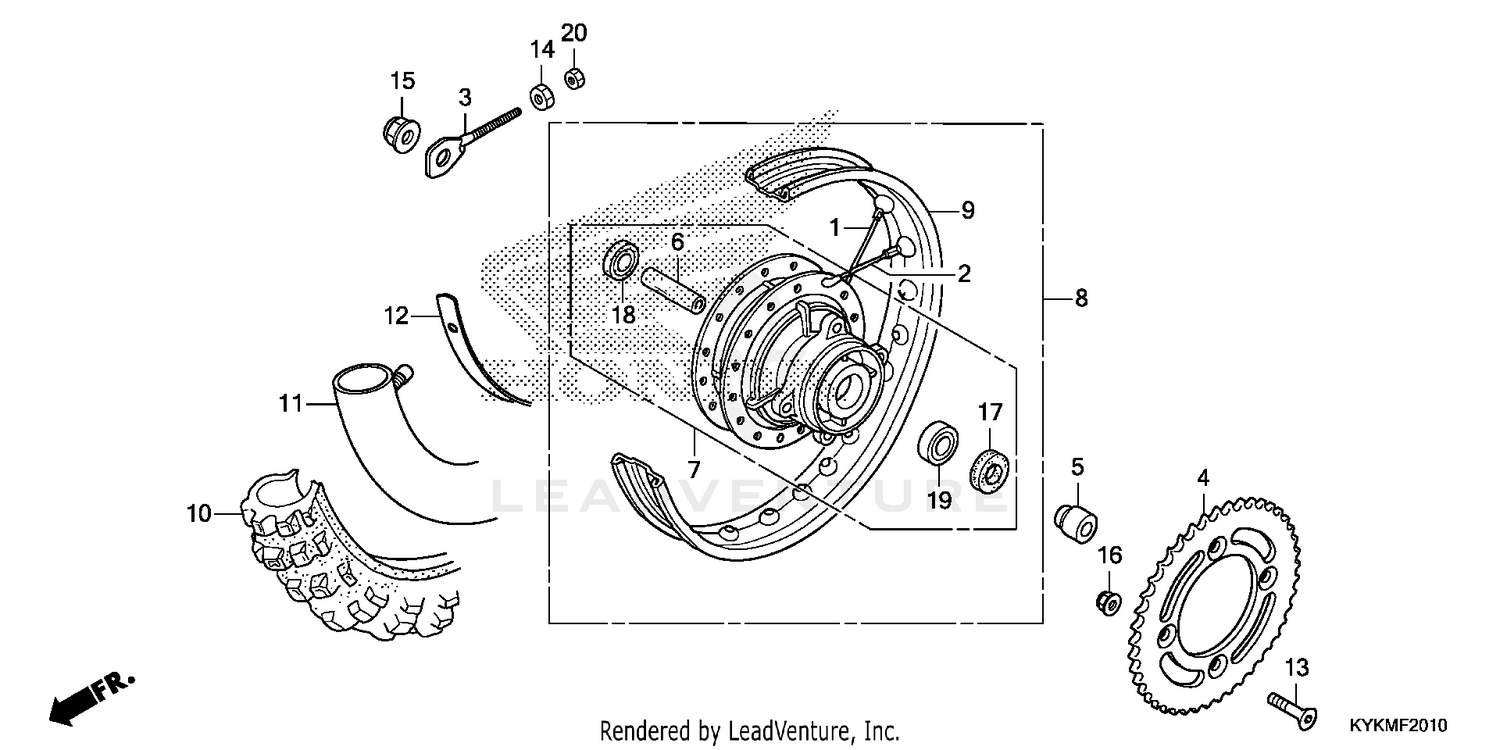

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPOKE SET A, RR. (A11X100.5) (INSIDE)
06420-KYK-910
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPOKE SET B, RR. (A11X100) (OUTSIDE)
06421-KYK-910
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#3
ADJUSTER, CHAIN
40543-KYK-910
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPROCKET, FINAL DRIVEN (38T)
41201-KYK-910
|
$47.07 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, RR. WHEEL SIDE
42311-KYK-910
|
$12.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, RR. AXLE DISTANCE
42620-KYK-910
|
$12.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
HUB SUB-ASSY., RR.
42635-KYK-910
|
$286.47 | ||
|
Available to order. Add to View Price |
|||
|
#8
WHEEL SUB-ASSY., RR. (COO)
42650-KYK-305
|
$449.07 | ||
|
Available to order. Add to View Price |
|||
|
#8
WHEEL SUB-ASSY., RR. (COO)
42650-KYK-910
Superseded by 42650-KYK-305
|
$449.07 | ||
|
Unavailable |
|||
|
#9
RIM, RR. WHEEL (1.60X12)
42701-KYK-910
|
$61.62 | ||
|
Available to order. Add to View Price |
|||
|
#10
TIRE, RR.
42711-KYK-912
|
$109.21 | ||
|
Unavailable |
|||
|
#11
TUBE, TIRE (CST)
42712-KYK-911
|
$15.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
FLAP, TIRE
42713-KYK-911
|
$7.40 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, FLAT (8X31)
90125-KA4-000
|
$3.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
NUT, SPECIAL (6MM)
90302-KBP-900
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
NUT, FLANGE (12MM) (PT)
90306-KYA-601
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, FLANGE (8MM)
90309-KF0-003
Superseded by 90309-428-731
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, FLANGE (M8X1.25) (SELF-LOCK)
90309-428-731
|
$4.20 | ||
|
Unavailable |
|||
|
#17
DUST SEAL (21X37X5.5) (ARAI)
90755-GC4-003
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
DUST SEAL (21X37X5.5) (ARAI)
90755-GC4-005
Superseded by 90755-GC4-003
|
$6.35 | ||
|
Unavailable |
|||
|
#18
BEARING, RADIAL BALL (6201UU)
91051-KYK-911
|
$15.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING, RADIAL BALL (6301UU)
91052-KYK-911
|
$15.67 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, HEX. (6MM)
94001-06080-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
