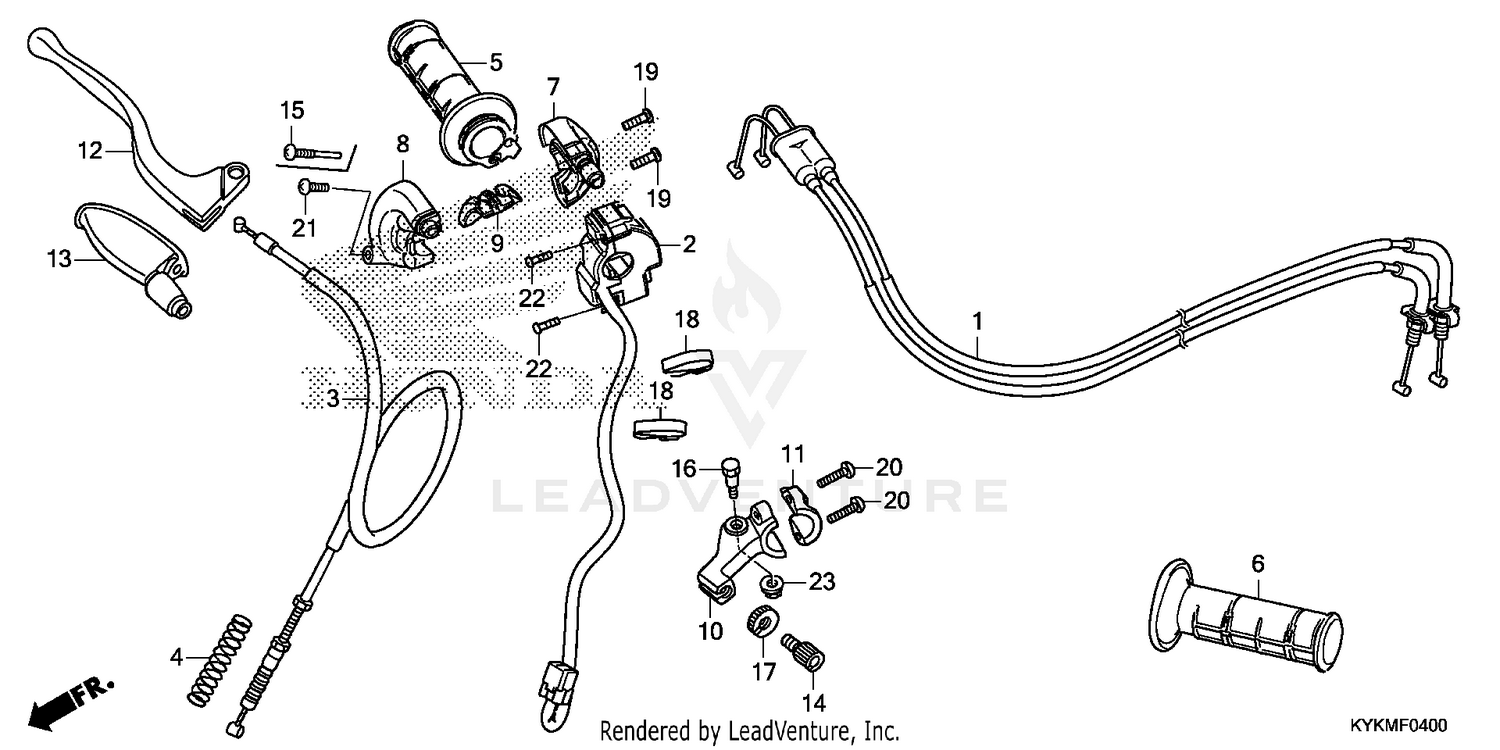

Handle Lever@switch@cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CABLE, THROTTLE
17910-KYK-D11
|
$84.20 | ||
|
Available to order. Add to View Price |
|||
|
#2
SWITCH ASSY., ENGINE STOP
35130-K28-A61
|
$103.00 | ||
|
Available to order. Add to View Price |
|||
|
#3
CABLE, FR. BRAKE
45450-KYK-911
|
$24.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, BRAKE CABLE
45454-KYK-910
|
$6.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
GRIP, THROTTLE
53140-KYK-D10
|
$25.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GRIP, L. HANDLE
53166-KYK-D10
|
$16.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOUSING, THROTTLE (UPPER)
53167-K28-A60
|
$31.64 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOUSING, THROTTLE (LOWER)
53168-KYK-D10
|
$34.82 | ||
|
Available to order. Add to View Price |
|||
|
#9
SLIDER, THROTTLE CABLE
53169-K28-A60
|
$9.13 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, R. HANDLE LEVER
53171-KYK-910
|
$27.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOLDER, LEVER BRACKET
53173-958-000
|
$12.84 | ||
|
Available to order. Add to View Price |
|||
|
#12
LEVER, R. HANDLEBAR
53175-GCF-A20
|
$39.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, R. HANDLEBAR (USED AS L. IN THIS BLOCK)
53176-428-010
|
$12.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, CABLE ADJUSTING
53192-268-000
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, THROTTLE STOPPER
90110-KYK-D10
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HANDLEBAR LEVER PIVOT
90113-429-770
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, FIXING
90321-315-670
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAND, WIRE
90650-KW3-000
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN (5X16) SCREW, PAN (4X20)
93500-05016-0G
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN (5X18)
93500-05018-0A
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PAN (6X6)
93500-06006-0G
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW-WASHER (4X14)
93892-04014-07
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
