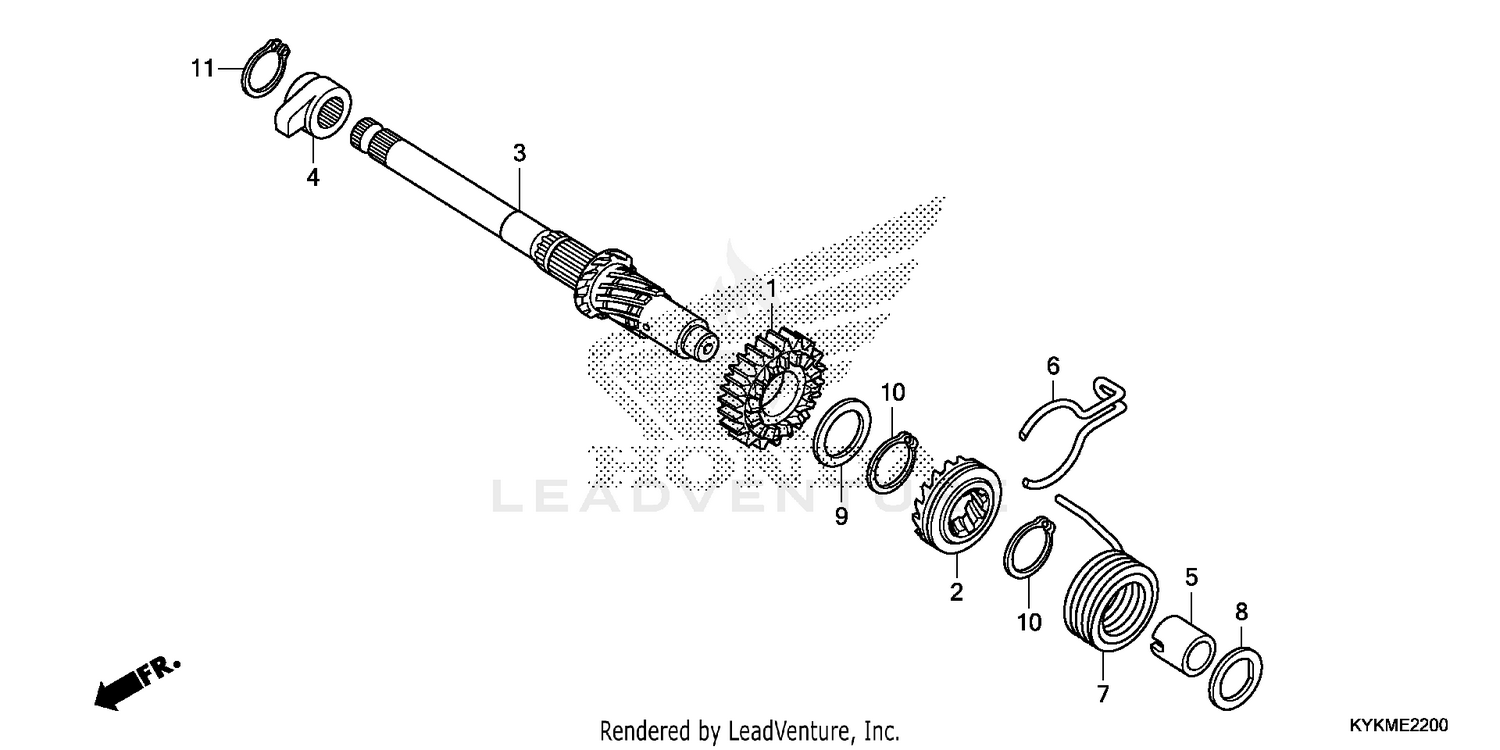

Kick Starter Spindle Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PINION, KICK STARTER (23T)
28211-KWB-600
|
$25.77 | ||
|
Available to order. Add to View Price |
|||
|
#2
RATCHET, STARTER DRIVE
28221-KWB-600
|
$14.13 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPINDLE, KICK STARTER
28251-KWB-600
|
$30.67 | ||
|
Available to order. Add to View Price |
|||
|
#4
RETAINER, KICK SPINDLE
28262-KWB-600
|
$6.69 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, KICK SPRING
28265-KWB-600
|
$4.51 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, FRICTION STARTER GEAR
28271-KWB-600
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, FRICTION STARTER GEAR
28271-KYY-900
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, KICK RETURN
28281-KWB-600
|
$9.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPECIAL (14MM)
90451-KGH-900
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, THRUST (20MM)
90454-107-000
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
SET-RING (20MM)
90605-GFP-900
|
$1.91 | ||
|
Available to order. Add to View Price |
|||
|
#10
SET-RING (20MM)
90605-KYY-900
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#10
SET-RING (20MM)
90605-200-000
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP (OUTER) (16MM)
94510-16000
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
