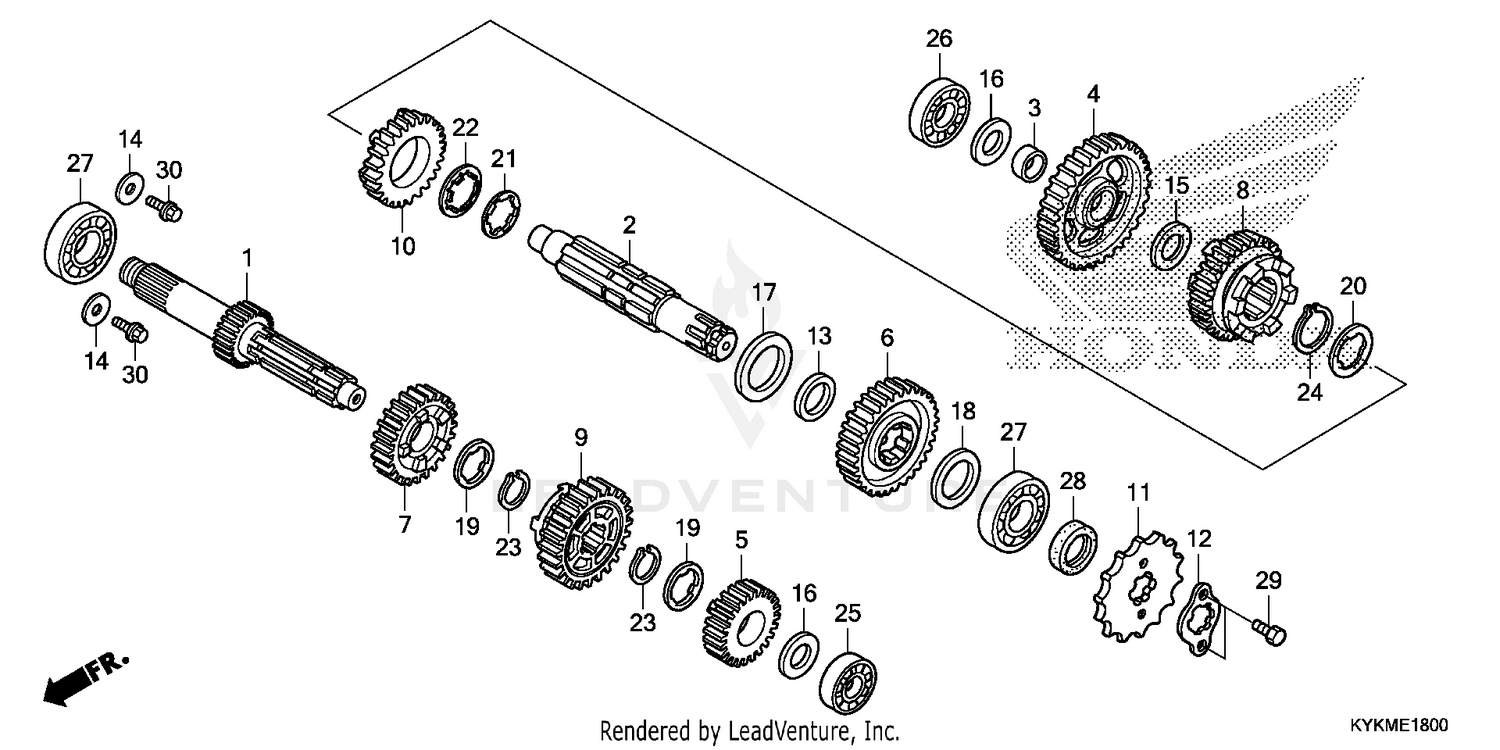

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT (13T)
23211-KZV-J01
|
$106.78 | ||
|
Available to order. Add to View Price |
|||
|
#2
COUNTERSHAFT
23221-KZV-J00
|
$86.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSH (15MM)
23415-KWW-A80
|
$8.26 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, COUNTERSHAFT FIRST (34T)
23421-KZV-J00
|
$64.66 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, MAINSHAFT SECOND (18T)
23431-KZV-J01
|
$52.33 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, COUNTERSHAFT SECOND (28T)
23441-KZV-J00
|
$58.21 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, MAINSHAFT THIRD (22T)
23451-KWW-740
|
$54.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, COUNTERSHAFT THIRD (25T)
23461-KWW-740
|
$67.78 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, MAINSHAFT FOURTH (24T)
23471-KZV-J01
|
$74.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, COUNTERSHAFT FOURTH (22T)
23481-KZV-J00
|
$58.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPROCKET, DRIVE (14T)
23801-KWW-740
|
$14.69 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, FIXING
23802-KVR-C00
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR, LOCK PLATE
23911-KPH-900
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER (6.2X19X2.3)
90407-KWW-740
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, THRUST (15MM)
90412-187-000
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WASHER, SPECIAL (12X23)
90412-KPH-900
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, THRUST (20MM)
90452-413-000
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, THRUST (17MM)
90452-GB4-770
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
WASHER, SPLINE (17MM)
90461-035-000
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPLINE (20MM)
90461-459-010
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPLINE (20MM)
90461-KWB-600
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, LOCK (20MM)
90465-KWB-600
|
$0.53 | ||
|
Available to order. Add to View Price |
|||
|
#23
CIRCLIP (17MM)
90601-KYY-900
|
$3.56 | ||
|
Available to order. Add to View Price |
|||
|
#24
CIRCLIP (20MM)
90602-KYY-900
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING, RADIAL BALL (6001)
91013-KZV-J01
Superseded by 96100-60010-00
|
$9.64 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING, RADIAL BALL (6001)
96100-60010-00
|
$9.64 | ||
|
Unavailable |
|||
|
#26
BEARING, RADIAL BALL (6201)
91014-KZV-J01
|
$18.20 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING, RADIAL BALL (6203) (NA USE ALT:96100-62030-00)
91015-KZV-J01
|
$15.14 | ||
|
Unavailable |
|||
|
#28
OIL SEAL (17X29X5)
91204-KWB-601
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, HEX. (6X10)
92101-06010-0A
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)
95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
