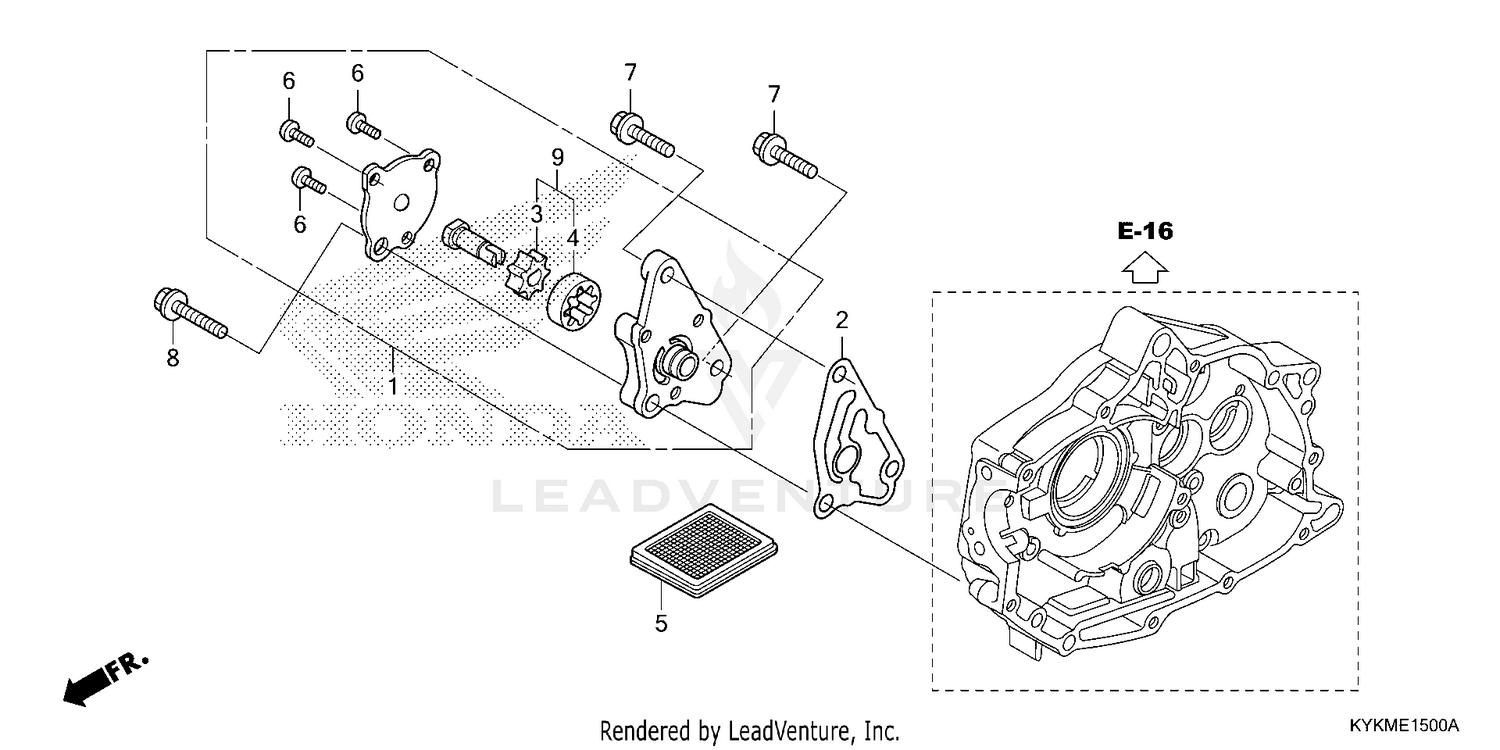

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY., OIL
15100-KVR-C00
|
$49.72 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, OIL PUMP BODY
15119-KWB-600
|
$1.11 | ||
|
Available to order. Add to View Price |
|||
|
#3
ROTOR, OIL PUMP (INNER)
15331-KVR-C00
|
$14.23 | ||
|
Available to order. Add to View Price |
|||
|
#4
ROTOR, OIL PUMP (OUTER)
15332-KVR-C00
|
$16.37 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREEN, OIL FILTER
15421-KSP-910
|
$4.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
SCREW, PAN (5X10)
93500-05010-0A
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE (6X16)
96001-06016-00
|
$1.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT, FLANGE (6X22)
96001-06022-00
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
