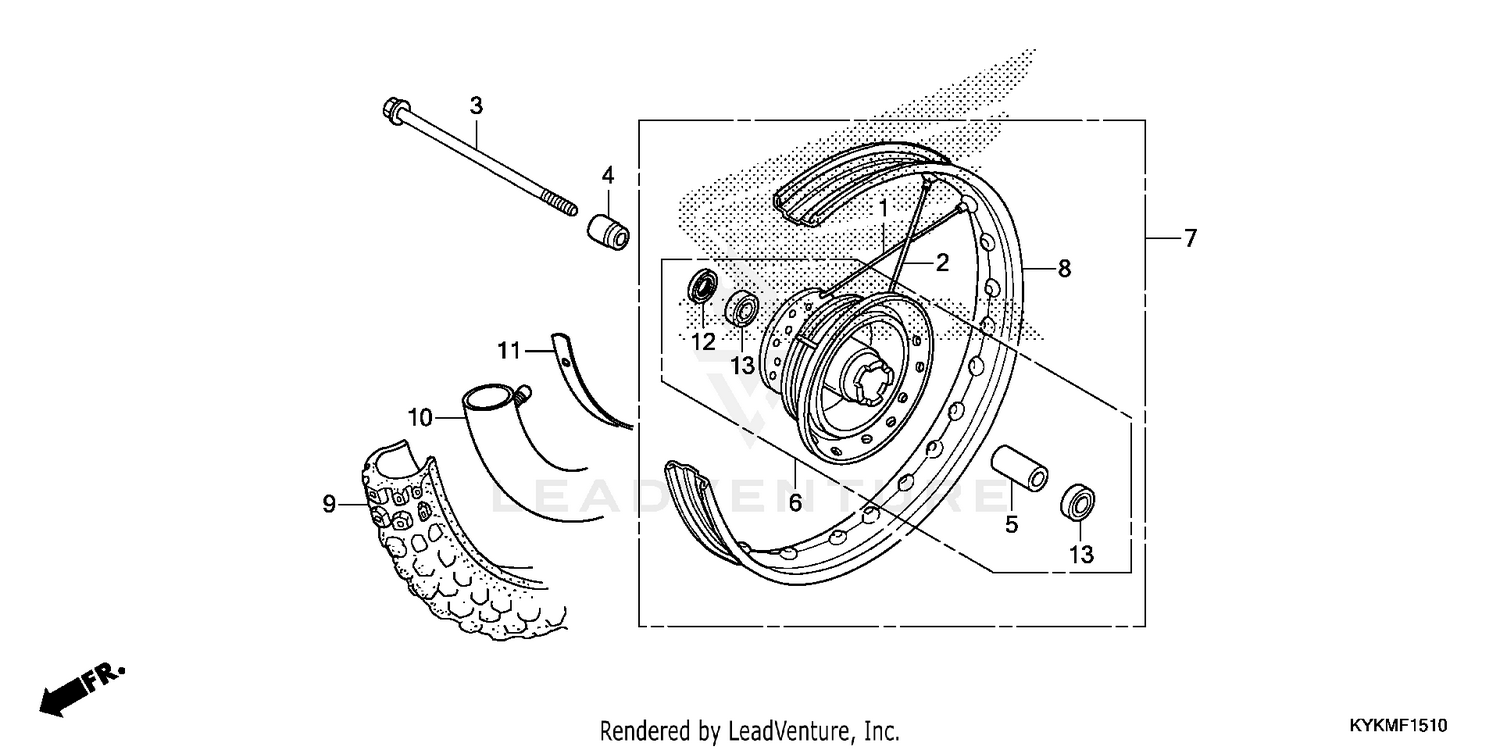

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPOKE SET A, FR. (A11X158) (R. SIDE)
06440-KYK-910
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPOKE SET B, FR. (A11X126) (L. SIDE)
06441-KYK-910
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#3
AXLE, FR. WHEEL
44301-KYK-910
|
$29.71 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, FR. WHEEL SIDE
44311-KYK-910
|
$9.53 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, FR. AXLE DISTANCE
44620-KYK-910
|
$12.27 | ||
|
Available to order. Add to View Price |
|||
|
#6
HUB SUB-ASSY., FR.
44635-KYK-910
|
$224.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
WHEEL SUB-ASSY., FR. (COO)
44650-KYK-305
|
$470.67 | ||
|
Available to order. Add to View Price |
|||
|
#7
WHEEL SUB-ASSY., FR. (COO)
44650-KYK-910
Superseded by 44650-KYK-305
|
$470.67 | ||
|
Unavailable |
|||
|
#8
RIM, FR. WHEEL (1.40X14)
44701-KYK-910
|
$64.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
TIRE, FR.
44711-KYK-911
Superseded by 44711-KYK-912
|
$129.50 | ||
|
Unavailable |
|||
|
#9
TIRE, FR.
44711-KYK-912
|
$129.50 | ||
|
Unavailable |
|||
|
#10
TUBE, TIRE (CST)
44712-KYK-911
|
$15.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
FLAP, TIRE
44713-KYK-911
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#12
DUST SEAL (32X21X5) (NOK)
90745-GC4-701
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
DUST SEAL (32X21X5.5) (ARAI)
90745-GC4-702
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING, RADIAL BALL (6201UU)
91051-KYK-911
|
$15.65 | ||
|
Available to order. Add to View Price |
|||
